Valour Alloys Inc., we carry a full inventory and Supply Super Duplex Steel UNS S32760 Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Super Duplex Steel UNS S32760 flanges are an essential component in various industrial applications that require exceptional corrosion resistance, high strength, and durability. UNS S32760, also known as Super Duplex F60, is a type of super duplex stainless steel that offers superior performance in harsh and corrosive environments. These flanges are designed to meet the demanding requirements of industries such as oil and gas, chemical processing, and offshore drilling.

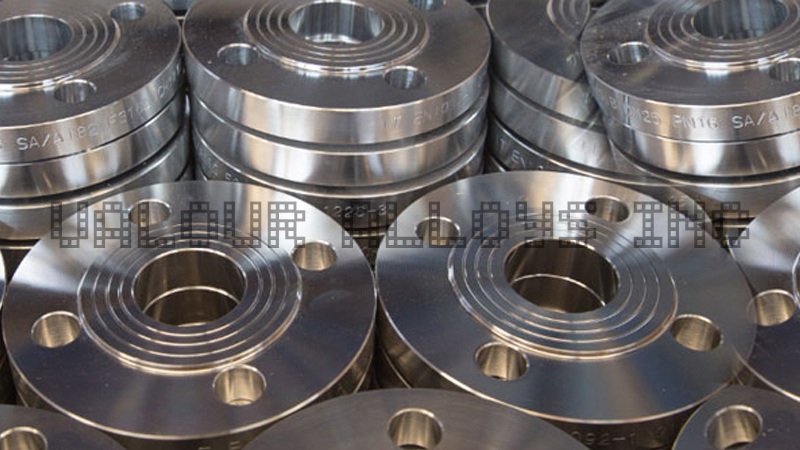

Super Duplex Steel UNS S32760 Flanges Manufacturer

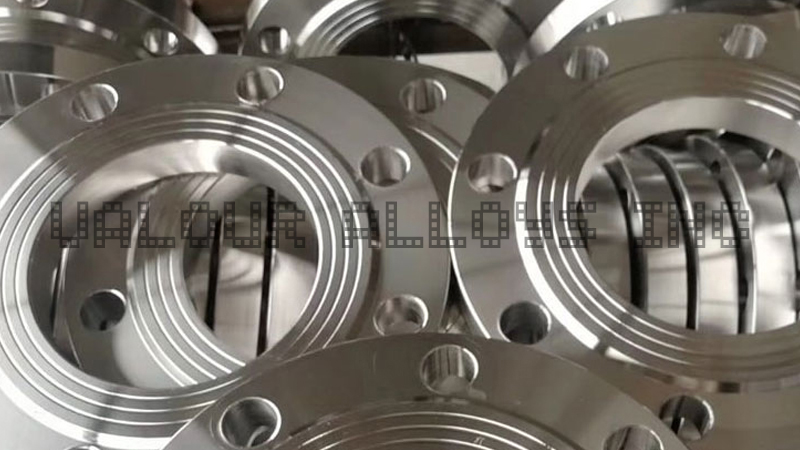

Super Duplex Steel UNS S32760 Flanges Exporter
ASTM A182 Super Duplex S32760 Threaded Flanges, Super Duplex Steel F53 RTJ Flange, Super Duplex S32760 Nippo Flanges, Super Duplex DIN 1.4410 Socket Weld Flanges, SAF 2507 WNRF Flanges Exporter, Super Duplex F55 Blind Flanges, Super Duplex 2507 Weld Neck Flange Dealer in India, Super Duplex 32750.
Material Composition: Super Duplex Steel UNS S32760 is a highly alloyed stainless steel, consisting of elements like chromium, nickel, molybdenum, and nitrogen. The specific composition of this alloy provides it with exceptional resistance to both uniform and localized corrosion, making it suitable for aggressive environments.
Corrosion Resistance: One of the most prominent features of Super Duplex Steel UNS S32760 is its outstanding corrosion resistance. It can withstand the effects of various corrosive agents, including acids, chlorides, and seawater. This makes it an ideal choice for applications in marine environments and chemical processing plants.
High Strength: UNS S32760 offers excellent mechanical properties, including high tensile strength and good ductility. This combination of strength and toughness makes it suitable for applications that require both load-bearing capacity and resistance to impact and stress.
Duplex Microstructure: Super Duplex Steel has a dual-phase microstructure, comprising both austenite and ferrite phases. This microstructure contributes to its enhanced strength and corrosion resistance, allowing it to outperform standard austenitic stainless steels.
Applications: Super Duplex Steel UNS S32760 flanges are used in various critical applications, including offshore oil and gas production, chemical processing, desalination plants, and pulp and paper industries. These flanges are chosen for their reliability and longevity in harsh environments.
Flange Types: UNS S32760 flanges are available in different types, including slip-on, weld neck, blind, socket weld, and threaded flanges, among others. The choice of flange type depends on the specific requirements of the application.
Standards and Specifications: These flanges are manufactured to meet various international standards and specifications, ensuring that they adhere to quality and safety requirements. Common standards include ASTM A182, ASME B16.5, and ASME B16.47.
Super Duplex Steel UNS S32760 Flanges are critical components in industries that demand exceptional corrosion resistance, strength, and durability. They offer reliable performance in aggressive environments, making them a preferred choice for a wide range of applications where the integrity of the system is crucial.
Super Duplex Steel UNS S32760 Flanges Range
Duplex Steel Flanges Specification | ASTM A182 / ASME SA182 |
Duplex Steel Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
Duplex Steel Flanges Other Grades | UNS S32205, UNS S31803, UNS S32750, UNS S32760, SAF® 2205, SAF® 2507, FERRINOX® 225, AMINOX® 225, ZERON® 100 |
Duplex Steel Flanges Outer Diameter | 1/2" NB TO 64" NB |
Duplex Steel Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Duplex Steel Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
Duplex Steel Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Duplex Steel Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
Duplex Steel Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flangec, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
Duplex Steel Flanges Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
Duplex Steel Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Duplex Steel Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
Duplex Steel Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / Pressure Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Duplex Steel Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Super Duplex Steel UNS S32760 Flanges
Super Duplex Steel UNS S32760 Slip-On Flanges | Super Duplex Steel UNS S32760 Threaded Flanges |
Super Duplex Steel UNS S32760 Weld Neck Flanges | Super Duplex Steel UNS S32760 Socket Weld Flanges |
Super Duplex Steel UNS S32760 Blind Flanges | Super Duplex Steel UNS S32760 Reducing Flanges |
Super Duplex Steel UNS S32760 Lap Joint Flanges | Super Duplex Steel UNS S32760 Plate Flanges |
Super Duplex Steel UNS S32760 Orifice Flanges | Super Duplex Steel UNS S32760 Forged Flanges |
Super Duplex Steel UNS S32760 Ring Type Joint Flanges | Super Duplex Steel UNS S32760 Square Flanges |
Types Of Super Duplex Steel UNS S32760
Chemical Composition of Super Duplex Steel UNS S32760 Flanges
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties of Super Duplex Steel UNS S32760 Flanges
Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
S32750 / S32760 | 7.8 | 0.281 | 1350 | 2460 |
Equivalent Grade of Super Duplex Steel UNS S32760 Flanges
STANDARD | WERKSTOFF NR. | UNS |
Super Duplex 2507 | 1.4410 | S32750 / S32760 |
Super Duplex Steel UNS S32760 Flanges Weight Chart
Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Other Available Products Of Super Duplex Steel UNS S32760 Flanges
Super Duplex Steel Flanges | Super Duplex Steel EN 1092-1 Flanges |
Super Duplex Steel BS 4504 Flanges | Super Duplex Steel 2507 Forged Flanges |
Super Duplex Steel UNS S32750 Flanges | Super Duplex Steel S32760 Slip on Flanges |
Super Duplex Steel Gr. F51 Flat Flange Suppliers | ANSI 2507 Super Duplex Steel Blind Flange |
Super Duplex Steel Gr. F52 Weld Neck Flanges Dealer | Super Duplex Steel Socket weld Flanges Exporter |
Super Duplex Steel F53 Long Weld Neck Flanges Stockholder | Super Duplex F54 Threaded Flanges Distributors |
Super Duplex Steel Grade F55 Reducing Flanges | Super Duplex Steel F56 Ring Type Joint Flanges Manufacturer |
Super Duplex Steel DIN 1.4410 Orifice Flange | Super Duplex Steel S32760 Spectacle Blind Flanges |
Super Duplex Steel UNS S32760 WNRF Flange | Super Duplex 2507 SORF Flanges |
ANSI B16.5 Super Duplex Steel F57 RTJ Flanges | Super Duplex Steel Screwed Flanges Stockist |
ASTM A182 Super Duplex Steel F59 Lap Joint Flanges | ASME SA182 Super Duplex Steel BLRF Flange |
Super Duplex Steel Gr. F60 Raised Face Flanges | 2507 Super Duplex Steel Nipoflange |
A182 Super Duplex Steel S32760 Square Flanges | ASME SA182M Super Duplex Steel S32750 SWRF Flange |
Super Duplex Steel F61 Tongue & Groove Flanges | Super Duplex Steel S32750 Male & Female Flanges |
Super Duplex Steel S32760 DIN Flanges | Super Duplex Steel ASME B16.5 Flanges |
Super Duplex Steel UNS S32760 Flanges Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We Super Duplex Steel UNS S32760 Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Super Duplex Steel UNS S32760 Flanges all types of Such as Super Duplex Steel UNS S32750 Flanges,Super Duplex Steel UNS S32760 Flanges,Super Duplex Steel F53 Flanges,Super Duplex Steel F55 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our Super Duplex Steel UNS S32760 Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Super Duplex Steel UNS S32760 Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
