ASTM A333 Grade 6 Pipe, ASME SA333 Grade C Pipe, A333 Gr. 6 Pipe, ASTM A333Grade 6 Seamless Pipe, ASTM A333 Grade 6 Pipe, A333 Grade 6 CS Pipe
Manufacturing Carbon Steel Pipe in ASTM A333 Grade 6. CS ASTM A333 GR.6 Pipe, IBR Approved Dealer, Distributor, Exporter, Supplier in India.
ASTM A333 Grade 6 is a standard specification for seamless and welded steel pipe designed for low-temperature service. This grade of pipe is primarily used in applications where low-temperature toughness and impact resistance are critical, such as in the oil and gas industry, petrochemical plants, power generation, and various industrial processes. Here's an introduction to ASTM A333 Grade 6 Pipe.
Valour Alloys Inc., we carry a full inventory of ASTM A333 Grade 6 Pipe Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. Carbon Steel Seamless Pipe ASTM A333 Grade 6 Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in ASTM A333 Grade 6 Pipe with years of Experience in Manufacturing Carbon Steel Seamless Pipes and Tube. we offer high quality, lower cost but the best service. As a result to that our Carbon Stee Seamless Pipes and Tubes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

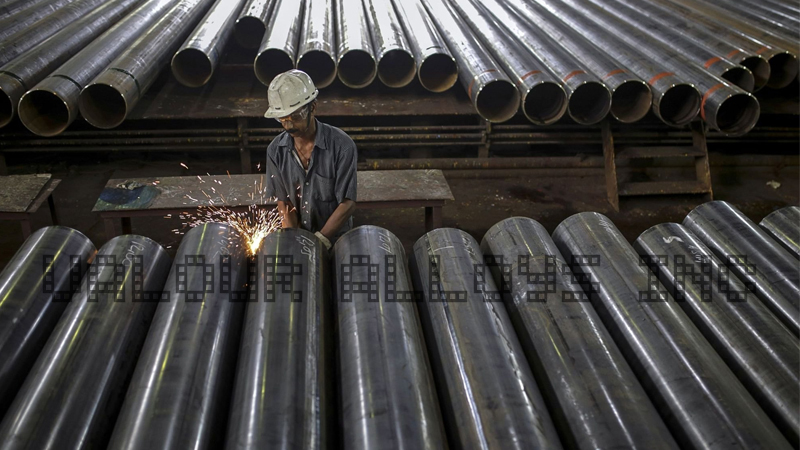

ASTM A333 Grade 6 Seamless Pipe

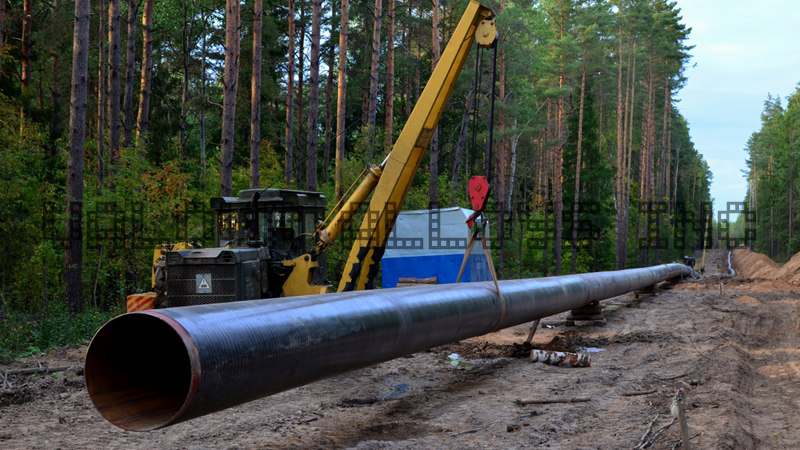

ASTM A333 Grade 6 Welded Pipe
We Supply Carbon Steel Pipes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
ASTM A333 Welded Pipes Manufacturer, ASTM A A333 GR. B Square Pipes stockist, ASTM A333 Polished Pipes, ASTM A A333 GR. B Round Tubes Exporter
1. Purpose and Application:
ASTM A333 Grade 6 Pipe is specifically designed for use in low-temperature environments where the material must maintain its mechanical properties and fracture toughness at sub-zero temperatures.
It is widely used for transporting fluids and gases at extremely cold temperatures, typically below -50°F (-45°C).
2. Material Composition:
ASTM A333 Grade 6 pipes are made from carbon-manganese steel with a minimum nominal yield strength of 35,000 psi (240 MPa).
The composition of Grade 6 steel includes low carbon content, which enhances its low-temperature properties, and elements such as phosphorus, sulfur, and silicon within specified limits.
3. Manufacturing Processes:
These pipes can be manufactured using either seamless or welded methods. Seamless pipes are produced by piercing a solid steel billet, while welded pipes are made by welding steel plates together.
The manufacturing process ensures that the pipes have the required properties to withstand low-temperature conditions without becoming brittle.
4. Mechanical Properties:
ASTM A333 Grade 6 pipes exhibit excellent low-temperature toughness and impact resistance.
The minimum tensile strength of Grade 6 steel is 60,000 psi (415 MPa), and it has a minimum yield strength of 35,000 psi (240 MPa).
The elongation and impact properties of the material are tested at low temperatures to ensure its suitability for low-temperature service.
5. Sizes and Dimensions:
These pipes are available in a wide range of sizes, from small nominal diameters to larger ones, typically ranging from 1/2 inch to 36 inches in diameter.
Wall thicknesses vary to meet the specific requirements of different applications.
6. Testing and Certification:
ASTM A333 Grade 6 pipes are subjected to various tests to ensure they meet the required standards and specifications. These tests may include chemical analysis, mechanical testing, and non-destructive testing methods.
Pipes that meet the specified requirements are certified accordingly.
7. Usage Considerations:
When using ASTM A333 Grade 6 Pipe, it's important to consider the temperature and service conditions to ensure the material's performance and safety.
Proper welding procedures and techniques should be followed to maintain the integrity of the welds, especially in cold environments.
ASTM A333 Grade 6 Pipe is a widely used steel pipe specification designed for low-temperature service. Its unique properties make it suitable for a range of applications where the material must maintain its strength and toughness even in extremely cold conditions. When selecting or working with Grade 6 pipes, adherence to relevant standards and good engineering practices is essential to ensure the safety and reliability of the system.
ASTM A333 Grade 6 Pipe Range
ASTM A333 Grade 6 Pipe Outer Diameter Size | 1/4" NB To 30" NB (Nominal Bore Size) |
ASTM A333 Grade 6 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
ASTM A333 Grade 6 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
ASTM A333 Grade 6 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
ASTM A333 Grade 6 Pipe Specification | ASME SA/ASTM A106 / ASTM A333 / BS1239 / BS3509 / IS3589 / EN 10216-2 / ASTM A500 Etc. |
ASTM A333 Grade 6 Pipe Grades | ASTM A106 GRADE A / B / C, ASTM A333 GRADE 1 / 3 / 6, IS1239 Light / Medium / Heavy, IS3589 FE330/FE410, EN 10216-2 P235GH / P265GH, ASTM A500 GRADE A / B / C Etc. |
ASTM A333 Grade 6 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
ASTM A333 Grade 6 Pipe Type | Seamless - Hot Rolled / Cold Drawn |
ASTM A333 Grade 6 Pipe Delivery Conditions | As Rolled, Cold Drawn, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
ASTM A333 Grade 6 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
ASTM A333 Grade 6 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
ASTM A333 Grade 6 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
ASTM A333 Grade 6 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
ASTM A333 Grade 6 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A333 Grade 6 Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
ASTM A333 Grade 6 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC. |
Chemical Composition of ASTM A333 Grade 6 Pipe
Composition, % | |||
Element | Grade 1 | Grade 3 | Grade 6 |
Carbon, max | 0.30 | 0.19 | 0.30 |
Manganese | 0.40 – 1.06 | 0.31 – 0.64 | 0.29 – 1.06 |
Phosphorous, max | 0.025 | 0.025 | 0.025 |
Sulfur, max | 0.025 | 0.025 | 0.025 |
Silicon | 3.18 – 3.82 | 0.18 -0.37 | 0.10 min |
Nickel | - | 3.18 – 3.82 | - |
For each reduction of 0.01% carbon below 0.30%, an increase of 0.05% manganese above 1.06% would be permitted to a maximum of 1.35% manganese. When Grade 6 is ordered under this specification, supplying an alloy grade that specifically requires the addition of any element other than those listed for the ordered grade is not permitted. However, the addition of elements required for the deoxidation of the steel is permitted. |
Mechanical Properties of ASTM A333 Grade 6 Pipe
Grade 1 | Grade 3 | Grade 6 | |||||
psi | MPa | psi | MPa | psi | MPa | ||
Tensile Strength, min | 55,000 | 380 | 65,000 | 450 | 60,000 | 415 | |
Yield Strength, min | 30,000 | 205 | 35,000 | 240 | 35,000 | 240 | |
Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse | ||
Elongation in 2 in. or 50 mm, (or 4D), min, %: | |||||||
Basic minimum elongation for walls 5/16 in. [8 mm] and over in thickness, strip tests, and for all small sizes tested in full section | 35 | 35 | 30 | 20 | 30 | 16.5 | |
When the standard round 2-in. or 50-mm gage length or proportionally smaller size test specimen with the gage length equal to 4D (4 times the diameter) is used | 28 | 20 | 22 | 14 | 22 | 12 | |
For strip tests, a deduction for each 1/32in. [0.8 mm] decrease in wall thickness below 5/16 in. [8 mm] from the basic minimum elongation of the following percentage | 1.75 | 1.25 | 1.50 | 1.00 | 1.50 | 1.00 |
Impact Requirements of ASTM A333 Grade 6 Pipes
For Grades 1, 3 and 6, the notched-bar impact properties of each set of three impact specimens, including specimens for the welded joint in welded pipe with wall thicknesses of 0.120 in. [3 mm] and larger, shall not be less than the values prescribed:
Size of Specimen, min | Minimum Average Notched Bar Impact Value of Each Set of Three Specimens | Minimum Notched Bar Impact Value of One Specimen Only of a Set | Impact Temperature | |||||
ft-lbf | J | ft-lbf | J | Grade | Min Impact Test Temp |
|||
10 by 10 | 13 | 18 | 10 | 14 | F | C | ||
10 by 7.5 | 10 | 14 | 8 | 11 | 1 | -50 | -45 | |
10 by 6.67 | 9 | 12 | 7 | 9 | 3 | -150 | -100 | |
10 by 5 | 7 | 9 | 5 | 7 | 6 | -50 | -45 | |
10 by 3.33 | 5 | 7 | 3 | 4 | ||||
10 by 2.5 | 4 | 5 | 3 | 4 |
Other Available Products of ASTM A333 Grade 6 Pipe
ASTM A333 Carbon Steel Round Pipe | ASTM A333 Carbon Steel Dairy Pipe |
ASTM A333 CS Exhaust Pipe | ASTM A333 Carbon Steel Flexible Pipe |
ASTM A333 Carbon Steel Round Pipe | ASTM A53 Carbon Steel Rectangular Pipe |
ASTM A333 Carbon Steel Round Pipe | ASTM A333 Carbon Steel Schedule 40 Pipe |
ASTM A106 Carbon Steel Sch 10 Pipe | ASTM A333 CS Schedule 5 Pipe |
ASTM A333 Carbon Steel Schedule 80 Pipe | ASTM A333 CS Threaded Pipe |
ASTM A333 Carbon Steel Seamless Pipe | ASTM A53 Carbon Steel Rectangular Pipes |
ASTM A333 Carbon Steel Round Pipes | ASTM A333 CS Rectangular Pipe |
ASTM A333 Carbon Steel Rectangular Pipes | ASTM A333 CS Structural Carbon Pipe |
ASTM A333 Grade 6 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We ASTM A333 Grade 6 Pipe with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At ASTM A333 Grade 6 Pipe all types of Such as Carbon Steel ERW Pipes, Carbon Steel Welded Pipes, Carbon Steel Fabricated Pipes, Carbon Steel ASTM A335 Pipes, Carbon Steel Seamless Pipes, Carbon Steel LSAW Pipes from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our ASTM A333 Grade 6 Pipe is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A333 Grade 6 Pipe are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
