EN10216-2 P235GH Pipe, EN10216-2 P235GH Pipe, P235GH Pipe, EN10216-2 P235GH Seamless Pipe, EN10216-2 P235GH Pressure Pipe, EN10216-2 P235GH CS Pipe
Manufacturing Carbon Steel Pipe in EN10216-2 P235GH. CS EN10216-2 P235GH Pipe, IBR Approved Dealer, Distributor, Exporter, Supplier in India.
Carbon steel pipes play a pivotal role in various industrial applications, and one particular specification that stands out is EN 10216-2 P235GH. This specification defines the characteristics and requirements of seamless, non-alloy and alloy steel pipes for elevated temperature service. Here, we introduce you to the key aspects of Carbon Steel Pipe EN 10216-2 P235GH.
Valour Alloys Inc., we carry a full inventory of EN 10216-2 P265GH Pipe Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. Carbon Steel Seamless Pipe EN 10216-2 P265GH can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in EN 10216-2 P265GH with years of Experience in Manufacturing Carbon Steel Seamless Pipes. we offer high quality, lower cost but the best service. As a result to that our Carbon Stee Seamless Pipes and Tubes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

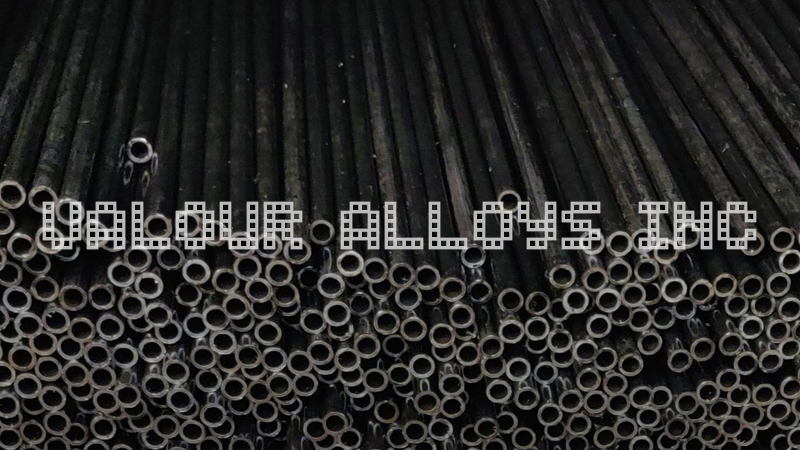

EN 10216-2 P235GH Seamless Pipe

EN 10216-2 P235GH Seamless Pipe
We Supply Carbon Steel Pipes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
EN 10216-2 P265GH Welded Pipes Manufacturer, EN 10216-2 P265GH Square Pipes stockist, EN 10216-2 P265GH Polished Pipes, EN 10216-2 P265GH GR. B Round Tubes Exporter
1. Material Composition: P235GH is a non-alloy quality steel grade defined in the EN 10216-2 standard. It is primarily composed of carbon, manganese, silicon, and phosphorus, with trace amounts of sulfur and other elements. The controlled composition ensures its suitability for high-temperature applications.
2. Seamless Construction: EN 10216-2 P235GH pipes are manufactured using a seamless process, which means they are free from any longitudinal or transverse welds. This construction method not only enhances their strength but also ensures a smooth inner surface, reducing friction and resistance in fluid transportation.
3. Elevated Temperature Service: These pipes are specifically designed for use in applications involving elevated temperatures. They are commonly utilized in industries such as power generation, petrochemical, and boiler manufacturing, where the material needs to withstand high heat and pressure conditions.
4. Mechanical Properties: P235GH exhibits good mechanical properties, making it suitable for the intended applications. It has a minimum yield strength of 235 megapascals (MPa) and a minimum tensile strength of 360 to 500 MPa, depending on the wall thickness of the pipe.
5. Versatile Applications: Due to its elevated-temperature capabilities, P235GH pipes find application in a range of industrial processes. They are commonly used in the construction of boilers, heat exchangers, and pressure vessels, where the ability to handle high-pressure steam or hot gases is essential.
6. Compliance with Standards: EN 10216-2 P235GH pipes conform to European standards, ensuring their quality, performance, and safety. They are manufactured in accordance with stringent production and testing requirements, making them reliable for critical applications.
7. Corrosion Resistance: While P235GH is not a corrosion-resistant material like stainless steel, it can be used in environments where corrosion is not a primary concern. Proper maintenance and protective coatings can extend the lifespan of these pipes in less aggressive environments.
Carbon Steel Pipe EN 10216-2 P235GH is a seamless, non-alloy steel pipe designed for elevated temperature service. Its composition, mechanical properties, and compliance with European standards make it a reliable choice for industries where the ability to withstand high temperatures and pressures is crucial. Whether in boiler manufacturing, power generation, or other industrial applications, P235GH plays a vital role in ensuring efficient and safe operations.
EN 10216-2 P235GH Pipe Range
EN 10216-2 P235GH Pipe Outer Diameter Size | 1/4" NB To 30" NB (Nominal Bore Size) |
EN 10216-2 P235GH Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
EN 10216-2 P235GH Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
EN 10216-2 P235GH Pipe Ends | Plain Ends / Beveled Ends / Coupling |
EN 10216-2 P235GH Pipe Specification | ASME SA/ASTM A106 / ASTM A333 / BS1239 / BS3509 / IS3589 / EN 10216-2 / ASTM A500 Etc. |
EN 10216-2 P235GH Pipe Grades | ASTM A106 GRADE A / B / C, ASTM A333 GRADE 1 / 3 / 6, IS1239 Light / Medium / Heavy, IS3589 FE330/FE410, EN 10216-2 P235GH / P265GH, ASTM A500 GRADE A / B / C Etc. |
EN 10216-2 P235GH Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
EN 10216-2 P235GH Pipe Type | Seamless - Hot Rolled / Cold Drawn |
EN 10216-2 P235GH Pipe Delivery Conditions | As Rolled, Cold Drawn, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
EN 10216-2 P235GH Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
EN 10216-2 P235GH Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
EN 10216-2 P235GH Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
EN 10216-2 P235GH Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
EN 10216-2 P235GH Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
EN 10216-2 P235GH Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
EN 10216-2 P235GH Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC. |
Chemical Composition of EN 10216-2 P235GH Pipe
Steel grades | EN10216-2 CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
P195GH | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 | ≥ 0.020 | 0.30 | 0.010 | 0.040 | 0.02 | 0.70 |
P235GH | 0.16 | 0.35 | 1,20 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 | ≥ 0.020 | 0.30 | 0.010 | 0.040 | 0.02 | 0.70 |
P265GH | 0.20 | 0.40 | 1,40 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 | ≥ 0.020 | 0.30 | 0.010 | 0.040 | 0.02 | 0.70 |
16Mo3 | 0.12- 0.20 | 0.35 | 0.40- 0.70 | 0.025 | 0.020 | 0.30 | 0.25- 0.35 | 0.30 | ≥ 0.020 | 0.30 | - | - | - | - |
14MoV6-3 | 0.10- 0.15 | 0.15- 0.35 | 0.40- 0.70 | 0.025 | 0.020 | 0.30- 0.60 | 0.50- 0.70 | 0.30 | ≥ 0.020 | 0.30 | - | 0.22-0.28 | - | - |
13CrMo4-5 | 0.15 | 0.50- 1,00 | 0.30- 0.60 | 0.025 | 0.020 | 1,00- 1,50 | 0.45- 0.65 | 0.30 | ≥ 0.020 | 0.30 | - | - | - | - |
10CrMo9-10 | 0.10- 0.17 | 0.35 | 0.40- 0.70 | 0.025 | 0.020 | 0.70- 1,15 | 0.40- 0.60 | 0.30 | ≥ 0.020 | 0.30 | - | - | - | - |
Mechanical Properties of EN 10216-2 P235GH Pipe
EN 10216-2 Mechanical properties | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | |||||||||||
Upper yield limit or yield strength Re or R0.2 for wall thickness of t min | Tensile strength Rm |
Elongation A min% |
Minimum energy average absorbed KVJ at the temperature of 0°C | ||||||||||
T≤16 | 16<T≤40 | 40<t≤60 | 60<T≤60 | I | T | ||||||||
MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
P195GH | 195 | - | - | - | 320- 440 | 27 | 25 | - | 40 | 28 | - | 27 | |
P235GH | 235 | 225 | 215 | - | 360- 500 | 25 | 23 | - | 40 | 28 | - | 27 | |
P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 | |
16Mo3 | 280 | 270 | 260 | - | 450- 600 | 22 | 20 | 40 | - | - | 27 | - | |
14MoV6-3 | 320 | 320 | 310 | - | 460- 610 | 20 | 18 | 40 | - | - | 27 | - | |
13CrMo4-5 | 290 | 290 | 280 | - | 440- 590 | 22 | 20 | 40 | - | - | 27 | - | |
10CrMo9-10 | 280 | 280 | 270 | - | 480- 630 | 22 | 20 | 40 | - | - | 27 | - |
Mechanical Properties of EN 10216-2 P235GH Pipe
Steel Grade | Steel Standard | Steel Grade | Steel Standard | Steel Grade |
---|---|---|---|---|
P235GH | DIN 17175 | St 35.8 | ||
P265GH | DIN 17175 | St 45.8 | ||
16Mo3 | DIN 17175 | 15Mo3 | ||
10CrMo55 | 15Mo3 | BS 3606 | 621 | |
13CrMo45 | DIN 17175 | BS 3606 | 620 | |
10CrMo910 | DIN 17175 | 13CrMo44 | BS 3606 | 622 |
25CrMo4 | 10CrMo910 | |||
P355N | DIN 17179 | StE 355 | ||
P355NH | DIN 17179 | TStE 355 | ||
P355NL1 | DIN 17179 | WStE 460 | ||
P460N | DIN 17179 | TStE 460 | ||
P460NH | DIN 17179 | WStE 460 | ||
P460NL1 | DIN 17179 | TStE 460 |
Other Available Products of EN 10216-2 P235GH Pipe
EN 10216-2 P235GH Carbon Steel Round Pipe | EN 10216-2 P235GH Carbon Steel Dairy Pipe |
EN 10216-2 P235GH CS Exhaust Pipe | EN 10216-2 P235GH Carbon Steel Flexible Pipe |
EN 10216-2 P235GH Carbon Steel Round Pipe | EN 10216-2 P235GH Carbon Steel Rectangular Pipe |
EN 10216-2 P235GH Carbon Steel Round Pipe | EN 10216-2 P235GH Carbon Steel Schedule 40 Pipe |
EN 10216-2 P235GH Carbon Steel Sch 10 Pipe | EN 10216-2 P235GH CS Schedule 5 Pipe |
EN 10216-2 P235GH Carbon Steel Schedule 80 Pipe | EN 10216-2 P235GH CS Threaded Pipe |
EN 10216-2 P235GH Carbon Steel Seamless Pipe | EN 10216-2 P235GH Carbon Steel Rectangular Pipes |
EN 10216-2 P235GH Carbon Steel Round Pipes | EN 10216-2 P235GH CS Rectangular Pipe |
EN 10216-2 P235GH Carbon Steel Rectangular Pipes | EN 10216-2 P235GH CS Structural Carbon Pipe |
EN 10216-2 P235GH Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We EN 10216-2 P265GH with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At EN 10216-2 P265GH all types of Such as Carbon Steel ERW Pipes, Carbon Steel Welded Pipes, Carbon Steel Fabricated Pipes, Carbon Steel ASTM A335 Pipes, Carbon Steel Seamless Pipes, Carbon Steel LSAW Pipes from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our EN 10216-2 P265GH is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All EN 10216-2 P265GH are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying EN 10216-2 P235GH Pipe to Countries -
We Export EN 10216-2 P235GH Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing EN 10216-2 P235GH Pipe to Cities -
We Export EN 10216-2 P235GH Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
