ASTM A106 Grade A Pipe, ASME SA106 Grade A Pipe, A106 Gr. A Pipe, ASTM A106 Grade A Seamless Pipe, ASTM A106 Grade A Pipe, A106 Grade A CS Pipe

Manufacturing Carbon Steel Pipe in ASTM A106 Grade A. CS ASTM A106 GR.A Pipe, IBR Approved Dealer, Distributor, Exporter, Supplier in India.

ASTM A106 Grade A Pipe is a seamless carbon steel pipe specification commonly used in high-temperature service and pressure applications. This specification is part of the ASTM A106 standard, which covers seamless carbon steel pipes for various industrial purposes. ASTM A106 Grade A is one of the several grades within this standard, each denoted by a letter (A, B, C) and representing different levels of mechanical properties and suitability for specific applications.

Valour Alloys Inc., we carry a full inventory of ASTM A106 Grade A Pipe Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. Carbon Steel Seamless Pipe ASTM A106 Grade A Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

We are specializes in ASTM A106 Grade A Pipe with years of Experience in Manufacturing Carbon Steel Seamless Pipes. we offer high quality, lower cost but the best service. As a result to that our Carbon Stee Seamless Pipes and Tubes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

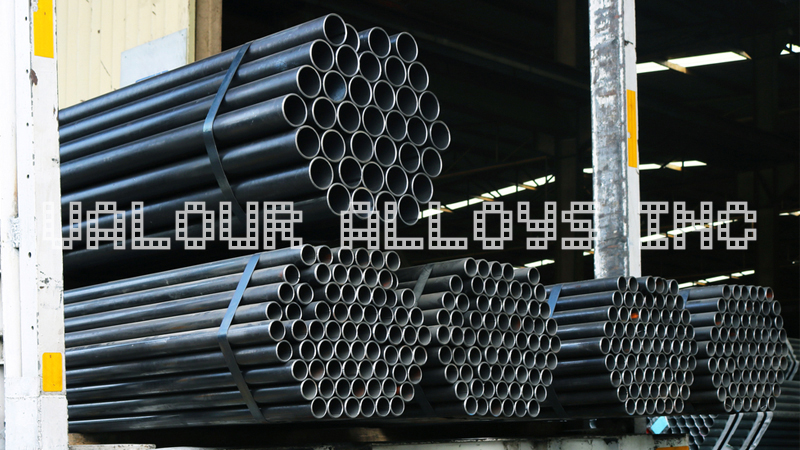

ASTM A106 Grade A Seamless Pipe Supplier Manufacturer

ASTM A106 Grade A Seamless Pipe

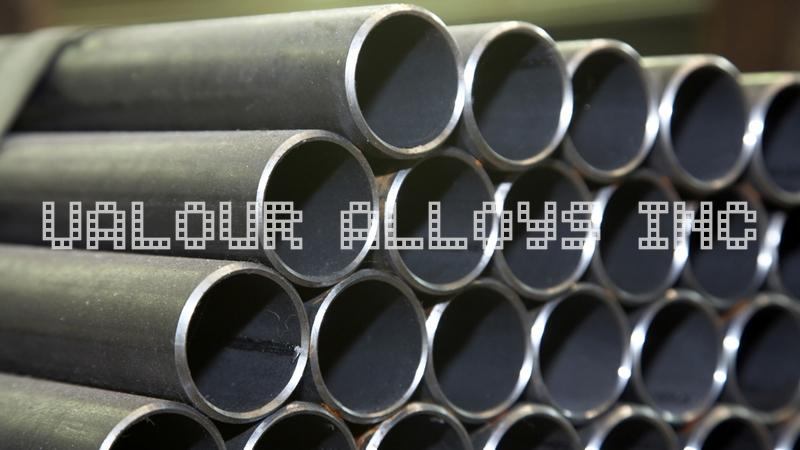

ASTM A106 Grade A Welded Pipe Supplier Manufacturer

ASTM A106 Grade A Welded Pipe

We Supply Carbon Steel Pipes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.

ASTM A106 Welded Pipes Manufacturer, ASTM A A106 GR. B Square Pipes stockist, ASTM A106 Polished Pipes, ASTM A A106 GR. B Round Tubes Exporter

Material Composition: ASTM A106 Grade A Pipe is made from carbon steel, which consists primarily of iron and carbon, with trace amounts of other elements such as manganese, phosphorus, sulfur, and silicon. The specific chemical composition must meet the requirements outlined in the ASTM A106 standard.

Seamless Construction: These pipes are produced using a seamless manufacturing process, which means they do not have any welded joints. This seamless construction enhances their strength and integrity, making them suitable for high-pressure applications.

High-Temperature Service: ASTM A106 Grade A Pipe is designed to withstand high-temperature and high-pressure environments. It is commonly used in industries such as oil and gas, petrochemical, power generation, and more, where elevated temperatures are encountered.

Mechanical Properties: Grade A within the ASTM A106 standard has specific mechanical properties, including a minimum tensile strength of 48,000 psi (330 MPa) and minimum yield strength of 30,000 psi (205 MPa). These properties ensure the pipe's ability to withstand the intended service conditions.

Testing and Certification: ASTM A106 Grade A Pipes undergo rigorous testing to ensure they meet the specified standards. This may include non-destructive testing, chemical analysis, and mechanical testing. Pipes that pass these tests are typically certified to ASTM A106 Grade A standards.

Availability: ASTM A106 Grade A Pipe is widely available from various manufacturers and suppliers, making it a readily accessible choice for industries requiring carbon steel pipes for high-temperature and high-pressure applications.

ASTM A106 Grade A Pipe is a seamless carbon steel pipe known for its suitability in high-temperature and high-pressure applications. Its seamless construction, specific mechanical properties, and adherence to ASTM standards make it a reliable choice for various industrial sectors where robust and durable piping solutions are required.

ASTM A106 Grade A Pipe Range

ASTM A106 Grade A Pipe Outer Diameter Size 1/4" NB To 30" NB (Nominal Bore Size)
ASTM A106 Grade A Pipe Wall Thickness Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
ASTM A106 Grade A Pipe Length 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM A106 Grade A Pipe Ends Plain Ends / Beveled Ends / Coupling
ASTM A106 Grade A Pipe Specification ASME SA/ASTM A106 / ASTM A333 / BS1239 / IS3589 / EN 10216-2 / ASTM A500 Etc.
ASTM A106 Grade A Pipe Grades ASTM A106 GRADE A / B / C, ASTM A333 GRADE 1 / 3 / 6, IS1239 Light / Medium / Heavy, IS3589 FE330/FE410, EN 10216-2 P235GH / P265GH, ASTM A500 GRADE A / B / C Etc.
ASTM A106 Grade A Pipe Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
ASTM A106 Grade A Pipe Type Seamless - Hot Rolled / Cold Drawn
ASTM A106 Grade A Pipe Delivery Conditions As Rolled, Cold Drawn, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
ASTM A106 Grade A Pipe Coating Epoxy Coating / Colour Paint Coating / 3LPE Coating.
ASTM A106 Grade A Pipe Machinery Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc.
ASTM A106 Grade A Pipe Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
ASTM A106 Grade A Pipe Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM A106 Grade A Pipe Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A106 Grade A Pipe Other Testing NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
ASTM A106 Grade A Pipe Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC.

Chemical Composition of ASTM A106 Grade A Pipe

Grade A Grade B Grade C
Carbon max. % 0.25 0.30 0.35
*Manganese % 0.27 to 0.93 *0.29 to 1.06 0.29 to 1.06
Phosphorous, max. % 0.035 0.035 0.035
Sulfur, max. % 0.035 0.035 0.035
Silicon, min.% 0.10 0.10 0.10
Chrome, max. % 0.40 0.40 0.40
Copper, max. % 0.40 0.40 0.40
Molybdenum, max. % 0.15 0.15 0.15
Nickel, max. % 0.40 0.40 0.40
Vanadium, max.% 0.08 0.08 0.08
*Unless otherwise specified by the purchaser, for each reduction of 0.01% below the specified carbon maximum, an increase of 0.06% manganese above the specified maximum will be permitted up to a maximum of 1.65% (1.35% for ASME SA106).

Mechanical Properties of ASTM A106 Grade A Pipe

Seamless
Grade A Grade B Grade C
Tensile Strength, min., psi 48,000 60,000 70,000
Yield Strength, min., psi 30,000 35,000 40,000

Permissible Variations in Wall Thickness in ASTM A106 Grade A Pipes

The minimum wall thickness at any point shall not be more than 12.5% under the nominal wall thickness specified.Permissible Variations in Weights per Foot Weight of any length shall not vary more than 10% over and 3.5% under that specified. NOTE -- NPS 4 and smaller -- weighed in lots. Larger sizes shall be weighed separately by length. Permissible Variations in Outside Diameter at any point shall not vary from standard specified more than:

NPS [DN Designator] Over Under
in. mm in. mm
1/8 to 1-1/2 [6 to 40], incl 1/64 (0.015) 0.4 1/64 (0.015) 0.4
Over 1-1/2 to 4 [40 to 100], incl 1/32 (0.031) 0.8 1/32 (0.031) 0.8
Over 4 to 8 [100 to 200], incl 1/16 (0.062) 1.6 1/32 (0.031) 0.8
Over 8 to 18 [200 to 450], incl 3/32 (0.093) 2.4 1/32 (0.031) 0.8
Over 18 to 26 [450 to 650], incl 1/8 (0.125) 3.2 1/32 (0.031) 0.8
Over 26 to 34 [650 to 859], incl 5/32 (0.156) 4.0 1/32 (0.031) 0.8
Over 34 to 48 [850 to 1200], incl 3/16 (0.187) 4.8 1/32 (0.031) 0.8

Other Available Products of ASTM A106 Grade A Pipe

ASTM A106 Carbon Steel Round Pipe ASTM A106 Carbon Steel Dairy Pipe
ASTM A106 CS Exhaust Pipe ASTM A106 Carbon Steel Flexible Pipe
ASTM A106 Carbon Steel Round Pipe ASTM A53 Carbon Steel Rectangular Pipe
ASTM A106 Carbon Steel Round Pipe ASTM A106 Carbon Steel Schedule 40 Pipe
ASTM A106 Carbon Steel Sch 10 Pipe ASTM A333 CS Schedule 5 Pipe
ASTM A106 Carbon Steel Schedule 80 Pipe ASTM A106 CS Threaded Pipe
ASTM A106 Carbon Steel Seamless Pipe ASTM A53 Carbon Steel Rectangular Pipes
ASTM A106 Carbon Steel Round Pipes ASTM A106 CS Rectangular Pipe
ASTM A106 Carbon Steel Rectangular Pipes ASTM A106 CS Structural Carbon Pipe

ASTM A106 Grade A Pipe Application

  • Oil and Gas equipments
  • Offshore Technology
  • Seawater Desalination Plants
  • Chemical Industry
  • Airport, Malls, Buildings
  • Storage Tanks
  • Medical Industry
  • Civil Engineering
  • Pressure vessels, Reactor tanks, and Heat exchangers
  • Rotors, impellers and shafts
  • Power Plants
  • Petrochemical
  • Shipbuilding Industry
  • Mining Industry
  • Food Equipments Industry

Test Certificates

We ASTM A106 Grade A Pipe with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.

Quality Assurance

At ASTM A106 Grade A Pipe all types of Such as Carbon Steel ERW Pipes, Carbon Steel Welded Pipes, Carbon Steel Fabricated Pipes, Carbon Steel ASTM A335 Pipes, Carbon Steel Seamless Pipes, Carbon Steel LSAW Pipes from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.

Marking & Packing

Our ASTM A106 Grade A Pipe is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A106 Grade A Pipe are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
