Valour Alloys Inc., we carry a full inventory and Supply Inconel Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Inconel flanges are used in various high-temperature and high-pressure applications, including aerospace, chemical processing, power generation, oil and gas & marine industries. They are commonly used in harsh, corrosive environments where resistance to oxidation and scaling at elevated temperatures is essential.
Inconel is a family of austenitic nickel-chromium-based superalloys known for their excellent corrosion resistance and high-temperature strength. Inconel alloys are often used in extreme environments, such as aerospace, chemical processing, and high-temperature applications. Inconel flanges are a type of pipe fitting that plays a crucial role in connecting pipes, valves, pumps, and other equipment to form a piping system.

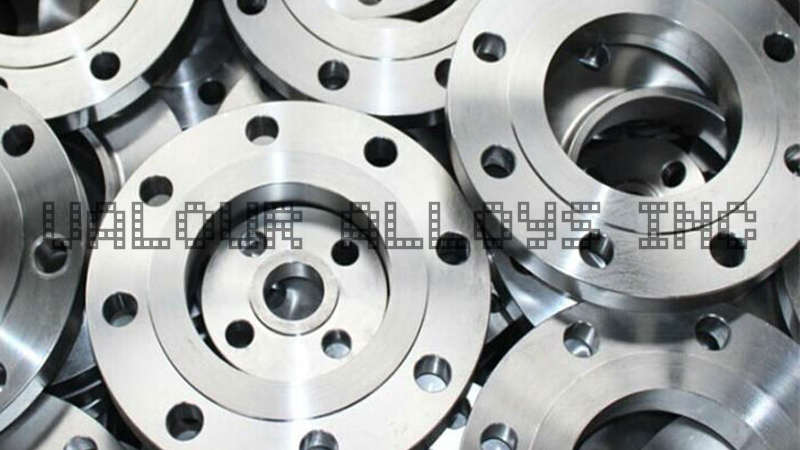

Inconel Flanges Manufacturer

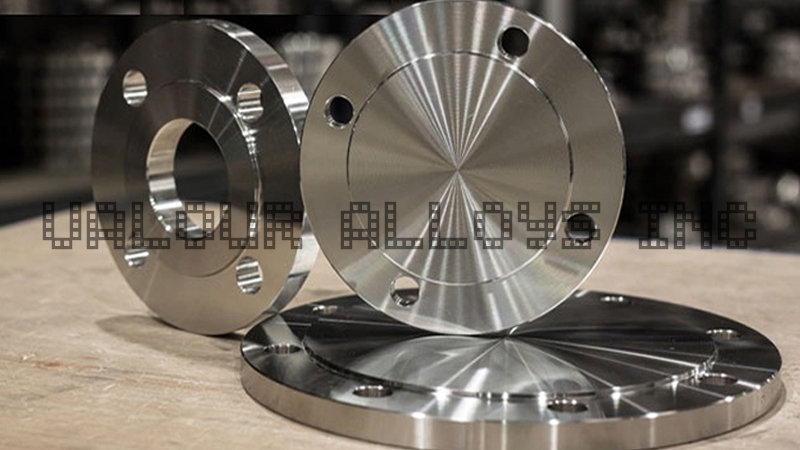

Inconel Flanges Exporter
Manufacturer and Exporter of Inconel Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.
1. Material Composition:
Inconel flanges are typically made from various grades of the Inconel alloy, such as Inconel 600, 601, 625, 718, and others.
The alloy's composition includes nickel, chromium, iron, and other elements, imparting unique properties like high resistance to oxidation, corrosion, and excellent mechanical strength at elevated temperatures.
2. Corrosion Resistance:
Inconel flanges are renowned for their exceptional corrosion resistance, making them suitable for use in aggressive environments involving acids, alkaline solutions, and high-temperature corrosive media.
3. High-Temperature Applications:
Inconel alloys retain their strength and integrity at high temperatures, making Inconel flanges ideal for applications where exposure to extreme heat is a concern.
4. Versatility:
Inconel flanges find applications across various industries, including aerospace, chemical processing, petrochemical, marine, and power generation.
Their versatility allows them to be used in diverse environments, from cryogenic temperatures to high-temperature applications.
5. Weldability and Fabrication:
Inconel flanges can be welded and fabricated, but specialized techniques are often required due to the alloy's unique characteristics.
Welding processes such as gas tungsten arc welding (GTAW) or plasma arc welding (PAW) are commonly used.
6. Types of Flanges:
Similar to flanges made from other materials, Inconel flanges come in various types, including weld neck, slip-on, socket weld, blind, and lap joint flanges, among others.
7. Standards and Specifications:
Inconel flanges are manufactured in accordance with industry standards and specifications such as ASTM B564 for nickel alloy forgings.
8. Quality and Testing:
Due to the critical nature of applications where Inconel flanges are used, they undergo stringent quality control and testing, including non-destructive testing (NDT) methods to ensure their integrity.
Inconel flanges are essential components in piping systems where corrosion resistance and high-temperature strength are paramount. Their unique material properties make them suitable for challenging environments across a range of industries.
Inconel Flanges Range
| Inconel Flanges Specification | ASTM B564/ ASME SB564 |
| Inconel Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
| Inconel Flanges Other Grades | INCONEL 600 / Inconel 601 / Inconel 625 / UNS NO6600 / UNS NO6601 / UNS NO 6625 |
| Inconel Flanges Outer Diameter | 1/2" NB TO 64" NB |
| Inconel Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
| Inconel Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
| Inconel Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Inconel Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
| Inconel Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
| Inconel Flanges Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
| Inconel Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Inconel Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| Inconel Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Inconel Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Inconel Flanges
| ASTM B564 Inconel Slip-On Flanges | ASTM B564 Inconel Threaded Flanges |
| ASTM B564 Inconel Weld Neck Flanges | ASTM B564 Inconel Socket Weld Flanges |
| ASTM B564 Inconel Blind Flanges | ASTM B564 Inconel Reducing Flanges |
| ASTM B564 Inconel Lap Joint Flanges | ASTM B564 Inconel Plate Flanges |
| ASTM B564 Inconel Orifice Flanges | ASTM B564 Inconel Forged Flanges |
| ASTM B564 Inconel Ring Type Joint Flanges | ASTM B564 Inconel Square Flanges |
Types Of Inconel Flanges
Chemical Composition of Inconel Flanges
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Flanges
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Equivalent Grade of Inconel Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Inconel Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Other Available Products Of Inconel Flanges
| Inconel 600 Flanges | Inconel EN 1092-1 Flanges |
| Inconel 601 BS 4504 Flanges | Inconel 625 Forged Flanges |
| Inconel UNS N06600 Flanges | Inconel 625 Slip on Flanges |
| Inconel UNS N06601 Flat Flange Suppliers | ANSI 718 Inconel Alloy Blind Flange |
| Inconel Alloy DIN 2.4816 Weld Neck Flanges Dealer | Inconel 600 Socket weld Flanges Exporter |
| Inconel 625 Long Weld Neck Flanges Stockholder | Inconel UNS N06625 Threaded Flanges Distributors |
| Inconel UNS N07718 Reducing Flanges | Inconel DIN 2.4851 Ring Type Joint Flanges Manufacturer |
| Inconel DIN 2.4856 Orifice Flange | Inconel 718 Spectacle Blind Flanges |
| Inconel 625 WNRF Flange | Inconel DIN 2.4668 SORF Flanges |
| ANSI B16.5 Inconel Alloy 600 RTJ Flanges | Inconel 625 Screwed Flanges Stockist |
| ASTM B564 Inconel 601 Lap Joint Flanges | ASME SB564 Inconel 690 BLRF Flange |
| Inconel 600 Raised Face Flanges | 625 Inconel Nipoflange |
| Inconel 600 Square Flanges | ASME SB564M Inconel 625 SWRF Flange |
| Inconel Alloy 601 Tongue & Groove Flanges | Alloy 600 Male & Female Flanges |
| Inconel 625 DIN Flanges | 718 Inconel ASME B16.5 Flanges |
Inconel Flanges Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We Inconel Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Inconel Flanges all types of Such as Inconel 600 Flanges,Inconel 601 Flanges,Inconel 625 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our Inconel Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Inconel Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
