Valour Alloys Inc., we carry a full inventory and Supply Incoloy Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Incoloy 825 Flanges are made up of a nickel chromium alloy that has 38% nickel and 19% chromium in the composition along with carbon, manganese, silicon, sulfur, copper, iron, aluminum and titanium for stabilization.
Incoloy is a family of nickel-chromium-based superalloys known for their excellent corrosion resistance, high-temperature strength, and durability. Incoloy flanges, specifically, are components used in piping systems and connections to facilitate the assembly, disassembly, and maintenance of pipelines. These flanges are designed to connect pipes, valves, pumps, and other equipment in various industrial applications where resistance to corrosion and high temperatures is crucial.

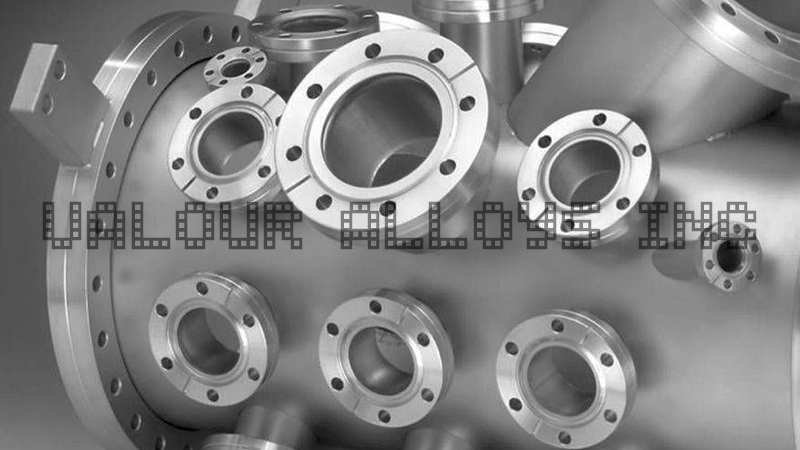

Incoloy Flanges Manufacturer

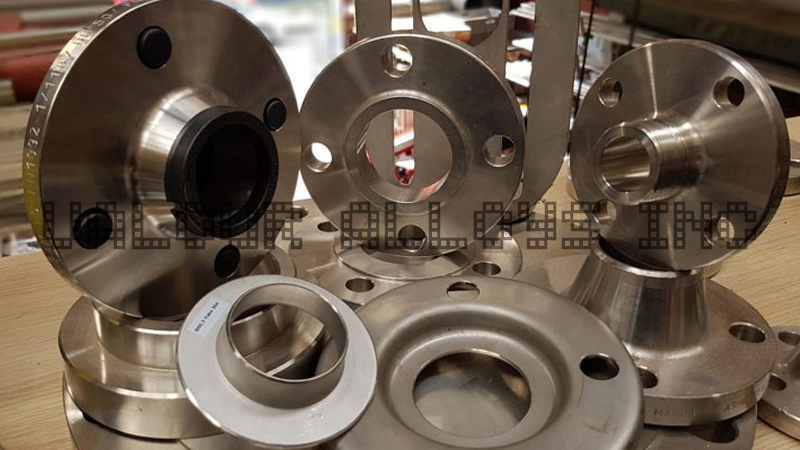

Incoloy Flanges Exporter
Manufacturer and Exporter of Incoloy Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.
Composition and Properties: Incoloy alloys typically consist of nickel, chromium, iron, and other elements such as molybdenum and copper. The specific composition may vary depending on the grade within the Incoloy family. These alloys are known for their exceptional resistance to corrosion in a wide range of environments, including aggressive acids and high-temperature atmospheres.
Corrosion Resistance: One of the primary advantages of using Incoloy flanges is their resistance to corrosion. They are well-suited for applications involving harsh chemicals, acids, and corrosive substances, making them ideal for industries such as chemical processing, petrochemical, and marine engineering.
High-Temperature Strength: Incoloy alloys exhibit excellent strength and stability at elevated temperatures. This property makes Incoloy flanges suitable for applications where exposure to high temperatures is a concern, such as in heat exchangers, furnace components, and aerospace engineering.
Applications: Incoloy flanges find application in a variety of industries, including chemical processing, oil and gas, petrochemical, power generation, and more. They are commonly used in environments where resistance to both corrosion and high temperatures is critical for the integrity and longevity of the piping systems.
Types of Incoloy Flanges: There are different types of Incoloy flanges designed for specific purposes, including welding neck flanges, slip-on flanges, blind flanges, socket weld flanges, and threaded flanges. The choice of flange type depends on the specific requirements of the application and the nature of the piping system.
Conclusion: Incoloy flanges play a crucial role in ensuring the reliability and performance of piping systems in demanding industrial environments. Their resistance to corrosion and high-temperature strength make them valuable components in applications where durability and longevity are paramount. When selecting Incoloy flanges, it's essential to consider the specific alloy grade and type of flange to meet the unique needs of the intended application.
Incoloy Flanges Range
Incoloy Flanges Specification | ASTM B564/ ASME SB564 |
Incoloy Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
Incoloy Flanges Other Grades | Incoloy 800, 800H, 800HT, 825, 925 Flanges |
Incoloy Flanges Outer Diameter | 1/2" NB TO 64" NB |
Incoloy Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Incoloy Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
Incoloy Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Incoloy Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
Incoloy Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
Incoloy Flanges Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
Incoloy Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Incoloy Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
Incoloy Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Incoloy Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Incoloy Flanges
ASTM B564 Incoloy Slip-On Flanges | ASTM B564 Incoloy Threaded Flanges |
ASTM B564 Incoloy Weld Neck Flanges | ASTM B564 Incoloy Socket Weld Flanges |
ASTM B564 Incoloy Blind Flanges | ASTM B564 Incoloy Reducing Flanges |
ASTM B564 Incoloy Lap Joint Flanges | ASTM B564 Incoloy Plate Flanges |
ASTM B564 Incoloy Orifice Flanges | ASTM B564 Incoloy Forged Flanges |
ASTM B564 Incoloy Ring Type Joint Flanges | ASTM B564 Incoloy Square Flanges |
Types Of Incoloy Flanges
Chemical Composition of Incoloy Flanges
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Incoloy Flanges
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Equivalent Grade of Incoloy Flanges
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | Xh22T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | Xh22T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | Xh22T |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | Xh28BT |
Incoloy Flanges Weight Chart
Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Other Available Products Of Incoloy Flanges
Incoloy 800 Flanges | Incoloy EN 1092-1 Flanges |
Incoloy UNS N08800 Flanges | Incoloy 800H Slip on Flanges |
Incoloy UNS N08810 Flat Flange Suppliers | ANSI 825 Incoloy Alloy Blind Flange |
Incoloy Alloy DIN 1.4876 Weld Neck Flanges Dealer | Incoloy 800 Socket weld Flanges Exporter |
Incoloy 825 BS 4504 Flanges | Incoloy 800HT Forged Flanges |
Incoloy 925 Long Weld Neck Flanges Stockholder | Incoloy UNS N08811 Threaded Flanges Distributors |
ASTM B564 Incoloy 800HT Lap Joint Flanges | ASME SB564 Incoloy 825 BLRF Flange |
Incoloy UNS N08825 Raised Face Flanges | 925 Incoloy Nipoflange |
Incoloy 800 Square Flanges | ASME SB564M Incoloy 800HT SWRF Flange |
Incoloy Alloy 800H Tongue & Groove Flanges | Alloy 800 Male & Female Flanges |
Incoloy UNS N08825 Reducing Flanges | Incoloy DIN 1.4958 Ring Type Joint Flanges Manufacturer |
Incoloy DIN 1.4959 Orifice Flange | Incoloy 800 Spectacle Blind Flanges |
Incoloy 825 WNRF Flange | Incoloy DIN 2.4858 SORF Flanges |
ANSI B16.5 Incoloy Alloy 800 RTJ Flanges | Incoloy 825 Screwed Flanges Stockist |
Incoloy 825 DIN Flanges | UNS N09925 Incoloy ASME B16.5 Flanges |
Incoloy Flanges Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We Incoloy Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Incoloy Flanges all types of Such as Incoloy 800 Flanges,Incoloy 800H Flanges,Incoloy 800HT Flanges,Incoloy 825 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our Incoloy Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Incoloy Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
