Monel WERKSTOFF NR. 2.4360 RTJ Flanges, Monel Din 2.4360 Spectacle Blind Flanges, ASTM B564 Monel Slip on Flanges, Monel 400 Weld Neck Flanges Exporter, Monel 400 AWWA Flanges, Monel 400 Body Flanges Supplier.
Monel 400 Flanges, Monel 400 Blind Flanges Manufacturer, Alloy 400 Threaded Flanges, ANSI B16.5 Monel Threaded Flanges Stockist, Alloy 400 Loose Flanges, ANSI B16.47 Series A & B Flanges, Monel Alloy 400 Spectacle Blind Flanges Supplier.
Valour Alloys Inc., we carry a full inventory and Supply Monel Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Monel Tube fittings are leak-tight and quick connections that are available in different types and materials for various industrial uses. These tube fittings have types such as union tee, union cross, Bulkhead union, male connector, male pipe weld connector, female connector, and many more.
Monel is a group of nickel alloys, primarily composed of nickel (over 60%) and copper, with small amounts of iron, manganese, carbon, and other elements. Monel alloys are known for their excellent corrosion resistance, especially in acidic and alkaline environments. Monel Flanges, therefore, are flanges made from Monel alloys.

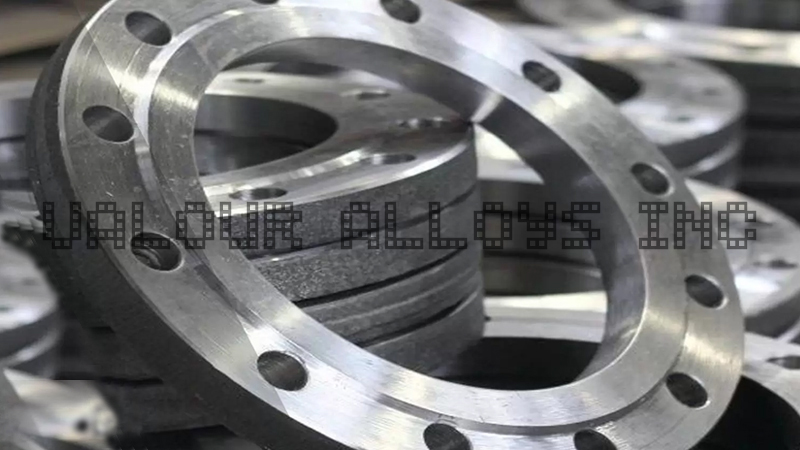

Monel Flanges Manufacturer

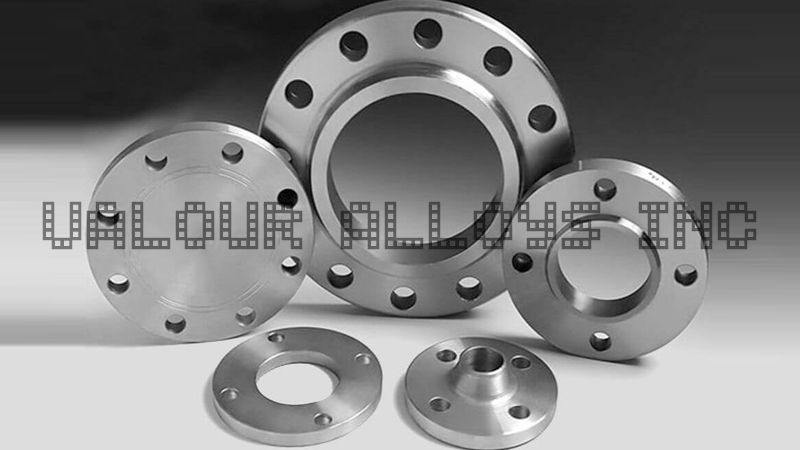

Monel Flanges Exporter
Manufacturer and Exporter of Monel Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.
1. Composition: Monel Flanges are predominantly made from Monel alloys, with variations such as Monel 400 (Alloy 400) and Monel K-500 being commonly used.
Monel 400 is composed of approximately 67% nickel and 23% copper, with small amounts of iron, manganese, silicon, and carbon.
Monel K-500 contains nickel, copper, aluminum, titanium, and small amounts of iron and manganese.
2. Corrosion Resistance: Monel Flanges are renowned for their exceptional corrosion resistance in various environments, including seawater, acids, alkalis, and other harsh chemical conditions.
This corrosion resistance makes Monel Flanges suitable for applications in marine engineering, chemical processing, and the oil and gas industry.
3. High Strength: Monel alloys, including those used in Monel Flanges, exhibit high strength and toughness, making them suitable for challenging industrial applications.
Monel K-500, in particular, offers additional strength due to the presence of aluminum and titanium.
4. Temperature Resistance: Monel Flanges maintain their mechanical properties at both high and low temperatures, providing versatility in various operating conditions.
6. Machinability: Monel alloys can be challenging to machine, requiring appropriate tools and techniques. However, their unique properties make them valuable in applications where their specific characteristics are essential.
7. Weldability: Monel Flanges can be welded using various methods, and proper welding procedures are crucial to maintaining the corrosion resistance and mechanical properties of the material.
8. Standards and Specifications: Monel Flanges are manufactured in accordance with industry standards and specifications, ensuring compatibility and reliability in diverse industrial settings.
In conclusion, Monel Flanges offer a combination of corrosion resistance, high strength, and temperature stability, making them suitable for demanding environments where traditional materials may fail. Their use in critical applications showcases the versatility and reliability of Monel alloys in various industries.
Monel Flanges Range
Monel 400 Flanges Specification | ASTM B366 / ASME SB366 |
Monel 400 Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
Monel 400 Flanges Other Grades | Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al |
Monel 400 Flanges Outer Diameter | 1/2" NB TO 64" NB |
Monel 400 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Monel 400 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
Monel 400 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Monel 400 Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
Monel 400 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
Monel 400 Flanges Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
Monel 400 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Monel 400 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
Monel 400 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Monel 400 Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Monel Flanges
ASTM B564 Monel 400 Slip-On Flanges | ASTM B564 Monel K500 Threaded Flanges |
ASTM B564 Monel K500 Weld Neck Flanges | ASTM B564 Monel 400 Socket Weld Flanges |
ASTM B564 Monel 400 Blind Flanges | ASTM B564 Monel K500 Reducing Flanges |
ASTM B564 Monel K500 Lap Joint Flanges | ASTM B564 Monel 400 Plate Flanges |
ASTM B564 Monel 400 Orifice Flanges | ASTM B564 Monel K500 Forged Flanges |
ASTM B564 Monel K500 Ring Type Joint Flanges | ASTM B564 Monel 400 Square Flanges |
Types Of Monel Flanges
Chemical Composition of Monel Flanges
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties of Monel Flanges
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Equivalent Grade of Monel Flanges
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Monel Flanges Weight Chart
Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Other Available Products Of Monel Flanges
Monel 400 Flanges | Monel K500 EN 1092-1 Flanges |
Monel K500 BS 4504 Flanges | Monel 400 Forged Flanges |
Monel UNS N04400 Flanges | Monel K500 Slip on Flanges |
Monel 400 Flat Flange Suppliers | ANSI K500 Alloy Blind Flange |
Alloy K500 Weld Neck Flanges Dealer | Monel 400 Socket weld Flanges Exporter |
Monel 400 Long Weld Neck Flanges Stockholder | Alloy K500 Threaded Flanges Distributors |
Monel UNS N05500 Reducing Flanges | Monel 400 Ring Type Joint Flanges Manufacturer |
Monel DIN 2.4360 Orifice Flange | Monel K500 Spectacle Blind Flanges |
Monel 400 WNRF Flange | Monel K500 SORF Flanges |
ANSI B16.5 Monel Alloy 400 RTJ Flanges | Monel K500 Screwed Flanges Stockist |
ASTM B564 Monel 400 Lap Joint Flanges | ASME SB564 Monel K500 BLRF Flange |
Monel 400 Raised Face Flanges | K500 Monel Nipoflange |
Monel DIN 2.4375 Square Flanges | ASME SB564M Monel 400 SWRF Flange |
Monel Alloy 400 Tongue & Groove Flanges | Alloy K500 Male & Female Flanges |
Monel 400 DIN Flanges | K500 Monel ASME B16.5 Flanges |
Monel Flanges Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We Monel Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Monel Flanges all types of Such as Monel 400 Flanges,Monel K500 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our Monel Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Monel Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying Super Monel Flanges to Countries -
We Export Monel Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing Monel Flanges to Cities -
We Export Monel Flanges to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
