Valour Alloys Inc., we carry a full inventory and Supply Hastelloy Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.

Hastelloy flanges have excellent corrosion resistance in both oxidizing and reducing media which makes it well suited for a variety of strong corrosive applications. Hastelloy flanges also have exceptional resistance to both sulfuric acid and hydrochloric acid.

Hastelloy is a high-performance nickel-based alloy known for its exceptional corrosion resistance in a wide range of aggressive environments, including strong acids, chlorine, and seawater. Hastelloy flanges, therefore, play a crucial role in various industries where corrosion resistance is a primary concern.

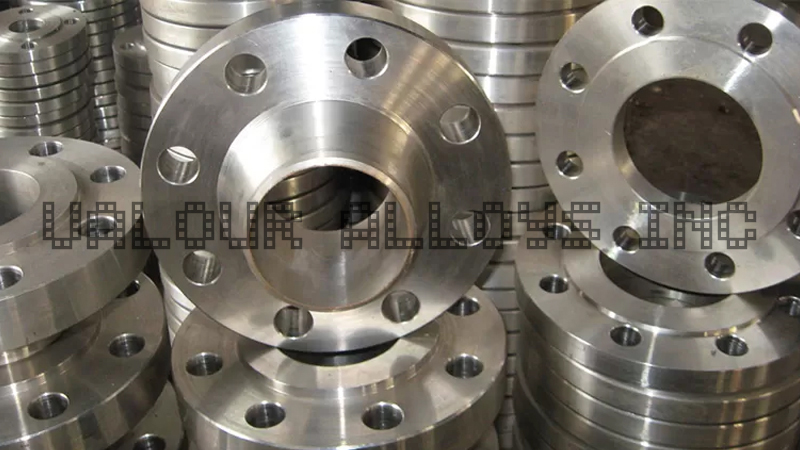

Hastelloy Flanges Manufacturer

Hastelloy Flanges Manufacturer

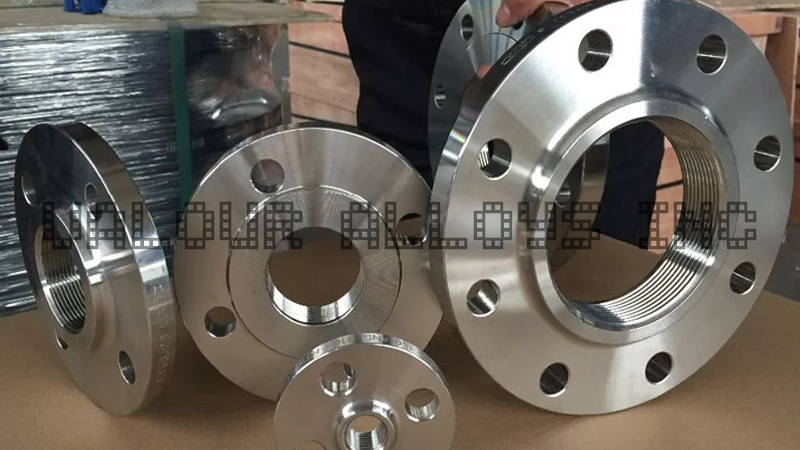

Hastelloy Flanges Exporter

Hastelloy Flanges Exporter

Manufacturer and Exporter of Hastelloy Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.

Corrosion Resistance: Hastelloy flanges are specifically designed to resist corrosion in harsh and corrosive environments. This makes them suitable for applications in chemical processing, petrochemical, and other industries where exposure to corrosive substances is common.

Versatility: Hastelloy alloys come in various grades, such as C-276, C-22, B-2, and others, each with specific properties. This versatility allows for the selection of the most suitable grade based on the application's requirements.

High Temperature Resistance: Hastelloy alloys maintain their strength and corrosion resistance at elevated temperatures, making them suitable for applications in high-temperature environments such as chemical processing and aerospace.

High-Strength Properties: Hastelloy flanges exhibit high strength and toughness, providing reliability and durability in demanding industrial applications.

Weldability: Hastelloy alloys are generally weldable, allowing for the fabrication of complex structures and assemblies. Proper welding procedures and techniques are crucial to maintain the material's corrosion resistance.

Chemical Compatibility: These flanges are resistant to a wide range of chemicals, including sulfuric acid, hydrochloric acid, phosphoric acid, and organic acids. This chemical compatibility makes Hastelloy flanges suitable for use in chemical processing plants.

Hastelloy Flanges Range

Hastelloy Flanges Specification ASTM B564 / ASME SB564
Hastelloy Flanges Manufacturing Process Hot Forging / Rolling / Machining
Hastelloy Flanges Other Grades Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al
Hastelloy Flanges Outer Diameter 1/2" NB TO 64" NB
Hastelloy Flanges Pressure Class Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement
PN 6, PN 10, PN 16, PN 25 and PN 40 etc
Hastelloy Flanges Schedule Sch 10s TO Sch XXS or As Per Custom Requirement
Hastelloy Flanges Facing Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Hastelloy Flanges Dimension ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
Hastelloy Flanges Types Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
Hastelloy Flanges Other Testing NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc.
Hastelloy Flanges Value Added Services Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Hastelloy Flanges Packaging Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
Hastelloy Flanges Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Hastelloy Flanges Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC

Hastelloy Flanges

ASTM B564 Hastelloy Slip-On Flanges ASTM B564 Hastelloy Threaded Flanges
ASTM B564 Hastelloy Weld Neck Flanges ASTM B564 Hastelloy Socket Weld Flanges
ASTM B564 Hastelloy Blind Flanges ASTM B564 Hastelloy Reducing Flanges
ASTM B564 Hastelloy Lap Joint Flanges ASTM B564 Hastelloy Plate Flanges
ASTM B564 Hastelloy Orifice Flanges ASTM B564 Hastelloy Forged Flanges
ASTM B564 Hastelloy Ring Type Joint Flanges ASTM B564 Hastelloy Square Flanges

Types Of Hastelloy Flanges

Chemical Composition of Hastelloy Flanges

Grade C Mn Si S Co Ni Cr Fe Mo P
C276 0.010 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.00 – 17.00 0.04 max
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max
B2 0.02 max 1.0 max 0.1 max 0.03 max 1.0 max Bal 1.0 max 2.0 max 26 – 30 0.04 max

Mechanical Properties of Hastelloy Flanges

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %
Hastelloy B2 9.2 g/cm3 1370 °C (2500 ºF ) Psi – 1,10,000 , MPa – 760 Psi – 51000 , MPa – 350 40 %

Equivalent Grade of Hastelloy Flanges

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760
Hastelloy C22 2.4602 N06022 NW 6022 - NiCr21Mo14W -
Hastelloy B2 2.4617 N10665 - - - -

Hastelloy Flanges Weight Chart

Pipe Normal Diameter (inch) Outer diameter Flange Thicjness Of Flange Minimum Diameter
of
Hub
Diameter of Raised Face Length Hub.Y Thread Length Diameter
of Bolt
Circle
Diameter
of Bolt
Holes
Number
of Bolts
Diameter of
Bolts
(inch)
KG LB
1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

Other Available Products Of Hastelloy Flanges

Hastelloy C22 Flanges Hastelloy EN 1092-1 Flanges
Hastelloy C276 BS 4504 Flanges Hastelloy B2 Forged Flanges
Hastelloy UNS N10276 Flanges Hastelloy B3 Slip on Flanges
Hastelloy UNS N06022 Flat Flange Suppliers ANSI C276 Alloy Blind Flange
Hastelloy DIN 2.4819 Weld Neck Flanges Dealer Hastelloy C4 Socket weld Flanges Exporter
Hastelloy X Long Weld Neck Flanges Stockholder Hastelloy UNS N10665 Threaded Flanges Distributors
Hastelloy UNS N06455 Reducing Flanges Hastelloy DIN 2.4602 Ring Type Joint Flanges Manufacturer
Hastelloy DIN 2.4617 Orifice Flange Hastelloy C22 Spectacle Blind Flanges
Hastelloy B3 WNRF Flange Hastelloy DIN 2.4610 SORF Flanges
ANSI B16.5 Alloy C276 RTJ Flanges Hastelloy B2 Screwed Flanges Stockist
ASTM B564 Hastelloy C22 Lap Joint Flanges ASME SB564 Hastelloy B3 BLRF Flange
Hastelloy B3 Raised Face Flanges 925 Hastelloy Nipoflange
Hastelloy C22 Square Flanges ASME SB564M Hastelloy 800HT SWRF Flange
Hastelloy Alloy X Tongue & Groove Flanges Alloy C276 Male & Female Flanges
Hastelloy X DIN Flanges Hastelloy C22 ASME B16.5 Flanges

Hastelloy Flanges Application

  • Oil and Gas equipments
  • Offshore Technology
  • Seawater Desalination Plants
  • Chemical Industry
  • Airport, Malls, Buildings
  • Storage Tanks
  • Medical Industry
  • Civil Engineering
  • Pressure vessels, Reactor tanks, and Heat exchangers
  • Rotors, impellers and shafts
  • Power Plants
  • Petrochemical
  • Shipbuilding Industry
  • Mining Industry
  • Food Equipments Industry

Test Certificates

We Hastelloy Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.

Quality Assurance

At Hastelloy Flanges all types of Such as Hastelloy C276 Flanges,Hastelloy C22 Flanges,Hastelloy B2 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.

Marking & Packing

Our Hastelloy Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Hastelloy Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
