Valour Alloys Inc., we carry a full inventory and Supply Titanium Alloy Flanges products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Titanium Slip On Flanges. Ti Grade 5 Pipe flanges & conflat flanges are lightweight, strong, corrosion resistant and abundant in nature. Titanium Flanges and its alloys possess tensile strengths from 30,000 psi to 200,000 psi (210-1380 MPa), which are equivalent to those strengths found in most of alloy steels.
Titanium alloy flanges are essential components in various industrial applications, particularly in sectors where corrosion resistance, high strength-to-weight ratio, and elevated temperature performance are critical. Titanium alloys are a group of materials composed primarily of titanium, along with other elements such as aluminum, vanadium, and nickel, to enhance specific properties.

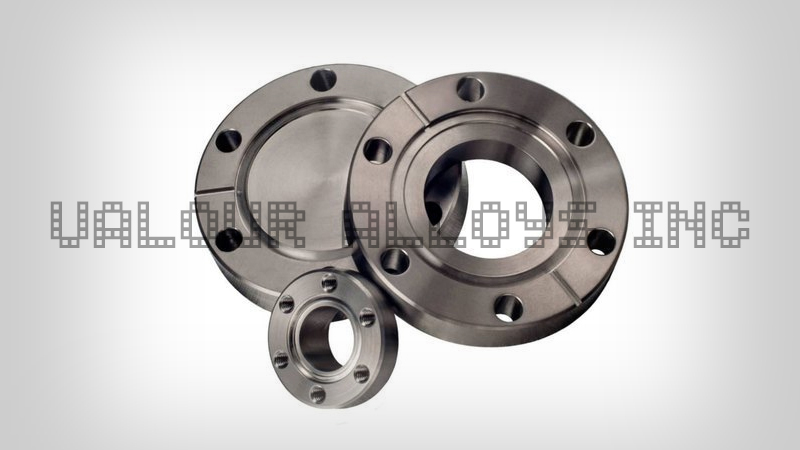

Titanium Alloy Flanges Manufacturer

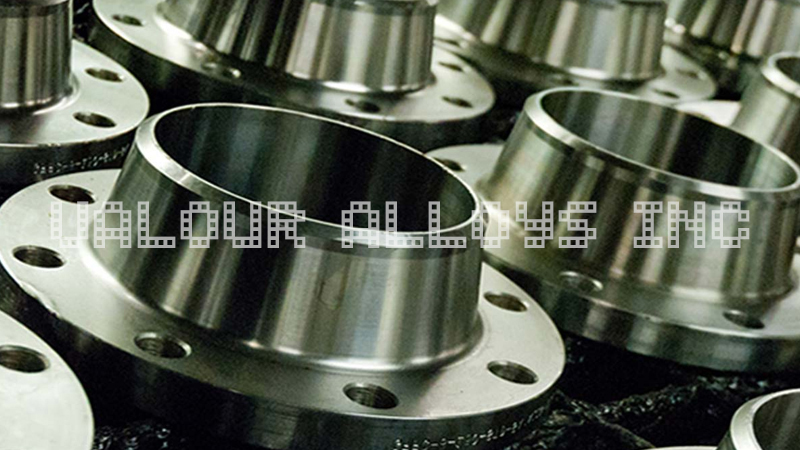

Titanium Alloy Flanges Exporter
Manufacturer and Exporter of Titanium Alloy Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.
Material Composition: Titanium alloy flanges are made from titanium alloys, which are known for their exceptional strength, low density, and corrosion resistance. Common titanium alloys used for flanges include Ti-6Al-4V (Titanium 6% Aluminum 4% Vanadium) and Ti-3Al-2.5V.
Corrosion Resistance: Titanium alloys exhibit excellent corrosion resistance, making them suitable for applications in aggressive environments, such as chemical processing plants and marine industries. They resist corrosion from saltwater, acids, and various chemicals, which can extend the lifespan of the flanges.
High Strength-to-Weight Ratio: Titanium alloys are renowned for their high strength-to-weight ratio. This property is advantageous in applications where weight is a critical factor, such as aerospace engineering and certain industrial processes. Despite their strength, titanium alloy flanges are relatively lightweight compared to alternatives like stainless steel.
Temperature Performance: Titanium alloy flanges maintain their strength and integrity at elevated temperatures, making them suitable for applications involving high-temperature processes, such as in the petrochemical and aerospace industries. The alloys' ability to withstand extreme temperatures contributes to their reliability in demanding conditions.
Biocompatibility: Titanium is biocompatible and is often used in medical implants. While this may not be a critical factor for all applications of titanium alloy flanges, it showcases the material's versatility and safety in various environments.
Fabrication and Machining: Titanium alloys can be challenging to machine due to their high strength and low thermal conductivity. Specialized techniques and equipment are often required for the fabrication of titanium alloy flanges.
In conclusion, titanium alloy flanges offer a unique combination of strength, corrosion resistance, and lightweight properties, making them a preferred choice for demanding industrial applications where reliability and performance are paramount.
Titanium Alloy Flanges Range
Alloy 20 Flanges Specification | ASTM B462 / ASME SB462 |
Alloy 20 Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
Alloy 20 Flanges Other Grades | Alloy 20 |
Alloy 20 Flanges Outer Diameter | 1/2" NB TO 64" NB |
Alloy 20 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Alloy 20 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
Alloy 20 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Alloy 20 Flanges Dimension | ASME B16.5,ASME B165, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc. |
Alloy 20 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
Alloy 20 Flanges Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
Alloy 20 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Alloy 20 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
Alloy 20 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Alloy 20 Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Titanium Alloy Flanges
Titanium Slip-On Flanges | Titanium Threaded Flanges |
Titanium Weld Neck Flanges | Titanium Socket Weld Flanges |
Titanium Blind Flanges | Titanium Reducing Flanges |
Titanium Lap Joint Flanges | Titanium Plate Flanges |
Titanium Orifice Flanges | Titanium Forged Flanges |
Titanium Ring Type Joint Flanges | Titanium Square Flanges |
Types Of Titanium Alloy Flanges
Chemical Composition of Titanium Alloy Flanges
Grade | Ti | C | Fe | H | N | O | Al | V |
Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
Ti Grade5 | 90 min | - | 0.25 max | - | - | 0.2 max | 6 min | 4 min |
Mechanical Properties of Titanium Alloy Flanges
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Equivalent Grade of Titanium Alloy Flanges
STANDARD | WERKSTOFF NR. | UNS |
Titanium Gr. 2 | 3.7035 | R50400 |
Titanium Gr. 5 | 3.7165 | N56400 |
Titanium Alloy Flanges Weight Chart
Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Other Available Products Of Titanium Alloy Flanges
Titanium Gr. 2 Flanges | Titanium EN 1092-1 Flanges |
Titanium Gr. 5 BS 4504 Flanges | Titanium Gr. 2 Forged Flanges |
Titanium UNS R50400 Flanges | Titanium Gr. 2 Slip on Flanges |
Titanium UNS N56400 Flat Flange Suppliers | ANSI Gr. 5 Titanium Alloy Blind Flange |
Titanium Alloy DIN 3.7165 Weld Neck Flanges Dealer | Titanium Gr. 2 Socket weld Flanges Exporter |
Titanium Gr. 2 Long Weld Neck Flanges Stockholder | Titanium Alloy Threaded Flanges Distributors |
Titanium Gr.2 Reducing Flanges | Titanium DIN 3.7165 Ring Type Joint Flanges Manufacturer |
Titanium Grade 2 Orifice Flange | Titanium Gr.5 Spectacle Blind Flanges |
Titanium Gr. 5 WNRF Flange | Titanium Alloy Gr.2 SORF Flanges |
ANSI B16.5 Titanium Alloy Gr. 2 RTJ Flanges | Titanium Gr. 5 Screwed Flanges Stockist |
ASTM B381 Titanium Gr. 2 Lap Joint Flanges | ASME SB381 Titanium Gr. 5 BLRF Flange |
Titanium Gr. 5 Raised Face Flanges | Titanium Nipoflange |
Titanium Gr. 2 Square Flanges | ASME SB381M Titanium Gr. 2HT SWRF Flange |
Titanium Alloy Gr. 2 Tongue & Groove Flanges | Alloy Gr. 2 Male & Female Flanges |
Titanium Gr. 5 DIN Flanges | Titanium ASME B16.5 Flanges |
Titanium Alloy Flanges Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We Titanium Alloy Flanges with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Titanium Alloy Flanges all types of Such as Titanium GR 2 Flanges,Titanium GR 5 Flanges from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our Titanium Alloy Flanges is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Titanium Alloy Flanges are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
