API 5L Grade X65 Pipe, API 5L Gr.X65 Pipe, API 5L Grade X65 Line Pipe, API 5L Grade X65 Seamless Pipe, API 5L Grade X65 PSL1 Pipe, API 5L Grade X65 PSL2 Pipe.
Dealer of API 5L Grade X65 Line Pipe. Our API 5L Grade X65 Pipe is IBR Approved and we are its Dealer, Distributor, Exporter, Supplier in India.
API 5L X65 Pipe is a popular grade of steel pipe used in the oil and gas industry for transporting fluids and gases over long distances. It is manufactured according to the specifications outlined in the American Petroleum Institute (API) 5L standard. This standard defines various grades of steel pipes, and API 5L X65 is one of them. The "X" in the name indicates that it is a high-strength pipe grade.
Valour Alloys Inc., we carry a full inventory of API 5L X65 Pipe PSL1 & 2 Pipes products in a variety of sizes to meet the project piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X65 Pipe PSL1 & 2 Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in API 5L X65 Pipe PSL1 & 2 Pipe with years of Experience in Manufacturing ASTM A672 C70 EFW Pipe. we offer high quality, lower cost but the best service. As a result to that our API 5L X65 Pipe PSL1 & 2 Pipe export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

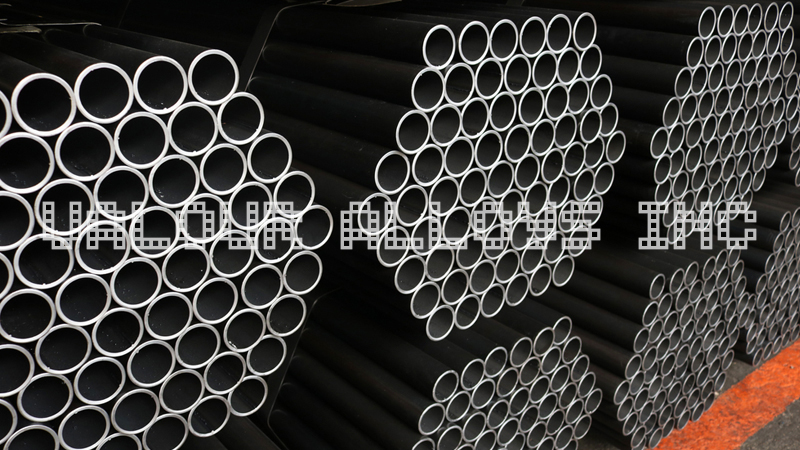

API 5L X65 Pipe PSL1 & 2 Seamless Pipes

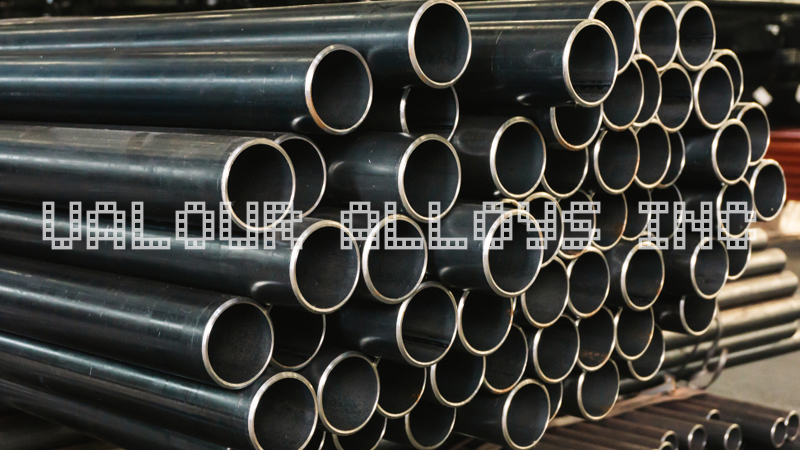

API 5L X65 Pipe PSL1 & 2 Welded Pipes
We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
ISO 15156/ NACE MR0175 API 5L X65 Pipe PSL1 & 2 Pipes supplier in Mumbai, view CS API 5L X65 Pipe PSL1 & 2 Welded Pipe ready stock, dimensions, specification and properties, API 5L X65 Pipe PSL1 & 2 Seamless Pipes Manufacturer.
API 5L X65 Pipe PSL1 (Product Specification Level 1):
General Purpose: PSL1 pipes are primarily designed for general transportation of oil, gas, and water in mild chemical and mechanical environments.
Quality Control: PSL1 pipes have less stringent quality control and testing requirements compared to PSL2. They are typically manufactured with straightforward manufacturing processes.
Chemical Composition: PSL1 pipes have specific limits on chemical composition, including maximum levels of elements such as sulfur and phosphorus.
Mechanical Properties: PSL1 pipes have minimum yield and tensile strength requirements but do not require additional testing for impact resistance and other mechanical properties.
API 5L X65 Pipe PSL2 (Product Specification Level 2):
High Performance: PSL2 pipes are designed for more demanding applications, especially those with harsh operating conditions, high-pressure environments, or where the transportation of critical fluids is involved.
Stringent Testing: PSL2 pipes undergo more rigorous quality control and testing, including non-destructive testing (NDT) for welds, impact testing, and other specialized tests to ensure their reliability and performance.
Chemical Composition: PSL2 pipes have stricter limits on chemical composition compared to PSL1, which helps ensure their suitability for specific applications.
Mechanical Properties: PSL2 pipes have higher minimum yield and tensile strength requirements than PSL1 pipes, along with improved toughness and resistance to cracking.
API 5L X65 Pipe PSL1 and PSL2 are both high-quality steel pipes used in the oil and gas industry, but they differ in terms of their intended applications, quality control, testing requirements, and performance characteristics. PSL2 pipes are generally preferred for more demanding and critical applications, while PSL1 pipes are suitable for standard transportation purposes in less demanding environments.
API 5L X65 Pipe Range
API 5L X65 Pipe Outer Diameter Size | 3/8" NB To 30" NB (Nominal Bore Size) |
API 5L X65 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
API 5L X65 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
API 5L X65 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
API 5L X65 Pipe Specification | API 5L / ISO 3183 Hot Rolled. |
API 5L X65 Pipe Grades | API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2 |
API 5L X65 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
API 5L X65 Pipe Type | EFW (ELECTRIC FUSION WELDED PIPES) |
API 5L X65 Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
API 5L X65 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
API 5L X65 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
API 5L X65 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
API 5L X65 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
API 5L X65 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
API 5L X65 Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc. |
API 5L X65 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition and Mechanical Properties of API 5L X65 Pipe
API 5L GRADE PSL1 PIPE CHECMICAL AND MECHANICAL PROPERTIES | |||||||||
GRADE |
Chemical Composition | Mechanical Property | |||||||
C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 335 | 30 | 210 | |
B | 0.28 | 1.20 | 0.030 | 0.030 | 60 | 415 | 35 | 245 | |
X42 | 0.28 | 1.30 | 0.030 | 0.030 | 60 | 415 | 42 | 290 | |
X46 | 0.28 | 1.40 | 0.030 | 0.030 | 63 | 435 | 46 | 320 | |
X52 | 0.28 | 1.40 | 0.030 | 0.030 | 66 | 460 | 52 | 360 | |
X56 | 0.28 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 390 | |
X60 | 0.28 | 1.40 | 0.030 | 0.030 | 75 | 520 | 60 | 415 | |
X65 | 0.28 | 1.45 | 0.030 | 0.030 | 77 | 535 | 65 | 450 | |
X70 | 0.28 | 1.65 | 0.030 | 0.030 | 82 | 570 | 70 | 485 |
API 5L GRADE PSL2 PIPE CHECMICAL AND MECHANICAL PROPERTIES | ||||||||||||
GRADE | Chemical Composition | Mechanical Property | ||||||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile | Yield | C. E. IMPACT ENERGY | ||||||
Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Other Available Products of API 5L X65 Pipe
CS API X65 Line Pipes Exporter | API 5L Grade X65 Seamless Tubes |
Carbon Steel X65 Line Pipes | Carbon Steel API 5L Grade X65 Pipes |
Carbon Steel API 5L X65 Line Pipe | Carbon Steel X65 ERW Pipes Suppliers |
CS API 5L X65 Line Pipes | Carbon Steel API 5L X65 Line Pipes |
API 5L Grade B X65 Line Pipes Exporter | Carbon Steel API 5L X65 Line Pipes |
API 5L GR. B X65 Pipes Dealer | Carbon Steel API 5L X65 Line Pipes Suppliers |
Carbon Steel API 5L X65 Line Pipes | API 5L GR. B X65 Line Pipes |
Carbon Steel API 5L X65 Line Pipes Manufacturer | API 5L Grade X65 CS Pipes Distributors |
Carbon Steel X65 PSL 2 Welded Pipes Stockholder | Top Quality API 5L Carbon Steel X65 Line Pipes |
Carbon Steel API 5L X65 Pipes | CS X65 Line Pipes Stockiest in India |
Carbon Steel API 5L Grade X65 Welded Pipes | Carbon Steel X65 PSL 1 Line Pipes |
API 5L X65 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We API 5L X65 Pipe PSL1 & 2 with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At API 5L X65 Pipe PSL1 & 2 all types of Such as API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our API 5L X65 Pipe PSL1 & 2 is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All API 5L X65 Pipe PSL1 & 2 are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
