API 5L Grade X42 Pipe, API 5L Gr.X42 Pipe, API 5L Grade X42 Line Pipe, API 5L Grade X42 Seamless Pipe, API 5L Grade X42 PSL1 Pipe, API 5L Grade X42 PSL2 Pipe.
Dealer of API 5L Grade X42 Line Pipe. Our API 5L Grade X42 Pipe is IBR Approved and we are its Dealer, Distributor, Exporter, Supplier in India.
API 5L X42 is a widely used specification for steel pipes in the oil and gas industry. It defines the requirements for seamless and welded steel line pipes that are designed for conveying oil, gas, and water in the petroleum and natural gas industries. The "X" in API 5L X42 stands for the minimum yield strength of the pipe, which is 42,000 psi (290 MPa). These pipes come in two different product specifications: PSL1 (Product Specification Level 1) and PSL2 (Product Specification Level 2).
Valour Alloys Inc., we carry a full inventory of API 5L X42 Pipe PSL1 & 2 Pipe products in a variety of sizes to meet the project piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X42 Pipe PSL1 & 2 Pipes can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in API 5L X42 Pipe PSL1 & 2 Pipe with years of Experience in Manufacturing ASTM A672 C70 EFW Pipe. we offer high quality, lower cost but the best service. As a result to that our API 5L X42 Pipe PSL1 & 2 Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

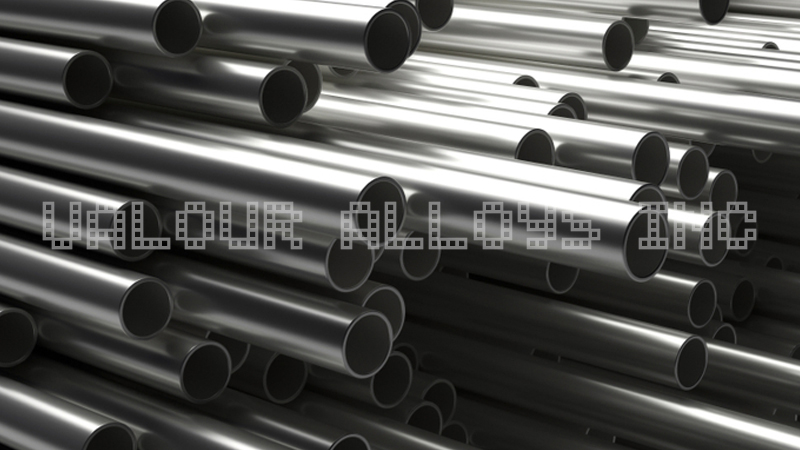

API 5L X42 Pipe PSL1 & 2 Seamless Pipes

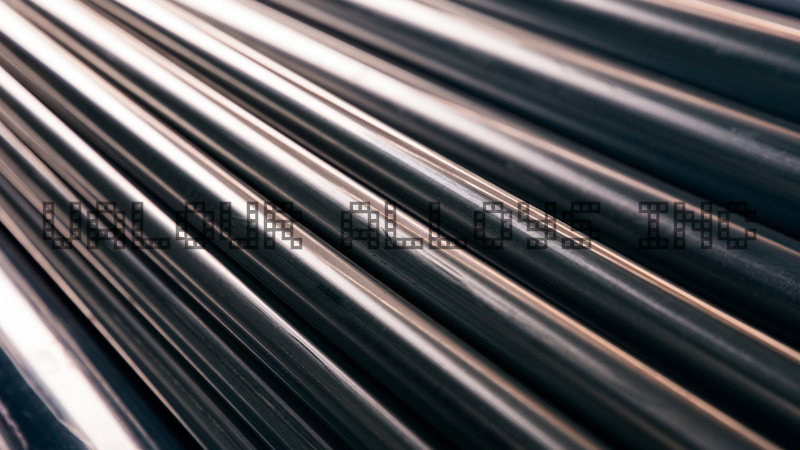

API 5L X42 Pipe PSL1 & 2 Welded Pipes
We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
ISO 15156/ NACE MR0175 API 5L X42 Pipe PSL1 & 2 Pipes supplier in Mumbai, view CS API 5L X42 Pipe PSL1 & 2 Welded Pipe ready stock, dimensions, specification and properties, API 5L X42 Pipe PSL1 & 2 Seamless Pipes Manufacturer.
API 5L X42 Pipe PSL1:
API 5L X42 PSL1 pipes are the standard quality pipes that comply with the basic requirements of the API 5L specification. Here's an introduction to some key aspects of API 5L X42 Pipe PSL1:
Yield Strength: API 5L X42 PSL1 pipes have a minimum yield strength of 42,000 psi, making them suitable for a wide range of applications.
Chemical Composition: These pipes have specific chemical composition requirements, including maximum limits for elements like carbon, manganese, phosphorus, sulfur, and others. These limits are designed to ensure the quality and performance of the pipes.
Manufacturing Process: PSL1 pipes can be either seamless or welded. The manufacturing process must meet specific quality standards to ensure the integrity of the pipes.
Testing and Inspection: API 5L X42 PSL1 pipes undergo various tests and inspections, such as hydrostatic testing, non-destructive testing, and dimensional inspection, to verify their quality and performance.
API 5L X42 Pipe PSL2:
API 5L X42 PSL2 pipes are a higher quality and more rigorous version of the standard, designed for applications where additional quality and performance requirements are necessary. Here's an introduction to some key aspects of API 5L X42 Pipe PSL2:
Yield Strength: Like PSL1 pipes, API 5L X42 PSL2 pipes also have a minimum yield strength of 42,000 psi.
Toughness and Impact Testing: PSL2 pipes have more stringent requirements for toughness and impact resistance, which are critical for pipelines operating in harsh conditions.
Chemical Composition: PSL2 pipes may have tighter chemical composition limits than PSL1 pipes to ensure better performance and corrosion resistance.
Non-Destructive Testing: PSL2 pipes undergo additional non-destructive testing, such as ultrasonic inspection and radiographic examination, to detect any defects or anomalies.
API 5L X42 Pipe PSL1 and PSL2 are two different product specifications for steel line pipes used in the oil and gas industry. PSL2 pipes offer enhanced quality, toughness, and performance characteristics compared to PSL1 pipes, making them suitable for more demanding applications. The choice between PSL1 and PSL2 depends on the specific requirements of the project and the operating conditions.
API 5L X42 Pipe Range
API 5L X42 Pipe Outer Diameter Size | 3/8" NB To 30" NB (Nominal Bore Size) |
API 5L X42 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
API 5L X42 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
API 5L X42 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
API 5L X42 Pipe Specification | API 5L / ISO 3183 Hot Rolled. |
API 5L X42 Pipe Grades | API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2 |
API 5L X42 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
API 5L X42 Pipe Type | EFW (ELECTRIC FUSION WELDED PIPES) |
API 5L X42 Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
API 5L X42 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
API 5L X42 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
API 5L X42 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
API 5L X42 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
API 5L X42 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
API 5L X42 Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc. |
API 5L X42 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition and Mechanical Properties of API 5L X42 Pipe
API 5L GRADE PSL1 PIPE CHECMICAL AND MECHANICAL PROPERTIES | |||||||||
GRADE |
Chemical Composition | Mechanical Property | |||||||
C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 335 | 30 | 210 | |
B | 0.28 | 1.20 | 0.030 | 0.030 | 60 | 415 | 35 | 245 | |
X42 | 0.28 | 1.30 | 0.030 | 0.030 | 60 | 415 | 42 | 290 | |
X46 | 0.28 | 1.40 | 0.030 | 0.030 | 63 | 435 | 46 | 320 | |
X52 | 0.28 | 1.40 | 0.030 | 0.030 | 66 | 460 | 52 | 360 | |
X56 | 0.28 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 390 | |
X60 | 0.28 | 1.40 | 0.030 | 0.030 | 75 | 520 | 60 | 415 | |
X65 | 0.28 | 1.45 | 0.030 | 0.030 | 77 | 535 | 65 | 450 | |
X70 | 0.28 | 1.65 | 0.030 | 0.030 | 82 | 570 | 70 | 485 |
API 5L GRADE PSL2 PIPE CHECMICAL AND MECHANICAL PROPERTIES | ||||||||||||
GRADE | Chemical Composition | Mechanical Property | ||||||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile | Yield | C. E. IMPACT ENERGY | ||||||
Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Other Available Products of API 5L X42 Pipe
CS API X42 Line Pipes Exporter | API 5L Grade X42 Seamless Tubes |
Carbon Steel X42 Line Pipes | Carbon Steel API 5L Grade X42 Pipes |
Carbon Steel API 5L X42 Line Pipe | Carbon Steel X42 ERW Pipes Suppliers |
CS API 5L X42 Line Pipes | Carbon Steel API 5L X42 Line Pipes |
API 5L Grade B X60 Line Pipes Exporter | Carbon Steel API 5L X42 Line Pipes |
API 5L GR. B X42 Pipes Dealer | Carbon Steel API 5L X42 Line Pipes Suppliers |
Carbon Steel API 5L X42 Line Pipes | API 5L GR. B X42 Line Pipes |
Carbon Steel API 5L X42 Line Pipes Manufacturer | API 5L Grade X42 CS Pipes Distributors |
Carbon Steel X42 PSL 2 Welded Pipes Stockholder | Top Quality API 5L Carbon Steel X42 Line Pipes |
Carbon Steel API 5L X42 Pipes | CS X42 Line Pipes Stockiest in India |
Carbon Steel API 5L Grade X42 Welded Pipes | Carbon Steel X42 PSL 1 Line Pipes |
API 5L X42 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We API 5L X42 Pipe PSL1 & 2 with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At API 5L X42 Pipe PSL1 & 2 all types of Such as API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our API 5L X42 Pipe PSL1 & 2 is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All API 5L X42 Pipe PSL1 & 2 are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying API 5L X42 Pipe to Countries -
We Export API 5L X42 Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing API 5L X42 Pipe to Cities -
We Export API 5L X42 Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
