API 5L Grade X52 Pipe, API 5L Gr.X52 Pipe, API 5L Grade X52 Line Pipe, API 5L Grade X52 Seamless Pipe, API 5L Grade X52 PSL1 Pipe, API 5L Grade X52 PSL2 Pipe.
Dealer of API 5L Grade X52 Line Pipe. Our API 5L Grade X52 Pipe is IBR Approved and we are its Dealer, Distributor, Exporter, Supplier in India.
API 5L X52 Pipe is a widely used steel pipe specification in the oil and gas industry. It is part of the API 5L standard, which is developed and maintained by the American Petroleum Institute (API). This standard defines the requirements for the manufacture of seamless and welded steel pipes suitable for conveying fluids such as oil, gas, water, and other hydrocarbon-based substances.
Valour Alloys Inc., we carry a full inventory of API 5L X52 Pipe PSL1 & 2 Pipes products in a variety of sizes to meet the project piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X52 Pipe PSL1 & 2 can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in API 5L X52 Pipe PSL1 & 2 Pipes with years of Experience in Manufacturing ASTM A672 C70 EFW Pipe. we offer high quality, lower cost but the best service. As a result to that our API 5L X52 Pipe PSL1 & 2 Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

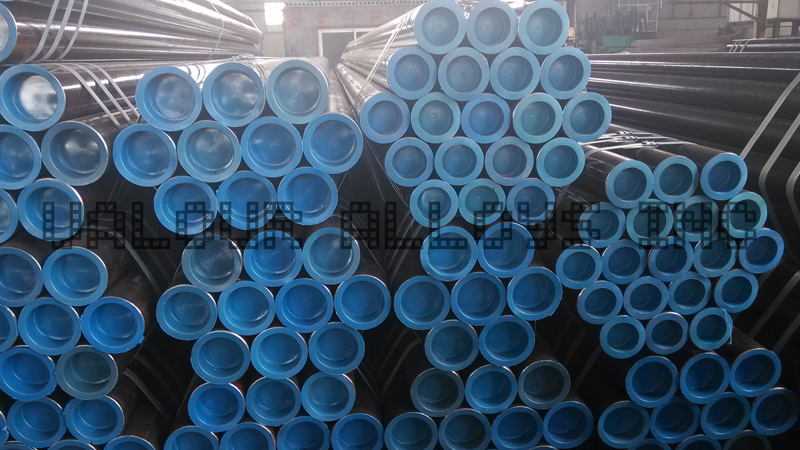

API 5L X52 Pipe PSL1 & 2 Seamless Pipes

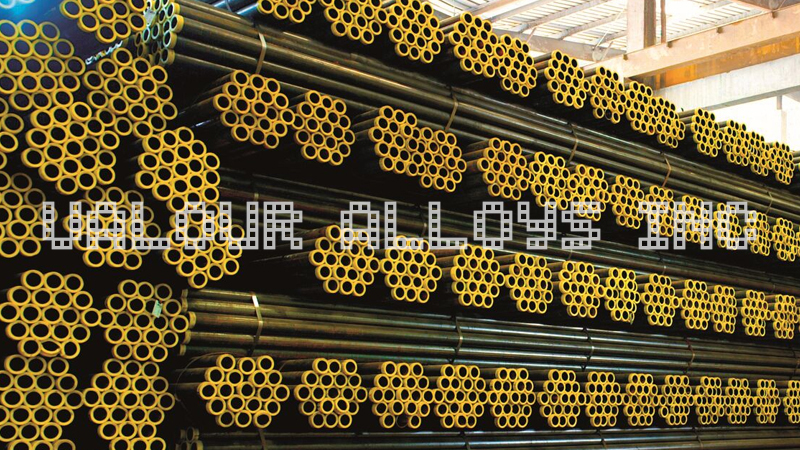

API 5L X52 Pipe PSL1 & 2 Welded Pipes
We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
ISO 15156/ NACE MR0175 API 5L X52 Pipe PSL1 & 2 Pipes supplier in Mumbai, view CS API 5L X52 Pipe PSL1 & 2 Welded Pipe ready stock, dimensions, specification and properties, API 5L X52 Pipe PSL1 & 2 Seamless Pipes Manufacturer.
API 5L X52 Pipe comes in two different product specifications, known as PSL1 (Product Specification Level 1) and PSL2 (Product Specification Level 2). These specifications are designed to meet various requirements for different applications and environmental conditions in the oil and gas industry.
API 5L X52 Pipe PSL1:
API 5L X52 Pipe PSL1 is the standard specification that covers seamless and welded steel pipes with basic requirements for quality, performance, and testing. Here are some key features of API 5L X52 Pipe PSL1:
Chemical Composition: The PSL1 specification defines strict limits on the chemical composition of the steel, including maximum levels of carbon, manganese, sulfur, and phosphorus. This ensures the integrity of the pipe material.
Mechanical Properties: PSL1 pipes have specific requirements for mechanical properties such as yield strength, tensile strength, and elongation. These properties are crucial for pipe integrity and reliability.
Non-Destructive Testing: PSL1 requires non-destructive testing methods like ultrasonic inspection or radiographic examination to ensure the quality of welds and the absence of defects.
Hydrostatic Testing: Hydrostatic testing is mandatory for PSL1 pipes to check for leaks and weaknesses in the pipe's structure.
Suitable for General Applications: API 5L X52 Pipe PSL1 is suitable for general applications in the oil and gas industry where the transportation of hydrocarbons is not subject to stringent requirements.
API 5L X52 Pipe PSL2:
API 5L X52 Pipe PSL2 is a higher specification level compared to PSL1 and is designed to meet more stringent requirements for critical applications. Here are some key features of API 5L X52 Pipe PSL2:
Enhanced Quality Control: PSL2 imposes stricter quality control measures, including additional chemical composition restrictions and more comprehensive testing.
Tougher Testing: PSL2 requires additional non-destructive testing, including transverse or longitudinal weld testing, to ensure the highest level of weld integrity.
Charpy Impact Testing: PSL2 requires Charpy V-notch impact testing at low temperatures to evaluate the material's toughness, especially important in harsh operating conditions.
Sour Service Compatibility: PSL2 includes requirements for resistance to hydrogen sulfide (H2S) corrosion, making it suitable for sour service environments.
Higher Performance: PSL2 pipes are ideal for critical applications where safety, reliability, and performance are paramount.
API 5L X52 Pipe PSL1 and PSL2 are two different specifications of steel pipes used in the oil and gas industry. PSL1 is suitable for general applications, while PSL2 is designed for more demanding and critical situations, offering higher performance and quality standards. The choice between PSL1 and PSL2 depends on the specific requirements and conditions of the project.
API 5L X52 Pipe Range
| API 5L X52 Pipe Outer Diameter Size | 3/8" NB To 30" NB (Nominal Bore Size) |
| API 5L X52 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
| API 5L X52 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| API 5L X52 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
| API 5L X52 Pipe Specification | API 5L / ISO 3183 Hot Rolled. |
| API 5L X52 Pipe Grades | API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2 |
| API 5L X52 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
| API 5L X52 Pipe Type | EFW (ELECTRIC FUSION WELDED PIPES) |
| API 5L X52 Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
| API 5L X52 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
| API 5L X52 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
| API 5L X52 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| API 5L X52 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| API 5L X52 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| API 5L X52 Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc. |
| API 5L X52 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition and Mechanical Properties of API 5L X52 Pipe
| API 5L GRADE PSL1 PIPE CHECMICAL AND MECHANICAL PROPERTIES | |||||||||
GRADE |
Chemical Composition | Mechanical Property | |||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
| A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
| CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 335 | 30 | 210 | |
| B | 0.28 | 1.20 | 0.030 | 0.030 | 60 | 415 | 35 | 245 | |
| X42 | 0.28 | 1.30 | 0.030 | 0.030 | 60 | 415 | 42 | 290 | |
| X46 | 0.28 | 1.40 | 0.030 | 0.030 | 63 | 435 | 46 | 320 | |
| X52 | 0.28 | 1.40 | 0.030 | 0.030 | 66 | 460 | 52 | 360 | |
| X56 | 0.28 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 390 | |
| X60 | 0.28 | 1.40 | 0.030 | 0.030 | 75 | 520 | 60 | 415 | |
| X65 | 0.28 | 1.45 | 0.030 | 0.030 | 77 | 535 | 65 | 450 | |
| X70 | 0.28 | 1.65 | 0.030 | 0.030 | 82 | 570 | 70 | 485 | |
| API 5L GRADE PSL2 PIPE CHECMICAL AND MECHANICAL PROPERTIES | ||||||||||||
| GRADE | Chemical Composition | Mechanical Property | ||||||||||
| C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile | Yield | C. E. IMPACT ENERGY | ||||||
| Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
| B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Other Available Products of API 5L X52 Pipe
| CS API X52 Line Pipes Exporter | API 5L Grade X52 Seamless Tubes |
| Carbon Steel X52 Line Pipes | Carbon Steel API 5L Grade X52 Pipes |
| Carbon Steel API 5L X52 Line Pipe | Carbon Steel X52 ERW Pipes Suppliers |
| CS API 5L X52 Line Pipes | Carbon Steel API 5L X52 Line Pipes |
| API 5L Grade B X52 Line Pipes Exporter | Carbon Steel API 5L X52 Line Pipes |
| API 5L GR. B X52 Pipes Dealer | Carbon Steel API 5L X52 Line Pipes Suppliers |
| Carbon Steel API 5L X52 Line Pipes | API 5L GR. B X52 Line Pipes |
| Carbon Steel API 5L X52 Line Pipes Manufacturer | API 5L Grade X52 CS Pipes Distributors |
| Carbon Steel X52 PSL 2 Welded Pipes Stockholder | Top Quality API 5L Carbon Steel X52 Line Pipes |
| Carbon Steel API 5L X52 Pipes | CS X52 Line Pipes Stockiest in India |
| Carbon Steel API 5L Grade X52 Welded Pipes | Carbon Steel X52 PSL 1 Line Pipes |
API 5L X52 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We API 5L X52 Pipe PSL1 & 2 with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At API 5L X52 Pipe PSL1 & 2 all types of Such as API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our API 5L X52 Pipe PSL1 & 2 is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All API 5L X52 Pipe PSL1 & 2 are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying API 5L X52 Pipe to Countries -
We Export API 5L X52 Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing API 5L X52 Pipe to Cities -
We Export API 5L X52 Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
