API 5L Grade X46 Pipe, API 5L Gr.X46 Pipe, API 5L Grade X46 Line Pipe, API 5L Grade X46 Seamless Pipe, API 5L Grade X46 PSL1 Pipe, API 5L Grade X46 PSL2 Pipe.
Dealer of API 5L Grade X46 Line Pipe. Our API 5L Grade X46 Pipe is IBR Approved and we are its Dealer, Distributor, Exporter, Supplier in India.
API 5L X46 is a type of steel pipe that is used in the transportation of natural gas, oil, and other fluids in the petroleum and natural gas industries. It is part of the API 5L standard, which is a set of specifications developed by the American Petroleum Institute (API) to regulate the manufacturing and use of steel pipes for these purposes. API 5L X46 pipes are available in two different product specifications: PSL1 and PSL2.
Valour Alloys Inc., we carry a full inventory of API 5L X46 Pipe PSL1 & 2 Pipe products in a variety of sizes to meet the project piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X46 Pipe PSL1 & 2 Pipes can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We are specializes in API 5L X46 Pipe PSL1 & 2 Pipe with years of Experience in Manufacturing ASTM A672 C70 EFW Pipe. we offer high quality, lower cost but the best service. As a result to that our API 5L X46 Pipe PSL1 & 2 Pipe export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

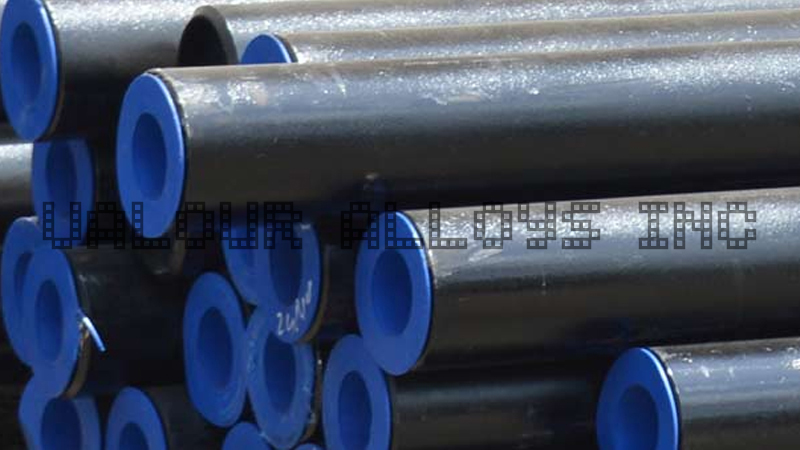

API 5L X46 Pipe PSL1 & 2 Seamless Pipes

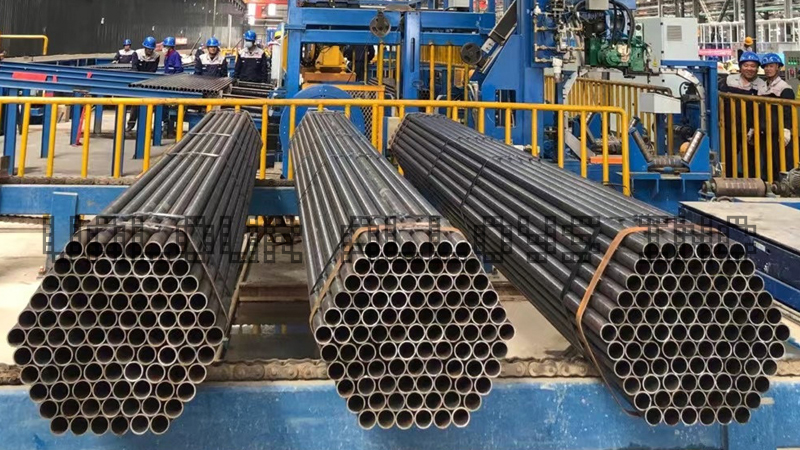

API 5L X46 Pipe PSL1 & 2 Welded Pipes
We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
ISO 15156/ NACE MR0175 API 5L X46 Pipe PSL1 & 2 Pipes supplier in Mumbai, view CS API 5L X46 Pipe PSL1 & 2 Welded Pipe ready stock, dimensions, specification and properties, API 5L X46 Pipe PSL1 & 2 Seamless Pipes Manufacturer.
API 5L X46 Pipe PSL1:
Purpose: PSL1 stands for "Product Specification Level 1," and it is the standard specification for API 5L X46 pipes. PSL1 pipes are designed for general transportation and conveyance of fluids such as oil and gas.
Manufacturing: PSL1 pipes are manufactured with basic quality requirements. They have minimal mechanical properties and are suitable for less demanding applications.
Chemical Composition: PSL1 pipes have specific chemical composition requirements that ensure the steel's durability and resistance to corrosion.
Mechanical Properties: PSL1 pipes have lower mechanical property requirements compared to PSL2 pipes. This makes them suitable for applications where high strength is not a critical factor.
Testing: PSL1 pipes undergo basic quality control tests, including non-destructive testing and hydrostatic testing, to ensure their integrity.
API 5L X46 Pipe PSL2:
Purpose: PSL2 stands for "Product Specification Level 2." PSL2 pipes are designed for more demanding applications where higher performance and quality control are required.
Manufacturing: PSL2 pipes are manufactured with stricter quality requirements, including more precise chemical composition and manufacturing processes.
Chemical Composition: PSL2 pipes have tighter chemical composition limits to ensure better resistance to corrosion and improved performance in harsh environments.
Mechanical Properties: PSL2 pipes have higher mechanical property requirements compared to PSL1 pipes, making them suitable for applications where higher strength and toughness are necessary.
Testing: PSL2 pipes undergo more rigorous testing, including additional non-destructive tests, impact testing at lower temperatures, and strict quality control measures to ensure their reliability and safety.
API 5L X46 Pipe PSL1 and PSL2 are two different product specifications for steel pipes used in the oil and gas industry. PSL1 pipes are suitable for standard transportation applications, while PSL2 pipes are designed for more demanding and critical environments. The choice between PSL1 and PSL2 depends on the specific requirements of the project and the operating conditions.
API 5L X46 Pipe Range
API 5L X46 Pipe Outer Diameter Size | 3/8" NB To 30" NB (Nominal Bore Size) |
API 5L X46 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
API 5L X46 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
API 5L X46 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
API 5L X46 Pipe Specification | API 5L / ISO 3183 Hot Rolled. |
API 5L X46 Pipe Grades | API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2 |
API 5L X46 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
API 5L X46 Pipe Type | EFW (ELECTRIC FUSION WELDED PIPES) |
API 5L X46 Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
API 5L X46 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
API 5L X46 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
API 5L X46 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
API 5L X46 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
API 5L X46 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
API 5L X46 Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc. |
API 5L X46 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition and Mechanical Properties of API 5L X46 Pipe
API 5L GRADE PSL1 PIPE CHECMICAL AND MECHANICAL PROPERTIES | |||||||||
GRADE |
Chemical Composition | Mechanical Property | |||||||
C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 335 | 30 | 210 | |
B | 0.28 | 1.20 | 0.030 | 0.030 | 60 | 415 | 35 | 245 | |
X42 | 0.28 | 1.30 | 0.030 | 0.030 | 60 | 415 | 42 | 290 | |
X46 | 0.28 | 1.40 | 0.030 | 0.030 | 63 | 435 | 46 | 320 | |
X52 | 0.28 | 1.40 | 0.030 | 0.030 | 66 | 460 | 52 | 360 | |
X56 | 0.28 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 390 | |
X60 | 0.28 | 1.40 | 0.030 | 0.030 | 75 | 520 | 60 | 415 | |
X65 | 0.28 | 1.45 | 0.030 | 0.030 | 77 | 535 | 65 | 450 | |
X70 | 0.28 | 1.65 | 0.030 | 0.030 | 82 | 570 | 70 | 485 |
API 5L GRADE PSL2 PIPE CHECMICAL AND MECHANICAL PROPERTIES | ||||||||||||
GRADE | Chemical Composition | Mechanical Property | ||||||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile | Yield | C. E. IMPACT ENERGY | ||||||
Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Other Available Products of API 5L X46 Pipe
CS API X46 Line Pipes Exporter | API 5L Grade X46 Seamless Tubes |
Carbon Steel X46 Line Pipes | Carbon Steel API 5L Grade X46 Pipes |
Carbon Steel API 5L X46 Line Pipe | Carbon Steel X46 ERW Pipes Suppliers |
CS API 5L X46 Line Pipes | Carbon Steel API 5L X46 Line Pipes |
API 5L Grade B X46 Line Pipes Exporter | Carbon Steel API 5L X46 Line Pipes |
API 5L GR. B X46 Pipes Dealer | Carbon Steel API 5L X46 Line Pipes Suppliers |
Carbon Steel API 5L X46 Line Pipes | API 5L GR. B X46 Line Pipes |
Carbon Steel API 5L X46 Line Pipes Manufacturer | API 5L Grade X46 CS Pipes Distributors |
Carbon Steel X46 PSL 2 Welded Pipes Stockholder | Top Quality API 5L Carbon Steel X46 Line Pipes |
Carbon Steel API 5L X46 Pipes | CS X46 Line Pipes Stockiest in India |
Carbon Steel API 5L Grade X46 Welded Pipes | Carbon Steel X46 PSL 1 Line Pipes |
API 5L X46 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We API 5L X46 Pipe PSL1 & 2 with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At API 5L X46 Pipe PSL1 & 2 all types of Such as API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our API 5L X46 Pipe PSL1 & 2 is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All API 5L X46 Pipe PSL1 & 2 are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying API 5L X46 Pipe to Countries -
We Export API 5L X46 Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing API 5L X46 Pipe to Cities -
We Export API 5L X46 Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
