API 5L Grade X56 Pipe, API 5L Gr.X56 Pipe, API 5L Grade X56 Line Pipe, API 5L Grade X56 Seamless Pipe, API 5L Grade X56 PSL1 Pipe, API 5L Grade X56 PSL2 Pipe.

Dealer of API 5L Grade X56 Line Pipe. Our API 5L Grade X56 Pipe is IBR Approved and we are its Dealer, Distributor, Exporter, Supplier in India.

API 5L X56 is a widely used specification for steel pipes in the oil and natural gas industry. It defines the requirements for seamless and welded steel pipes that are suitable for conveying gas, water, and oil. These pipes are typically used in pipelines for the transportation of petroleum and natural gas, as well as in various industrial applications. API 5L X56 pipes come in two different product specification levels (PSL)

Valour Alloys Inc., we carry a full inventory of API 5L X56 Pipe PSL1 & 2 Pipes products in a variety of sizes to meet the project piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X56 Pipe PSL1 & 2 Pipes can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

We are specializes in API 5L X56 Pipe PSL1 & 2 Pipes with years of Experience in Manufacturing ASTM A672 C70 EFW Pipe. we offer high quality, lower cost but the best service. As a result to that our API 5L X56 Pipe PSL1 & 2 Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

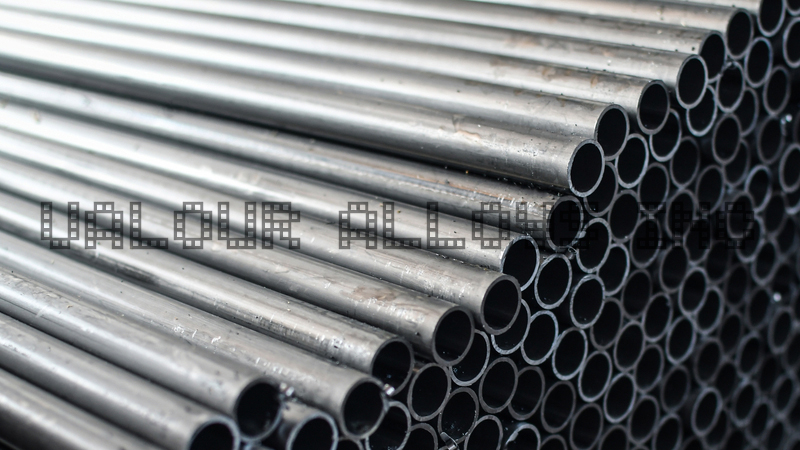

API 5L X56 Pipe PSL1 & 2 Seamless Pipes Supplier Manufacturer

API 5L X56 Pipe PSL1 & 2 Seamless Pipes

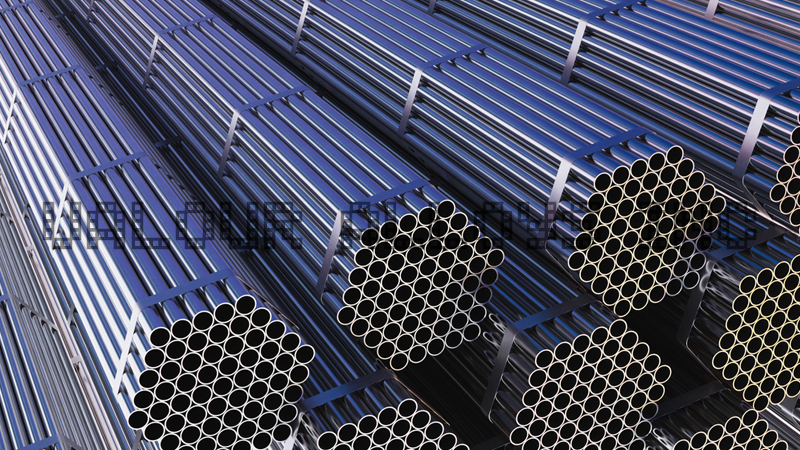

API 5L X56 Pipe PSL1 & 2 Weldeds Pipes Supplier Manufacturer

API 5L X56 Pipe PSL1 & 2 Welded Pipes

We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.

ISO 15156/ NACE MR0175 API 5L X56 Pipe PSL1 & 2 Pipes supplier in Mumbai, view CS API 5L X56 Pipe PSL1 & 2 Welded Pipe ready stock, dimensions, specification and properties, API 5L X56 Pipe PSL1 & 2 Seamless Pipes Manufacturer.

API 5L X56 Pipe PSL1:
API 5L X56 PSL1 pipes are the standard quality pipes designed for general applications in the oil and gas industry. Here are some key features and requirements of PSL1 pipes:

Chemical Composition: PSL1 pipes have relatively simpler chemical composition requirements compared to PSL2. They are designed to ensure basic properties and minimal impurities in the steel.

Mechanical Properties: PSL1 pipes have less stringent mechanical property requirements, making them suitable for less demanding applications. The primary focus is on ensuring sufficient strength and ductility.

Testing: PSL1 pipes undergo basic quality control tests, including non-destructive testing such as ultrasonic testing and hydrostatic testing. However, additional testing such as Charpy V-notch impact testing is not mandatory for PSL1.

API 5L X56 Pipe PSL2:
API 5L X56 PSL2 pipes are designed for more demanding applications where enhanced properties and performance are required. Here are some key features and requirements of PSL2 pipes:

Chemical Composition: PSL2 pipes have stricter chemical composition requirements compared to PSL1. They have lower maximum levels of impurities to ensure better corrosion resistance and weldability.

Mechanical Properties: PSL2 pipes have higher requirements for mechanical properties such as yield strength, tensile strength, and impact toughness. This ensures they can withstand more challenging operating conditions.

Testing: PSL2 pipes undergo more extensive testing, including additional non-destructive testing and Charpy V-notch impact testing at lower temperatures. This testing ensures the pipes can perform well even in harsh environments.

API 5L X56 pipes are an essential component of the oil and gas industry's infrastructure, used for the safe and efficient transportation of hydrocarbons. PSL1 pipes are suitable for standard applications, while PSL2 pipes offer improved properties and performance for more demanding environments. The choice between PSL1 and PSL2 depends on the specific requirements of the project and the operating conditions.

API 5L X56 Pipe Range

API 5L X56 Pipe Outer Diameter Size 3/8" NB To 30" NB (Nominal Bore Size)
API 5L X56 Pipe Wall Thickness Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
API 5L X56 Pipe Length 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
API 5L X56 Pipe Ends Plain Ends / Beveled Ends / Coupling
API 5L X56 Pipe Specification API 5L / ISO 3183 Hot Rolled.
API 5L X56 Pipe Grades API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2
API 5L X56 Pipe Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
API 5L X56 Pipe Type EFW (ELECTRIC FUSION WELDED PIPES)
API 5L X56 Pipe Delivery Conditions As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
API 5L X56 Pipe Coating Epoxy Coating / Colour Paint Coating / 3LPE Coating.
API 5L X56 Pipe Machinery Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc.
API 5L X56 Pipe Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
API 5L X56 Pipe Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
API 5L X56 Pipe Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
API 5L X56 Pipe Other Testing NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc.
API 5L X56 Pipe Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Chemical Composition and Mechanical Properties of API 5L X56 Pipe

API 5L GRADE PSL1 PIPE CHECMICAL AND MECHANICAL PROPERTIES
GRADE
Chemical Composition Mechanical Property
C (Max) Mn (Max) P (Max) S (Max) TENSILE ( Min ) YIELD ( Min )
Psi X 1000 Mpa Psi X 1000 Mpa
A25 CL     I 0.21 0.60 0.030 0.030 45 310 25 172
CL   II 0.21 0.60 0.030 0.030
A 0.22 0.90 0.030 0.030 48 335 30 210
B 0.28 1.20 0.030 0.030 60 415 35 245
X42 0.28 1.30 0.030 0.030 60 415 42 290
X46 0.28 1.40 0.030 0.030 63 435 46 320
X52 0.28 1.40 0.030 0.030 66 460 52 360
X56 0.28 1.40 0.030 0.030 71 490 56 390
X60 0.28 1.40 0.030 0.030 75 520 60 415
X65 0.28 1.45 0.030 0.030 77 535 65 450
X70 0.28 1.65 0.030 0.030 82 570 70 485

API 5L GRADE PSL2 PIPE CHECMICAL AND MECHANICAL PROPERTIES
GRADE Chemical Composition Mechanical Property
C
(Max)
Mn
(Max)
P
(Max)
S
(Max)
Tensile Yield C. E.           IMPACT ENERGY
Psi x 1000 Mpa Psi x 1000 Mpa PCM IIW J FT/LB
B 0.22 1.20 0.025 0.015 60 - 110 414 - 758 35 - 65 241 - 448 0.25 0.43 T/L 27/41 T/L 20/30
X42 0.22 1.30 0.025 0.015 60 - 110 414 - 758 42 - 72 290 - 496 0.25 0.43 T/L 27/41 T/L 20/30
X46 0.22 1.40 0.025 0.015 63 - 110 434 - 758 46 - 76 317 - 524 0.25 0.43 T/L 27/41 T/L 20/30
X52 0.22 1.40 0.025 0.015 66 - 110 455 - 758 52 - 77 359 - 531 0.25 0.43 T/L 27/41 T/L 20/30
X56 0.22 1.40 0.025 0.015 71 - 110 490 - 758 56 - 79 386 - 544 0.25 0.43 T/L 27/41 T/L 20/30
X60 0.22 1.40 0.025 0.015 75 - 110 517 - 758 60 - 82 414 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X65 0.22 1.45 0.025 0.015 77 - 110 531 - 758 65 - 82 448 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X70 0.22 1.65 0.025 0.015 82 - 110 565 - 758 70 - 82 483 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X80 0.22 1.90 0.025 0.015 90 - 120 621 - 827 80 - 102 552 - 705 0.25 0.43 T/L 27/41 T/L 20/30

Other Available Products of API 5L X56 Pipe

CS API X52 Line Pipes Exporter API 5L Grade X52 Seamless Tubes
Carbon Steel X52 Line Pipes Carbon Steel API 5L Grade X52 Pipes
Carbon Steel API 5L X52 Line Pipe Carbon Steel X52 ERW Pipes Suppliers
CS API 5L X52 Line Pipes Carbon Steel API 5L X52 Line Pipes
API 5L Grade B X52 Line Pipes Exporter Carbon Steel API 5L X52 Line Pipes
API 5L GR. B X52 Pipes Dealer Carbon Steel API 5L X52 Line Pipes Suppliers
Carbon Steel API 5L X52 Line Pipes API 5L GR. B X52 Line Pipes
Carbon Steel API 5L X52 Line Pipes Manufacturer API 5L Grade X52 CS Pipes Distributors
Carbon Steel X52 PSL 2 Welded Pipes Stockholder Top Quality API 5L Carbon Steel X52 Line Pipes
Carbon Steel API 5L X52 Pipes CS X52 Line Pipes Stockiest in India
Carbon Steel API 5L Grade X52 Welded Pipes Carbon Steel X52 PSL 1 Line Pipes

API 5L X56 Pipe Application

  • Oil and Gas equipments
  • Offshore Technology
  • Seawater Desalination Plants
  • Chemical Industry
  • Airport, Malls, Buildings
  • Storage Tanks
  • Medical Industry
  • Civil Engineering
  • Pressure vessels, Reactor tanks, and Heat exchangers
  • Rotors, impellers and shafts
  • Power Plants
  • Petrochemical
  • Shipbuilding Industry
  • Mining Industry
  • Food Equipments Industry

Test Certificates

We API 5L X56 Pipe PSL1 & 2 with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.

Quality Assurance

At API 5L X56 Pipe PSL1 & 2 all types of Such as API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.

Marking & Packing

Our API 5L X56 Pipe PSL1 & 2 is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All API 5L X56 Pipe PSL1 & 2 are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements

Supplying API 5L X56 Pipe to Countries -

We Export API 5L X56 Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.

Distributing API 5L X56 Pipe to Cities -

We Export API 5L X56 Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
