ASME SA/A672 is a specification that pertains to electric-fusion-welded steel pipe for high-pressure service at moderate temperatures. It is part of the American Society of Mechanical Engineers (ASME) standards, which are widely recognized and used in the design, manufacturing, and inspection of various mechanical and engineering components, including pipes.

Valour Alloys Inc., we carry a full inventory of ASME SA / A672 Pipe and Supply ASME SA / A672 Pipe products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.

We are specializes in ASME SA / A672 Pipe with years of Experience in Manufacturing ASME SA / A672 Pipe. we offer high quality, lower cost but the best service. As a result to that our ASME SA / A672 Pipe export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

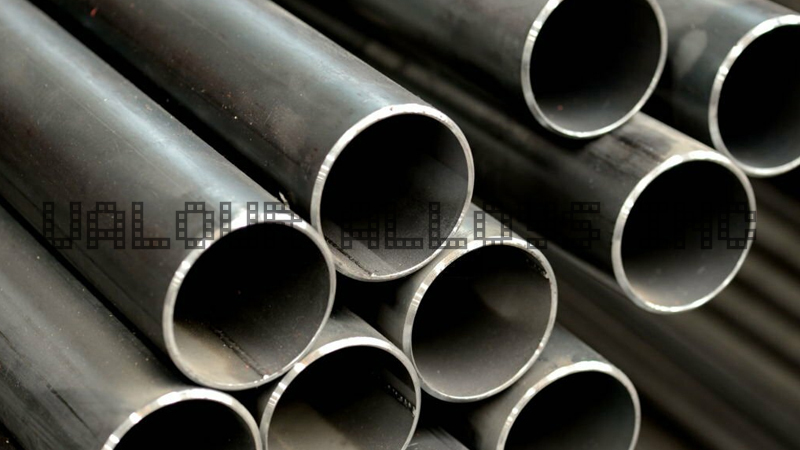

ASME SA / A672 Pipe Manufacturer

ASME SA / A672 Pipe Manufacturer

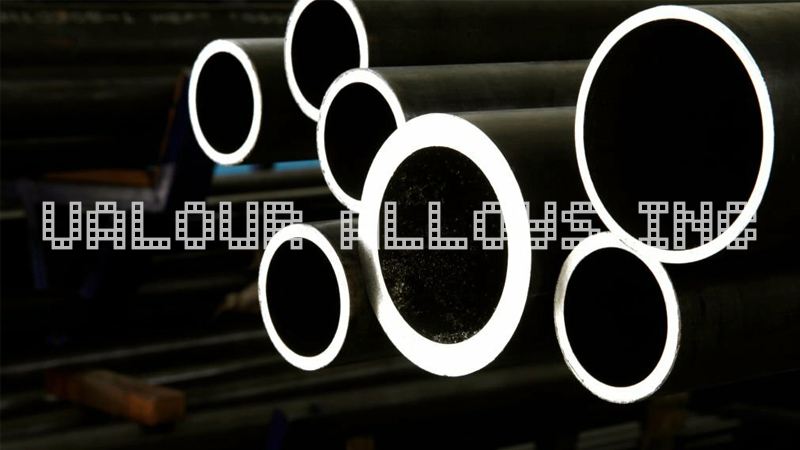

ASME SA / A672 Pipe Exporter

ASME SA / A672 Pipe Exporter

Purpose and Application: ASME SA/A672 pipes are primarily designed for use in high-pressure applications where elevated temperatures are involved. These pipes are used in industries such as power generation, petrochemical, chemical processing, and other applications where high-pressure transportation of fluids is required.

Material: These pipes are typically made from low carbon or low-alloy steel materials. The choice of material depends on the specific requirements of the application, including temperature, pressure, and corrosion resistance.

Manufacturing Process: ASME SA/A672 pipes are manufactured using the electric-fusion-welding process, which involves melting the edges of the steel plates or coils and then fusing them together using an electric arc. This process ensures strong, durable, and reliable welds.

Size and Dimensions: The specification covers a range of pipe sizes and dimensions, including different wall thicknesses and diameters, to accommodate various industrial requirements.

Grades and Classes: ASME SA/A672 pipes are classified into different grades and classes based on their mechanical properties and intended use. These grades and classes help in selecting the appropriate pipe for a specific application.

Testing and Inspection: The specification also outlines rigorous testing and inspection requirements to ensure the quality and integrity of the pipes. These tests may include hydrostatic testing, non-destructive testing (such as radiographic or ultrasonic examination), and mechanical property testing.

Compliance: ASME SA/A672 pipes must comply with the standards and specifications outlined in the ASME Boiler and Pressure Vessel Code (BPVC). Compliance ensures that the pipes meet the necessary safety and quality standards.

End Connections: These pipes may have various types of end connections, such as plain ends, beveled ends, or threaded ends, depending on the application and the joining method required.

ASME SA/A672 pipes are designed to meet the stringent requirements of high-pressure, moderate-temperature applications in various industries. They are manufactured using electric-fusion welding techniques, tested thoroughly, and classified into different grades to suit specific needs. These pipes play a crucial role in ensuring the safe and efficient transport of fluids in industrial settings.

Valour Alloys Products stocks A672 EFW pipe in the grades and classes listed on the following tables:

Plate specification
Pipe gradeType of steelASTM specification
No.Grade
A 45plain carbonA285 / A285MA
A50plain carbonA285 / A285MB
A 55plain carbonA285 / A285MC
B 60plain carbon, killedA515 / A515M60
B 65plain carbon, killedA515 / A515M65
B 70plain carbon, killedA515 / A515M70
C 55plain carbon, killed, fine grainA516 / A516M55
C 60plain carbon, killed, fine grainA516 / A516M60
C 65plain carbon, killed, fine grainA516 / A516M65
C 70plain carbon, killed, fine grainA516 / A516M70
D 70manganese-silicon, normalizedA537 / A537M1
D 80manganese-silicon, Q&TAA537 / A537M2
H 75manganese-molybdenum, normalizedA302 / A302MA
H 80manganese-molybdenum, normalizedA302 / A302MB, C or D
J 80manganese-molybdenum, Q&TA533 / A533MCl-1B
J 90manganese-molybdenum, Q&TA533 / A533MCl-2B
J 100manganese-molybdenum, Q&TA533 / A533MCl-3B
K 75chromium-manganese-siliconA202 / A202MA
K 85chromium-manganese-siliconA202 / A202MB
L 65molybdenumA204 / A204MA
L 70molybdenumA204 / A204MB
L 75molybdenumA204 / A204MC
N 75manganese-siliconA299 / A299M
AQ&T = quenched and tempered
BAny grade may be furnished

ClassHeat treatment of pipeRadiographyPressure test
10nonenono
11noneyesno
12noneyesyes
13nonenoyes
20stress relievednono
21stress relievedyesno
22stress relievedyesyes
23stress relievednoyes
30normalizednono
31normalizedyesno
32normalizedyesyes
33normalizednoyes
40normalized and temperednono
41normalized and temperedyesno
42normalized and temperedyesyes
43normalized and temperednoneyes
50quenched and temperednonenone
51quenched and temperedyesnone
52quenched and temperedyesyes
53quenched and temperednoneyes

Scope

This specification covers steel pipe 16 inches in outside diameter or larger that is electric fusion welded (EFW) with filler metal added, fabricated from pressure vessel quality plate and suitable for high-pressure service at moderate temperatures. Several grades designate the type of plate used; classes designate the type of heat treatment performed during the manufacture of the pipe, whether the weld is radiographically examined, and if the pipe has been pressure tested.

Chemical composition

Product analysis of plate: The pipe manufacturer shall make an analysis of each mill heat of plate material. The product analysis shall meet the requirements of the plate specification to which the material was ordered.

Product analysis of weld: The pipe manufacturer shall make an analysis of the finished deposited weld material from each 500 feet or fraction thereof. Analysis shall conform to the welding procedure for deposited weld metal.

Heat treatment

Classes 10, 11, 12 and 13 are not heat treated. All other classes must be heat treated according to the parameters shown below:

Heat treatment parametersA
Pipe gradeBSpecification and gradeCPost-weld heat treatment temperature range °F (°C)Normalizing temperature, max, °F (°C)Quenching temperature, max, °F (°C)Tempering temperature, min, °F (°C)
A 45A285A1100-1250 (590-680)1700 (925)
A 50A285B1100-1250 (590-680)1700 (925)
A 55A285C1100-1250 (590-680)1700 (925)
B 60A515-601100-1250 (590-680)1750 (950)
B 65A515-651100-1250 (590-680)1750 (950)
B 70A515-701100-1250 (590-680)1750 (950)
C 55A516-551100-1250 (590-680)1700 (925)1650 (900)1200 (650)
C 60A516-601100-1250 (590-680)1700 (925)1650 (900)1200 (650)
C 65A516-651100-1250 (590-680)1700 (925)1650 (900)1200 (650)
C 70A516-701100-1250 (590-680)1700 (925)1650 (900)1200 (650)
D 70A537-11100-1250 (590-680)1700 (925)
D 80A537-21100-1250 (590-680)1650 (900)1200 (650)
H 75A302-A1100-1250 (590-680)1800 (980)1100 (590)
H 80A302-B, C or D1100-1250 (590-680)1800 (980)1100 (590)
J 80A533-C11C1100-1250 (590-680)1800 (980)1100 (590)
J 90A533-C12C1100-1250 (590-680)1800 (980)1100 (590)
J 100A533-C13C1100-1250 (590-680)1800 (980)1100 (590)
K 75A202A1100-1250 (590-680)
K 85A202B1100-1250 (590-680)
L 65A204A1100-1200 (590-650)
L 70A204B1100-1200 (590-650)
L 75A204C1100-1200 (590-650)
N 75A2991100-1200 (590-650)1700 (925)

AWhere ellipses (…) appear in this table, there is no requirement.

BNumbers indicate minimum tensile strength in ksi.

CAny grade may be used.

Permissible Variations in Wall Thickness and Weight

Dictated by the requirements of the specification to which the manufacturer ordered the plate.

Permissible Variations in Outside Diameter

Based on circumferential measurement +/-0.5% of the specified outside diameter.

Reference documents

  • ASTM A20/A20M Specification for General Requirements for Steel Plates for Pressure Vessels
  • ASTM A370 Test Methods and Definitions for Mechanical Testing of Steel Products
  • ASTM A435/A435M Specification for Straight-Beam Ultrasonic Examination of Steel Plates
  • ASTM A530/A530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe
  • ASTM A577/A577M Specification for Ultrasonic Angle-Beam Examination of Steel Plates
  • ASTM A578/A578M Specification for Straight-Beam Ultrasonic Examination of Rolled Steel Plates for Special Applications
  • ASTM E110 Test Method for Indentation Hardness of Metallic Materials by Portable Hardness Testers
  • ASTM E165 Practice for Liquid Penetrant Examination for General Industry
  • ASTM E709 Guide for Magnetic Particle Testing
  • ASTM A202/A202M Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Manganese-Silicon
  • ASTM A204/A204M Specification for Pressure Vessel Plates, Alloy Steel, Molybdenum
  • ASTM A285/A285M Specification for Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength
  • ASTM A299/A299M Specification for Pressure Vessel Plates, Carbon Steel, Manganese-Silicon
