ASME SA 333 GR 6 Seamless Pipe, ASTM A333 Grade 6 Welded Pipe Specification
Carbon Steel ASTM A333 ERW Pipe, ASTM A333 Carbon Steel GR.6 Square Pipe suupliers, check sizes of CS A333 GR 6 Hexagonal Pipe
ASME SA/A333 is a specification developed by the American Society of Mechanical Engineers (ASME) for seamless and welded carbon and alloy steel pipe suitable for low-temperature service. This specification covers various grades of steel pipes that are designed to operate at extremely low temperatures, making them ideal for use in applications such as cryogenic storage, low-temperature pressure vessels, and other industrial settings where cold temperatures are a concern.
Valour Alloys Inc., we carry a full inventory of ASME SA / A333 Pipe and Supply ASME SA / A333 Pipe products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
We are specializes in ASME SA / A333 Pipe with years of Experience in Manufacturing ASME SA / A333 Pipe. we offer high quality, lower cost but the best service. As a result to that our ASME SA / A333 Pipe export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

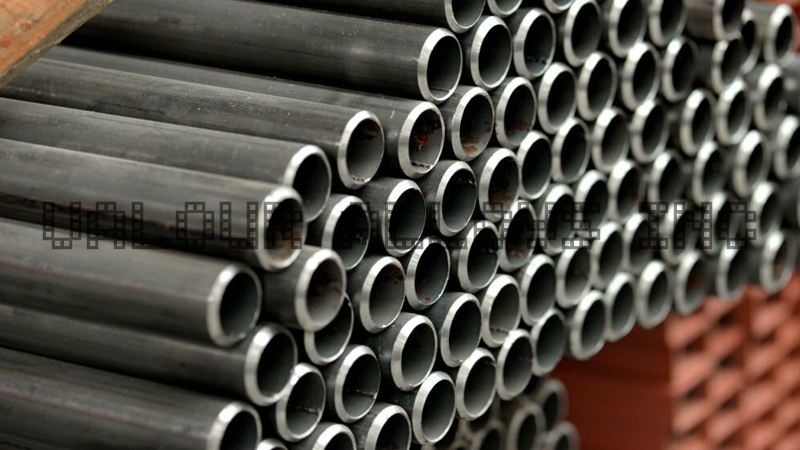

ASME SA / A333 Pipe Manufacturer

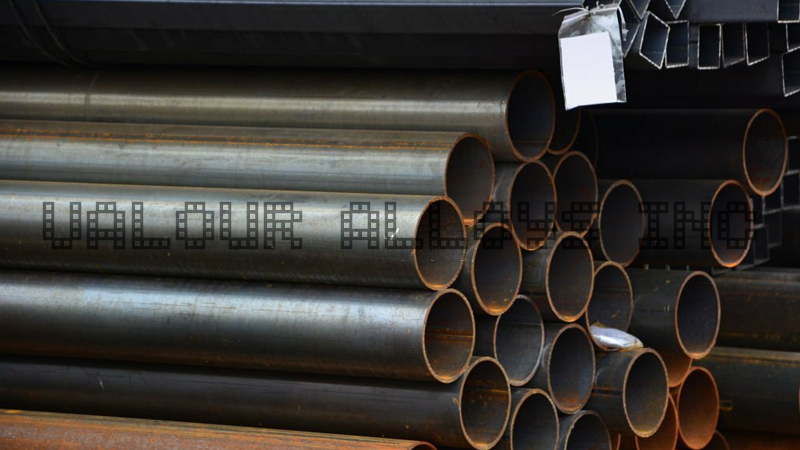

ASME SA / A333 Pipe Exporter
Low-Temperature Service: The primary purpose of ASME SA/A333 pipes is to provide reliable performance in low-temperature environments. These pipes are capable of withstanding temperatures as low as -50°F (-46°C).
Seamless and Welded Construction: The specification includes both seamless and welded pipe options, giving manufacturers and users flexibility in choosing the appropriate pipe type for their specific application.
Various Grades: ASME SA/A333 includes several different grades, such as Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10, Grade 11. Each grade has specific mechanical properties and chemical compositions to suit different temperature and pressure requirements.
Chemical Composition: The chemical composition of ASME SA/A333 pipes is carefully controlled to ensure excellent weldability and toughness at low temperatures. This includes specific limits on carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, and other alloying elements.
Testing and Inspection: The specification mandates various tests and inspections to ensure the quality and integrity of the pipes. Common tests include tensile tests, impact tests, hardness tests, and non-destructive testing (NDT) methods like ultrasonic testing and radiographic examination.
Compliance: To meet the ASME SA/A333 specification, manufacturers must adhere to strict quality control processes and ensure that the pipes meet the specified requirements.
ASME SA/A333 Pipe is a set of standards and specifications that govern the manufacturing and use of carbon and alloy steel pipes designed for low-temperature service. These pipes are crucial for industries requiring reliable performance in extreme cold conditions, and they are available in various grades and forms to suit different application requirements. Manufacturers and users must follow these standards to ensure the safety and functionality of these pipes in demanding environments.
A333 PIPE SPECIFICATIONS
A/SA333
NPS 1/4″ – 42″
Schedules 10 through 160, STD, XH and XXH
Scope
ASTM A333 covers nominal (average) wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. Several grades of ferritic steel are included. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
Material & Manufacture
The pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.
Heat Treatment Requirements
All seamless and welded pipe shall be treated to control their microstructure by the following methods: Normalizing per A 333/A 333M-05 section 4.3.1.1; section 4.3.1.2 or section 4.3.1.3 Quenched and Tempered per A 333/A 333M – 05 section 4.3.2.1 Double Normalized and Tempered per A 333/A 333M – 05 section 4.3.2.2
Chemical Composition of ASME SA / A333 Pipe
| Composition, % | |||
| Element | Grade 1 | Grade 3 | Grade 6 |
| Carbon, max | 0.30 | 0.19 | 0.30 |
| Manganese | 0.40 – 1.06 | 0.31 – 0.64 | 0.29 – 1.06 |
| Phosphorous, max | 0.025 | 0.025 | 0.025 |
| Sulfur, max | 0.025 | 0.025 | 0.025 |
| Silicon | 0.18 -0.37 | 0.10 min | |
| Nickel | 3.18 – 3.82 | ||
For each reduction of 0.01% carbon below 0.30%, an increase of 0.05% manganese above 1.06% would be permitted to a maximum of 1.35% manganese. When Grade 6 is ordered under this specification, supplying an alloy grade that specifically requires the addition of any element other than those listed for the ordered grade is not permitted. However, the addition of elements required for the deoxidation of the steel is permitted.
Mechanical Properties of ASME SA / A333 Pipe
| Grade 1 | Grade 3 | Grade 6 | |||||
| psi | MPa | psi | MPa | psi | MPa | ||
| Tensile Strength, min | 55,000 | 380 | 65,000 | 450 | 60,000 | 415 | |
| Yield Strength, min | 30,000 | 205 | 35,000 | 240 | 35,000 | 240 | |
| Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse | ||
| Elongation in 2 in. or 50 mm, (or 4D), min, %: | |||||||
| Basic minimum elongation for walls 5/16 in. [8 mm] and over in thickness, strip tests, and for all small sizes tested in full section | 35 | 25 | 30 | 20 | 30 | 16.5 | |
| When the standard round 2-in. or 50-mm gage length or proportionally smaller size test specimen with the gage length equal to 4D (4 times the diameter) is used | 28 | 20 | 22 | 14 | 22 | 12 | |
| For strip tests, a deduction for each 1/32in. [0.8 mm] decrease in wall thickness below 5/16 in. [8 mm] from the basic minimum elongation of the following percentage | 1.75 | 1.25 | 1.50 | 1.00 | 1.50 | 1.00 | |
| Elongation in 2 in. or 50 mm, min, %: | |||||||
| Wall Thickness | Grade 1 | Grade 3 | Grade 6 | ||||
| in. | mm | Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse |
| 5/16 (0.312) | 8 | 35 | 25 | 30 | 20 | 30 | 16 |
| 9/32 (.281) | 7.2 | 33 | 24 | 28 | 19 | 28 | 15 |
| 1/4 (.250) | 6.4 | 32 | 23 | 27 | 18 | 27 | 15 |
| 7/32 (.219) | 5.6 | 30 | 26 | 26 | |||
| 3/16 (.188) | 4.8 | 28 | 24 | 24 | |||
| 5/32 (.156) | 4 | 26 | 22 | 22 | |||
| 1/8 (.125) | 3.2 | 25 | 21 | 21 | |||
| 3/32 (.094) | 2.4 | 23 | 20 | 20 | |||
| 1/16 (.063) | 1.6 | 21 | 18 | 18 | |||
Impact Requirements
For Grades 1, 3 and 6, the notched-bar impact properties of each set of three impact specimens, including specimens for the welded joint in welded pipe with wall thicknesses of 0.120 in. [3 mm] and larger, shall not be less than the values prescribed:
| Size of Specimen, min | Minimum Average Notched Bar Impact Value of Each Set of Three Specimens | Minimum Notched Bar Impact Value of One Specimen Only of a Set | Impact Temperature | |||||
| ft-lbf | J | ft-lbf | J | Grade | Min Impact Test Temp | |||
| 10 by 10 | 13 | 18 | 10 | 14 | F | C | ||
| 10 by 7.5 | 10 | 14 | 8 | 11 | 1 | -50 | -45 | |
| 10 by 6.67 | 9 | 12 | 7 | 9 | 3 | -150 | -100 | |
| 10 by 5 | 7 | 9 | 5 | 7 | 6 | -50 | -45 | |
| 10 by 3.33 | 5 | 7 | 3 | 4 | ||||
| 10 by 2.5 | 4 | 5 | 3 | 4 | ||||
Mechanical Testing
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested. For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe. Hydrostatic Test Impact Test One notched bar impact test, consisting of breaking three specimens shall be made from each heat represented in a heat-treatment load on specimens taken from the finished pipe.
Lengths
Lengths required shall be specified on order. If no definite lengths required, following practice applies: Single Random — 17′ ~ 24′ lengths Double Random — 36′ ~ 44′ lengths
Required Markings on Each Length
(On Tags attached to each Bundle in case of Bundled Pipe) Markings will adhere to prescribed specifications in A 999/A999M and be: Rolled, Stamped, or Stenciled (Mfrs. Option) In addition, markings will include:
| Hot Finished or Cold Drawn | Manufacture Name | ||
| Specification / Grade | Hydro or NDE | ||
| Seamless or Welded | |||
| Schedule Number | |||
| the letters “LT” followed by the temperature at which the impact tests were made * and ** | |||
| the letters “QT” when the pipe is furnished in the quenched and tempered condition | |||
* except when a lower test temperature is required because of reduced specimen size, in which case, the higher impact test temperature applicable to a full size specimen would be marked ** when the size of the finished pipe is insufficient to obtain subsize impact specimens, the marking shall not include the letters “LT” followed by an indicated test temperature unless Supplementary Requirement S! is specified.
Referenced Documents
- ASTM A 370 Test Methods and Definitions for Mechanical testing of Steel Products
- ASTM A999/A 999M Specification for General requirements for Alloy and Stainless Steel Pipe
- ASTM A 671 Specification for General requirements for Alloy and Stainless Steel Pipe
- ASTM E 23 Test Methods for Notched bar Impact testing of Metallic Materials
Order Information
Orders for material under this specification should include the following, as required, to describe the desired material adequately:
| Quantity | Feet, centimeters, or number of lengths | ||||
| Name of material | Seamless or Welded Pipe | ||||
| Grade | Grade 1, Grade 3, or Grade 6 | ||||
| Size | NPS or Outside Diameter and Schedule Number of Average Wall Thickness | ||||
| Length | Specific or Random | ||||
| End Finish | |||||
| Optional Requirements | |||||
| Heat Analysis Requirement | |||||
| Stress Relieving | |||||
| Repair by Welding | |||||
| Other Temperatures for Impact Test | |||||
| Hydrostatic Test or Nondestructive Electric Test | |||||
| Test Report Required | |||||
| Specification Designation and | |||||
| Special Requirements or Exceptions to this Specification | |||||
ASME SA / A333 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We ASME SA / A333 Pipe with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At ASME SA / A333 Pipe all types of Such as ASTM A53/ASME SA53 steel pipes and tubes, ASTM A106/ASME SA106 seamless carbon steel pipe, ASTM A179/ASME SA179 cold drawn seamless carbon pipe, ASTM A192/ASME SA192 seamless carbon steel boiler tube from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our ASME SA / A333 Pipe is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASME SA / A333 Pipe are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
