ASTM A335 P22 Pipe, A335 P22 Pipe, ASME SA335 P22 Pipe, P22 Grade Pipe, P22 Chrome Moly Pipe, A335 P22 Alloys Steel Pipe.
Manufacturing Alloy Steel Pipes in ASTM A335 P22. ASME SA335 P22 Pipe, IBR Approved, Dealer, Distributor, Exporter, Supplier in India.
ASTM A335 P22 Pipe is a specification for seamless ferritic alloy steel pipe designed for high-temperature service. This particular grade of pipe is commonly used in industries such as power generation, petrochemical, and oil and gas, where elevated temperatures and high-pressure conditions are prevalent. The "P" in ASTM A335 P22 stands for "Piping," while the "22" represents the nominal alloy content of chromium and molybdenum.
Valour Alloys Inc., we carry a full inventory of ASTM A335 P22 Pipe and Supply ASTM A335 P22 Pipe products in a variety of sizes to meet the High temperature service requirements for applications the Power Plants, Petro Chemical Plants and Refineries industries. ASTM A335 P22 Pipe steel pipe can be structural in nature or used in fluid and oil transmission.
We are specializes in ASTM A335 P22 Pipe with years of Experience in Manufacturing ASTM A335 P22 Pipe. we offer high quality, lower cost but the best service. As a result to that our ASTM A335 P22 Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

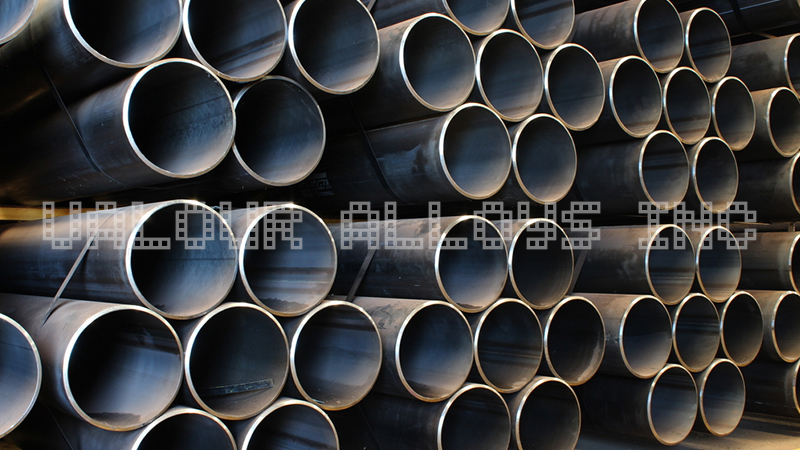

ASTM A335 P22 Seamless Pipe

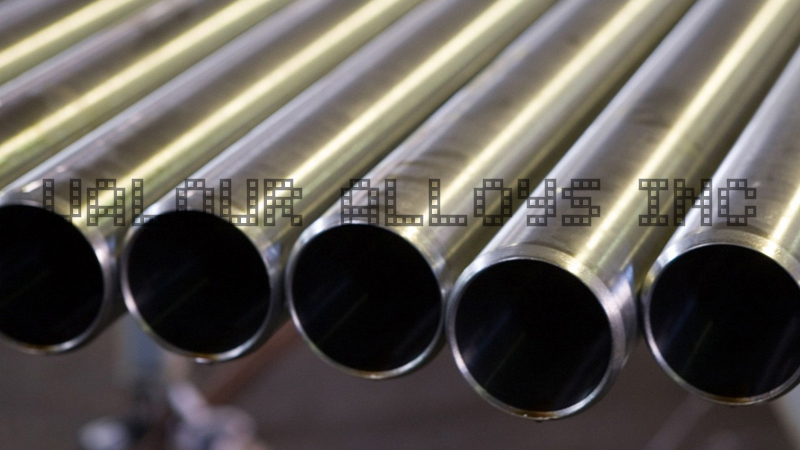

ASTM A335 P22 Welded Pipe
We Supply Alloy Steel Seamless Pipes and Tubes in ASTM A335 Grade P5, ASTM A335 Grade P9, ASTM A335 Grade P11, ASTM A335 Grade P22, ASTM A335 Grade P91, ASTM A213 Grade T5, ASTM A213 Grade T9, ASTM A213 Grade T11, ASTM A213 Grade T22, ASTM A213 Grade T91. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
PED 2014/68/EU approved ASTM A335 P22 Pipe suppliers offers ASME SA 335 welded pipe for boilers and high temperature applications, Manufacturer of large size fabricated AS Welded Pipes & Seamless Alloy Steel Pipes in Mumbai, Boiler pipe material according to ASTM A335, ISO 15156-2, NACE MR0175 standards
Alloy Composition: ASTM A335 P22 is made primarily of chromium and molybdenum, with small amounts of other alloying elements such as carbon, manganese, phosphorus, sulfur, silicon, and nickel. This alloy composition provides excellent resistance to high-temperature corrosion and oxidation.
High-Temperature Service: These pipes are specifically designed to handle high-temperature applications, making them suitable for use in power plants, refineries, and other industrial settings where elevated temperatures are encountered.
Seamless Construction: ASTM A335 P22 pipes are manufactured using a seamless process, which ensures uniformity, strength, and the ability to withstand high-pressure conditions. Seamless pipes also have fewer potential weak points compared to welded pipes.
Size Range: These pipes are available in a range of sizes and dimensions to suit various industrial needs, making them versatile for different applications.
Heat Treatment: ASTM A335 P22 pipes are typically heat treated to enhance their mechanical properties and ensure the desired performance at elevated temperatures.
Compliance: The manufacturing and testing of ASTM A335 P22 pipes adhere to strict industry standards and specifications to guarantee their quality and reliability. These standards are established by the American Society for Testing and Materials (ASTM).
Weldability: ASTM A335 P22 pipes can be welded using conventional welding methods, allowing for flexibility in fabrication and installation.
ASTM A335 P22 Pipe is a high-quality alloy steel pipe designed for use in high-temperature and high-pressure applications. Its composition and seamless construction make it well-suited for industries where reliable and durable piping solutions are required to transport fluids and gases at elevated temperatures. These pipes are widely used in the energy, petrochemical, and industrial sectors, providing essential support for critical processes and operations.
ASTM A335 P22 Pipe Range
ASTM A335 P22 Pipe Outer Diameter Size | A335 - 3/8" NB To 30" NB (Nominal Bore Size) |
ASTM A335 P22 Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
ASTM A335 P22 Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
ASTM A335 P22 Pipe Ends | Plain Ends / Beveled Ends / Coupling |
ASTM A335 P22 Pipe Specification | ASTM A335 / ASME SA335 |
ASTM A335 P22 Pipe Grades | ASTM A335 P5, ASTM A335 P9, ASTM A335 P11, ASTM A335 P22, ASTM A335 P91, ASME SA335 P5, ASME SA335 P9, ASME SA335 P11, ASME SA335 P22, ASME SA335 P91 |
ASTM A335 P22 Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
ASTM A335 P22 Pipe Type | Seamless - Hot Rolled / Cold Drawn |
ASTM A335 P22 Pipe Delivery Conditions | As Rolled, Cold Drawn, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
ASTM A335 P22 Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
ASTM A335 P22 Pipe Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
ASTM A335 P22 Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
ASTM A335 P22 Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
ASTM A335 P22 Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A335 P22 Pipe Other Testing | Tensile Test, Transverse Tension Tests, Flattening Test, Metal Structure and Etching Tests, Photomicrographs, Hardness Tests, etc. |
ASTM A335 P22 Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC. |
Chemical Composition of ASTM A335 P22 Pipe
Grade | P5 | P9 | P11 | P22 | P91 (type 1) | P91 type 1 shall also include the following: |
P91 (type 2) | P91 type 2 shall also include the following |
P91 type 2 continued | ||
Element | UNS | K41545 | K90941 | K11597 | K21590 | K91560 | K91560 | ||||
Carbon | 0.15 max | 0.15 max | 0.05 – 0.15 | 0.05 – 0.15 | 0.08 – 0.12 | V at 0.18 – 0.25 | Heat: 0.08 – 0.12 Product: 0.07 – 0.13 |
V (heat) at 0.18 – 0.25 V (product) at 0.16 – 0.27 |
N / Al ration ≥ 4.0 | ||
Manganese | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | N at 0.030 – 0.070 | 0.30 – 0.50D | N at 0.035 – 0.070D | Sn at 0.01 maxD | ||
Phosphorous, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 | Ni at 0.40 max | 0.20D | Ni at 0.02 maxD | Sb at 0.003 maxD | ||
Sulfur, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.010 | Al at 0.02 max | 0.005D | Al at 0.02 maxD | As at 0.010 maxD | ||
Silicon | 0.50 max | 0.25 – 1.00 | 0.50 – 1.00 | 0.50 max | 0.20 -0.50 | Cb at 0.06 – 0.10 | 0.20 – 0.40D | Cb (heat) at 0.06 – 0.1 Cb (product) at 0.05 – 0.11 |
B at 0.001 maxD | ||
Chromium | 4.00 – 6.00 | 8.00 – 10.00 | 1.00 – 1.50 | 1.90 – 2.60 | 8.00 – 9.50 | Ti at 0.01 max | 8.00 – 9.50D | Ti at 0.01 maxD | W at 0.05 maxD | ||
Molybdenum | 0.45 -0.65 | 0.90 – 1.10 | 0.44 – 0.65 | 0.87 – 1.13 | 0.85 – 1.05 | Zr at 0.01 max | Heat: 0.85 – 1.05 Product: 0.80 – 1.05 |
Zr at 0.01 maxD | Cu at 0.10 maxD | ||
DApplies to both heat and product analyses. |
Mechanical Properties of ASTM A335 P22 Pipe
Seamless | |||||
P-5 | P-9 | P-11 | P-22 | P-91 | |
Tensile Strength, min., psi | |||||
ksi | 60 | 60 | 60 | 60 | 85 |
MPa | 415 | 415 | 415 | 415 | 585 |
Yield Strength, min., psi | |||||
ksi | 30 | 30 | 30 | 30 | 60 |
MPa | 205 | 205 | 205 | 205 | 415 |
P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC]. |
Other Mechanical Properties of ASTM A335 P22 Pipe
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test | ||
For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. for small lots, at least one pipe shall be tested. | ||
For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe. | ||
Notes for Hardness Test: | P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC]. | |
Notes for Bend Test: | For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test. | |
Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser. | ||
The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion. | ||
The inside diameter of the bend shall be 1 inch [25 mm]. | ||
Hydrostatic test | Each length of pipe shall be Hydro tested, at option of manufacture, nondestructive electric testing can be used. |
Other Available Products of ASTM A335 P22 Pipe
Alloy Steel Pipes | ASME SA335 P5 Pipe Supplier |
ASTM A335 P5 Cold Finished Pipe | ASME SA335 P9 Pipe Dealer |
ASTM A335 P9 Hot Finished Pipe | ASME SA335 P11 Pipe Stockholder |
ASTM A335 P11 Seamless Pipe | ASME SA335 P22 Pipe Exporter |
ASTM A335 P22 Round Pipe | ASME SA335 P91 Pipe Distributor |
ASTM A335 P91 Square Pipe | Chrome Moly Welded Pipes |
ASME SA335 Pipe Exporter in Saudi Arabia | Chrome Moly Seamless Pipes |
A335 Pipes Supplier in Dubai | ASTM A335 Chrome Moly Pipe |
ASTM A335 Seamless Pipe | ASME SA335 Alloy Stee Pipe |
A335 Alloy Steel Pipes | ASME SA335 P Grade Pipe |
A335 P Grade Pipe Stockist | ASTM A335 P22 Pipe Manufacturer |
ASTM A335 P22 Pipe Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We ASTM A335 P22 Pipe with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At ASTM A335 P22 Pipe all types of Such as Silver Round ASTM A335 P22 Pipes, ASTM A335 P22 Pipes IBR, ALLOY STEEL SEAMLESS PIPE, Grey, Silver Stainless Steel ASTM A335 Grade P5 High Temperature Pipe, Square ASTM A335 P22 Pipes A 335 GR from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our ASTM A335 P22 Pipe is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A335 P22 Pipe are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying ASTM A335 P22 Pipe to Countries -
We Export ASTM A335 P22 Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing ASTM A335 P22 Pipe to Cities -
We Export ASTM A335 P22 Pipe to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
