ASTM A334 Grade 6 is a specification for low-temperature carbon steel seamless and welded tubes. These tubes are primarily intended for use in low-temperature applications where impact toughness is important. Let's break down the introduction of ASTM A334 Grade 6 tubes.
Valour Alloys Inc., we carry a full inventory of ASTM A334 Grade 6 Tube Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. ASTM A334 Grade 6 Pipe ASTM A334 Grade 6 Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

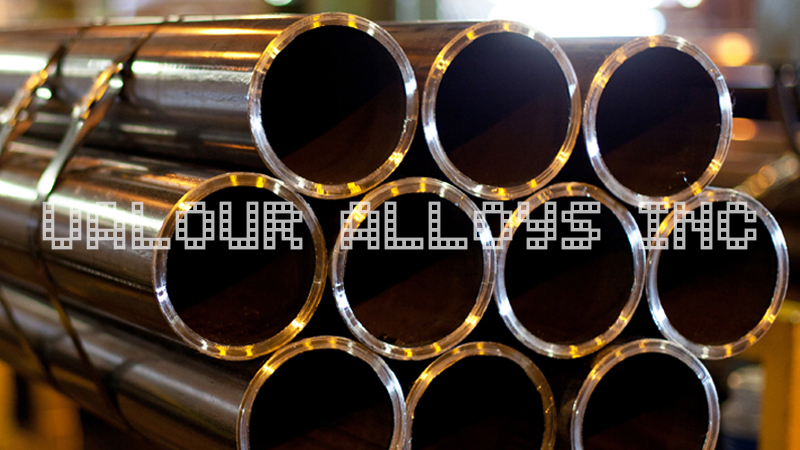

ASTM A334 Grade 6 Seamless Tube

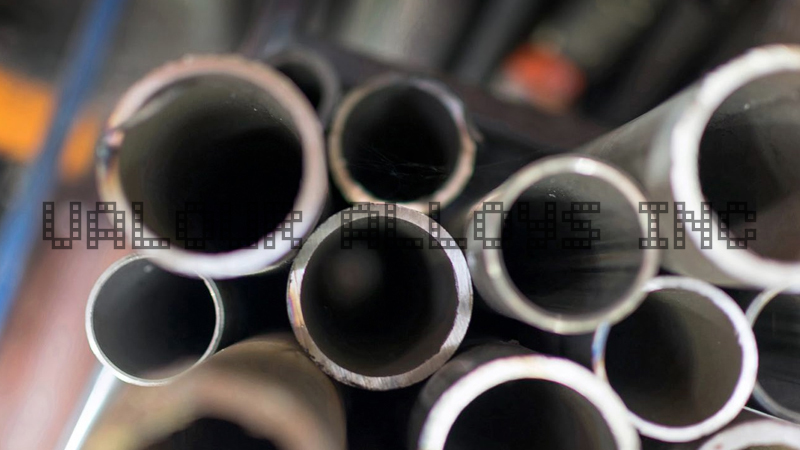

ASTM A334 Grade 6 Welded Tube
We Supply Carbon Steel Tubes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C, Etc.The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
"Discover the superior strength and durability of ASTM A334 Grade 6 Tubes. These high-quality carbon steel tubes are designed to meet stringent industry standards, making them ideal for a wide range of applications. Learn more about their exceptional performance and reliability today."
1. ASTM A334: This abbreviation stands for the "American Society for Testing and Materials" (now known as ASTM International). ASTM is a globally recognized organization that develops and publishes technical standards for a wide range of materials, products, systems, and services. These standards are used to ensure the quality and reliability of various products and materials across industries.
2. Grade 6: The "Grade 6" designation indicates the specific grade or level of the tube within the ASTM A334 specification. In this case, Grade 6 is designed for low-temperature service applications.
3. Tube: This term refers to a cylindrical, hollow structure made of metal (in this case, carbon steel). Tubes are commonly used in various industries, including construction, manufacturing, and energy, for conveying fluids or gases, providing structural support, or serving as heat exchangers.
4. Low-Temperature Carbon Steel: ASTM A334 Grade 6 tubes are made from low-carbon steel designed to perform well in low-temperature environments. Low-carbon steel has a carbon content typically below 0.30%, making it suitable for use in applications where toughness and ductility are essential, even at sub-zero temperatures.
5. Seamless and Welded: ASTM A334 Grade 6 tubes are available in both seamless and welded forms. Seamless tubes are produced without any welding seams, providing uniform properties and enhanced strength. Welded tubes, on the other hand, are manufactured by welding together steel plates or coils, and they are suitable for applications where the cost of production is a concern.
6. Low-Temperature Applications: The key characteristic of ASTM A334 Grade 6 tubes is their suitability for low-temperature applications. These tubes are commonly used in industries such as oil and gas, petrochemical, and energy, where they may be exposed to extremely cold temperatures. The Grade 6 designation ensures that the material has the necessary properties to withstand such conditions, including excellent impact toughness.
7. Impact Toughness: Impact toughness is a critical property for materials used in low-temperature applications. It measures a material's ability to absorb energy and resist fracture when subjected to sudden loading or impact at low temperatures. ASTM A334 Grade 6 tubes are designed to have excellent impact toughness, making them reliable and safe in challenging environments.
ASTM A334 Grade 6 tubes are specifically engineered for use in low-temperature applications where impact toughness and reliable performance are essential. They come in both seamless and welded forms and are made from low-temperature carbon steel, meeting stringent ASTM standards to ensure quality and safety in various industries.
ASTM A334 Grade 6 Tube Range
ASTM A334 Grade 6 Tube Outer Diameter Size | 1/4" NB To 30" NB (Nominal Bore Size) |
ASTM A334 Grade 6 Tube Wall Thickness | 0.8 MM TO 4 MM WALL THICKNESS |
ASTM A334 Grade 6 Tube Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
ASTM A334 Grade 6 Tube Ends | Plain Ends / Beveled En |
ASTM A334 Grade 6 Tube Specification | ASTM A106 / ASTM A53 / ASTM A333 / ASTM A334 / ASTM A179 / ASTM A192 / ASTM A210 |
ASTM A334 Grade 6 Tube Grades | ASTM A106 GRADE B, ASTM A106 GRADE C, ASTM A53 GRADE B, ASTM A333 GRADE 1, ASTM A333 GRADE 6, ASTM A333 GRADE A334 GRADE 1, ASTM A334 GRADE 6, ASTM A179, ASTM A192, ASTM A210 |
ASTM A334 Grade 6 Tube Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
ASTM A334 Grade 6 Tube Type | SEAMLESS / WELDED / ERW / EFW / COLD DRAW / HOT FINISH / COLD FINISH |
ASTM A334 Grade 6 Tube Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
ASTM A334 Grade 6 Tube Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
ASTM A334 Grade 6 Tube Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
ASTM A334 Grade 6 Tube Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
ASTM A334 Grade 6 Tube Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
ASTM A334 Grade 6 Tube Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A334 Grade 6 Tube Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc. |
ASTM A334 Grade 6 Tube Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC. |
Chemical Composition of ASTM A334 Grade 6 Tube
Grade | Mfg. Process | Chemical composition(%) | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
Grade 1 | S, E, AT | 0.30Max | - | 0.40~1.06 | 0.05Max | 0.60Max | - | - | - | (STBL450) |
Grade 3 | S, E, AT | 0.19Max | 0.18~0.37 | 0.31~0.64 | 0.05Max | 0.050Max | 3.18-3.82 | - | - | - |
Grade 6 | S, E, AT | 0.30Max | 0.10Max | 0.29~1.06 | 0.048Max | 0.058Max | - | - | - | - |
Grade 7 | S, E, AT | 0.19Max | 0.13~0.32 | 0.90Max | 0.04Max | 0.050Max | 2.03~2.57 | - | - | (STBL690) |
Grade 8 | S, E, AT | 0.18Max | 0.13~0.32 | 0.90Max | 0.045Max | 0.045Max | 8.40~9.60 | - | - | (Cu 0.75~1.25) |
Grade 9 | S, E, AT | 0.20Max | - | 0.40~1.06 | 0.045Max | 0.50Max | 1.60~2.24 | - | - | - |
Mechanical Properties of ASTM A334 Grade 6 Tube
Grade | Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) |
Possibility Temperature | |
Min Yield point | Tensile Strength | |||
Gr. 1 | 205 | 380Min | Impact Test(J) 2V 18 |
|
Gr. 3 | 240 | 450Min | 2V 18 | |
Gr. 6 | 240 | 415Min | 2V 18 | |
Gr. 7 | 240 | 450Min | 2V 18 | |
Gr. 8 | 520 | 690Min | 2V 18 | |
Gr. 9 | 315 | 435Min | 2V 18 |
Equivalent Grade of ASTM A334 Grade 6 Tube
ASTM STANDARD | UNS NO. | KOREA/JAPANES | GERMAN | BRITISH | FRENCH | ITALIAN | |||||||||||
KS/JIS Symbol | KS/JIS Numbe | Remarks | DIN Type | DIN Number |
Materiral Number |
Remarks | B.S Number |
B.S Grade | Remarks | AFNOR Type | NF Number | Ramarks | UNI Type | UNI Number | Ramarks | ||
A 334 Seamless and Welded C-ans Alloy Steel Tubes for Low-Tempersture Service |
|||||||||||||||||
Grade 1 | K03008 | STLT 39 / STbL 380 | D3571 / G 3464 | TT St 41N | 1.0437 | WBL-680(3b) | (3) | TU 42 BT | A49-230 | (32) | C 15 | 5949 | (6)Seamless Only | ||||
Grade 3 | K31918 | STLT 46 / STBL 450 | D3571 / G 3464 | 10 Ni 14 | 1.5637 | WBL-680(3b) | 3603 | FS 503 LT 100 | CAT.2 | TU 16 N 14 | A49-230 | (3c) | 18 Ni 14 | 5949 | Seamless Only | ||
Grade 6 | K03006 | (3) | TT St 45 N | 1.0456 | WBL-680(3b) | 3603 | FS 410 LT 50 | CAT.2 | TU A 42 BT | A49-230 | (29) | C 20 | 5949 | Seamless Only | |||
Grade 8 | K31340 | STLT 70 / STBL 690 | D3571 / G 3464 | X8 Ni 9 | 1.5662 | WBL-680(3b) | 3603 | FS 590 LT 196 | CAT.2 | TU Z 11 N 9 | A49-230 | (6) | 12 X Ni 09 | 5949 | Seamless Only |
Other Available Products Of ASTM A334 Grade 6 Tube
Carbon Steel Tubing | Carbon Steel Tubes |
Carbon Steel ASTM A106 Seamless Tubes | Carbon Steel ASTM A333 Seamless Tube |
ASTM A334 Carbon Steel Seamless Tubes | A106 Carbon Seamless Tubing |
A106 Grade B Carbon Seamless Tubes Suppliers | ASTM A53 Carbon Steel Tubing |
Carbon Steel A106 Seamless Tubing Dealer | Carbon Steel A106 Tubes Exporter |
A106 Carbon Tubes Stockholder | ASTM A106 Carbon Seamless Tube Distributors |
ASTM A106 Carbon Steel Tubing | Carbon Steel A53 Tubes Manufacturer |
ASME SA210 Grade A1 Seamless Tubes | ASME SA210 Grade C Carbon Tube |
ASME SA192 Carbon Steel Tubes | ASME SA179 Carbon Seamless Tube |
DIN 2391 ST35 Carbon Steel Tubes | DIN 2391 ST52 Carbon Steel Tubes Stockist |
BS 3509 Grade 360 Carbon Steel Tubes | ASME SA671 Carbon Steel EFW Tube |
BS 3509 Grade 320 Carbon Steel Tubing | ASME SA106 Carbon Steel Seamless Tubes Stockist |
ASTM A334 Grade 6 Tube Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We ASTM A334 Grade 6 Tube with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Valour Alloys all types of ASTM A334 Grade 6 Tube such as Round, Square, Rectangular, Hydraulic from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our ASTM A334 Grade 6 Tube is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A334 Grade 6 Tube are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
