Carbon Steel Tube, CS Tube, Mild Carbon Steel Tube, Carbon Steel Seamless Tube, Carbon Steel Welded Tube, Carbon Steel EFW Tube.

Manufacturing Carbon Steel Tubes in ASTM A106, A333, A671, A672, BS3509, IS3589, EN10216-2, A500 etc. CS Pipe, BIS Approved Dealer, Distributor, Exporter, Supplier in India.

ASTM A106 Grade B is a standard specification for seamless carbon steel tubes for high-temperature service. This specification is widely used in the oil and gas industry, as well as in various other industrial applications where high-temperature fluids or gases are transported. The "Grade B" designation indicates the level of strength and toughness of the steel used in the pipe.

Valour Alloy Inc. we carry a full inventory of ASTM A106 Grade B Tube Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. ASTM A106 Grade B Pipe ASTM A106 Grade B Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

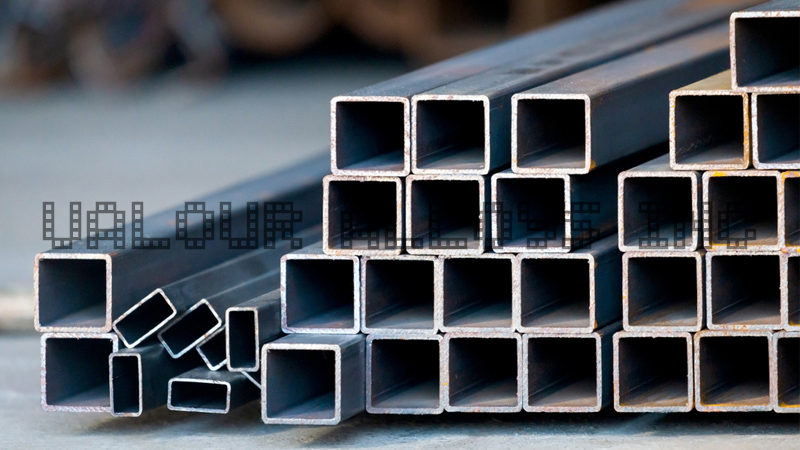

ASTM A106 Grade B Seamless Tube Supplier Manufacturer

ASTM A106 Grade B Seamless Tube

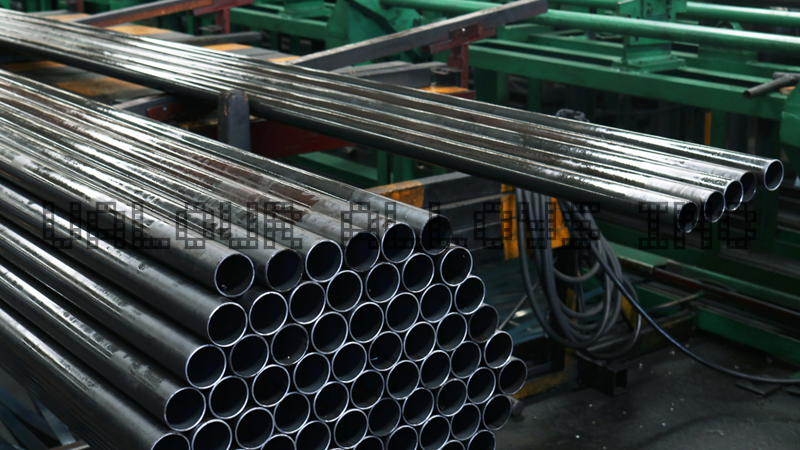

ASTM A106 Grade B Welded Tube Supplier Manufacturer

ASTM A106 Grade B Welded Tube

We Supply Carbon Steel Tubes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C, Etc.The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.

"Discover the strength and versatility of ASTM A106 Grade B Tubes. These high-quality carbon steel tubes are engineered to withstand demanding industrial applications. Explore their specifications and uses today!"

Material Composition: ASTM A106 Grade B tubes are made from carbon steel, specifically designed for high-temperature service. The chemical composition typically includes elements such as carbon, manganese, phosphorus, sulfur, silicon, and copper, depending on the specific requirements and manufacturing process.

Seamless Construction: These tubes are manufactured through a seamless process, which means they are produced without any welded joints. This seamless construction enhances their strength and reliability, especially when exposed to high temperatures and pressure.

High-Temperature Service: ASTM A106 Grade B tubes are designed to withstand elevated temperatures and are suitable for applications where the temperature exceeds 750°F (400°C). They are commonly used in industries like oil and gas, petrochemical, power generation, and refineries where high-temperature fluids or gases are transported.

Pressure Ratings: The tubes are capable of handling high-pressure applications. They are available in various wall thicknesses to meet different pressure requirements.

Size Range: ASTM A106 Grade B tubes come in a wide range of sizes, from small-diameter tubes to large-diameter pipes, making them versatile for various applications.

Testing and Inspection: These tubes undergo rigorous testing and inspection procedures to ensure quality and compliance with ASTM standards. Common tests include hydrostatic testing, ultrasonic testing, eddy current testing, and more.

Availability: These tubes are widely available from steel manufacturers and distributors in various lengths and specifications to meet the needs of different projects.

ASTM A106 Grade B tubes are a crucial component in industries requiring the transportation of high-temperature fluids or gases. Their seamless construction, high-temperature resistance, and strength make them a preferred choice for such demanding applications. It's important to refer to the specific ASTM A106 Grade B standard for detailed technical specifications and requirements, as standards may evolve over time.

ASTM A106 Grade B Tube Range

ASTM A106 Grade B Tube Outer Diameter Size 1/4" NB To 30" NB (Nominal Bore Size)
ASTM A106 Grade B Tube Wall Thickness 0.8 MM TO 4 MM WALL THICKNESS
ASTM A106 Grade B Tube Length 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM A106 Grade B Tube Ends Plain Ends / Beveled En
ASTM A106 Grade B Tube Specification ASTM A106 / ASTM A53 / ASTM A333 / ASTM A334 / ASTM A179 / ASTM A192 / ASTM A210
ASTM A106 Grade B Tube Grades ASTM A106 GRADE B, ASTM A106 GRADE C, ASTM A53 GRADE B, ASTM A333 GRADE 1, ASTM A333 GRADE 6, ASTM A333 GRADE A334 GRADE 1, ASTM A334 GRADE 6, ASTM A179, ASTM A192, ASTM A210
ASTM A106 Grade B Tube Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
ASTM A106 Grade B Tube Type SEAMLESS / WELDED / ERW / EFW / COLD DRAW / HOT FINISH / COLD FINISH
ASTM A106 Grade B Tube Delivery Conditions As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
ASTM A106 Grade B Tube Coating Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM A106 Grade B Tube Machinery Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc.
ASTM A106 Grade B Tube Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM A106 Grade B Tube Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM A106 Grade B Tube Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A106 Grade B Tube Other Testing Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc.
ASTM A106 Grade B Tube Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC.

Chemical Composition of ASTM A106 Grade B Tube

Grade C(Max) Si(Min) Cu(Max) Ni(Max) Cr(Max) Mo(Max) V(Max) P(Max) S(Max)
A 0.25 0.1 0.4 0.4 0.4 0.15 0.08 0.035 0.035
B 0.3 0.1 0.4 0.4 0.4 0.15 0.08 0.035 0.035
C 0.35 0.1 0.4 0.4 0.4 0.15 0.08 0.035 0.035

Mechanical Properties of ASTM A106 Grade B Tube

Grade Tensile Strength (Mpa), Min. Yield Strength (Mpa), Min.
A 330 205
B 415 240
C 485 275

Equivalent Grade of ASTM A106 Grade B Tube

NPS 1/8″ to 1 1/2″ Over 1 1/2″ to 4″ Over 4″ to 8″ Over 8″ to 18″ Over 18″ to 26″ Over 26″ to 34″ Over 34″ to 48″
OD Tolerance +/- 0.4 +/- 0.8 +1.6, -0.8 +2.4, -0.8 +3.2, -0.8 +4.0, -0.8 +4.8, -0.8
WT Tolerance +/- 12.5%
Weight Tolerance +10%, -3.5%

Other Available Products Of ASTM A106 Grade B Tube

Carbon Steel Tubing Carbon Steel Tubes
Carbon Steel ASTM A106 Seamless Tubes Carbon Steel ASTM A333 Seamless Tube
ASTM A334 Carbon Steel Seamless Tubes A106 Carbon Seamless Tubing
A106 Grade B Carbon Seamless Tubes Suppliers ASTM A53 Carbon Steel Tubing
Carbon Steel A106 Seamless Tubing Dealer Carbon Steel A106 Tubes Exporter
A106 Carbon Tubes Stockholder ASTM A106 Carbon Seamless Tube Distributors
ASTM A106 Carbon Steel Tubing Carbon Steel A53 Tubes Manufacturer
ASME SA210 Grade A1 Seamless Tubes ASME SA210 Grade C Carbon Tube
ASME SA192 Carbon Steel Tubes ASME SA179 Carbon Seamless Tube
DIN 2391 ST35 Carbon Steel Tubes DIN 2391 ST52 Carbon Steel Tubes Stockist
BS 3509 Grade 360 Carbon Steel Tubes ASME SA671 Carbon Steel EFW Tube
BS 3509 Grade 320 Carbon Steel Tubing ASME SA106 Carbon Steel Seamless Tubes Stockist

ASTM A106 Grade B Tube Application

  • Oil and Gas equipments
  • Offshore Technology
  • Seawater Desalination Plants
  • Chemical Industry
  • Airport, Malls, Buildings
  • Storage Tanks
  • Medical Industry
  • Civil Engineering
  • Pressure vessels, Reactor tanks, and Heat exchangers
  • Rotors, impellers and shafts
  • Power Plants
  • Petrochemical
  • Shipbuilding Industry
  • Mining Industry
  • Food Equipments Industry

Test Certificates

We ASTM A106 Grade B Tube with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.

Quality Assurance

At Valour Alloys all types of ASTM A106 Grade B Tube such as Grade A, Grade B, or Grade C from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.

Marking & Packing

Our ASTM A106 Grade B Tube is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A106 Grade B Tube are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements

Supplying ASTM A106 Grade B Tube to Countries -

We Export ASTM A106 Grade B Tube to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.

Distributing ASTM A106 Grade B Tube to Cities -

We Export ASTM A106 Grade B Tube to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
