ASTM A213 T22 is a specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. This standard is published by ASTM International, which is a globally recognized organization that develops and publishes technical standards for a wide range of materials, products, systems, and services. ASTM A213 T22 is specifically focused on alloy steel tubes designed for high-temperature service in various industrial applications.
Valour Alloy Inc., we carry a full inventory of ASTM A213 T22 Tube Supply Alloy Steel EFW Tube products in a variety of sizes to meet the High temperature service requirements for applications the Power Plants, Petro Chemical Plants and Refineries industries. Alloy Steel EFW Tubes steel tubes can be structural in nature or used in fluid and oil transmission.

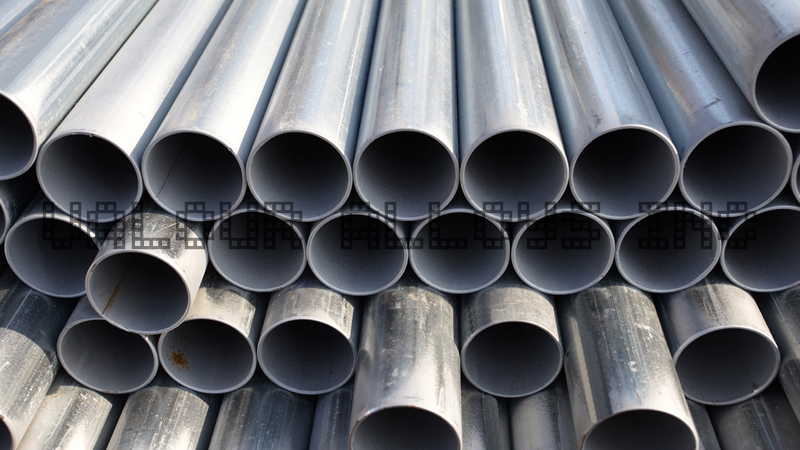

ASTM A213 T22 Seamless Tube

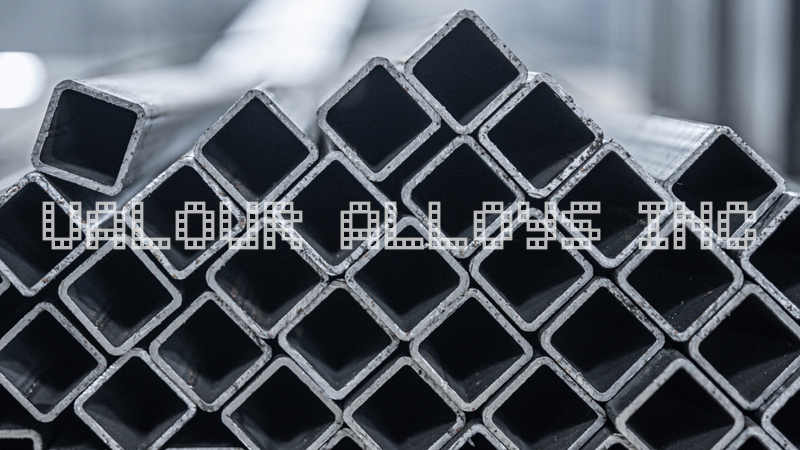

ASTM A213 T22 Welded Tube
We Supply Alloy Steel Tubes in ASTM A335 Grade P5, ASTM A335 Grade P9, ASTM A335 Grade P11, ASTM A335 Grade P22, ASTM A335 Grade P91, ASTM A213 Grade T5, ASTM A213 Grade T9, ASTM A213 Grade T11, ASTM A213 Grade T22, ASTM A213 Grade T91. The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
"Discover the high-quality ASTM A213 T22 Tube - a durable and corrosion-resistant alloy steel tube designed for high-temperature applications. Explore its specifications and uses here."
Material Composition: ASTM A213 T22 tubes are made from a specific grade of alloy steel known as T22. The chemical composition of T22 steel includes elements like chromium, molybdenum, and sometimes small amounts of other elements, which give the steel its unique properties suitable for high-temperature environments.
Seamless Construction: These tubes are produced using a seamless manufacturing process, which means they are formed without welding seams. This seamless construction ensures uniformity and strength, making them ideal for high-temperature and high-pressure applications.
High-Temperature Applications: ASTM A213 T22 tubes are primarily designed for use in high-temperature applications such as boilers, superheaters, and heat exchangers. They can withstand elevated temperatures and pressures, making them essential components in various industrial processes.
Size Range: These tubes come in a range of sizes, typically specified by their outer diameter and wall thickness, to suit different application requirements. The standard covers a wide size range to accommodate various industrial needs.
Heat Treatment: ASTM A213 T22 tubes often undergo specific heat treatment processes to enhance their mechanical properties and improve their performance under high-temperature conditions.
Compliance with Standards: Tubes manufactured in accordance with ASTM A213 T22 must meet specific mechanical property requirements and dimensional tolerances as defined in the standard. Compliance ensures the tubes are suitable for their intended applications.
Weldability: While these tubes are typically used in seamless form, they can also be welded using appropriate techniques and filler materials. However, welding should be performed carefully to maintain the integrity of the alloy and avoid potential issues.
Corrosion Resistance: The alloy composition of T22 steel provides good resistance to corrosion and oxidation at high temperatures, which is essential for its use in boilers and heat exchangers.
Quality Control: The manufacturing of ASTM A213 T22 tubes requires strict quality control measures to ensure that they meet the specified standards and perform reliably in demanding industrial environments.
ASTM A213 T22 tubes are a type of alloy-steel tubing designed for use in high-temperature and high-pressure applications. They are known for their seamless construction, resistance to corrosion, and suitability for use in boilers, superheaters, and heat exchangers in various industries. These tubes play a crucial role in maintaining the efficiency and safety of industrial processes that involve extreme temperatures and pressures.
ASTM A213 T22 Tube Range
| ASTM A213 T22 Tube Outer Diameter Size | A335 - 3/8" NB To 30" NB (Nominal Bore Size) |
| ASTM A213 T22 Tube Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
| ASTM A213 T22 Tube Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM A213 T22 Tube Ends | Plain Ends / Beveled Ends / Coupling |
| ASTM A213 T22 Tube Specification | ASTM A213 / ASME SA213 |
| ASTM A213 T22 Tube Grades | ASTM A213 T5, ASTM A213 T9, ASTM A335 T11, ASTM A213 T22, ASTM A335 T91, ASME SA213 T5, ASME SA213 T9, ASME SA213 T11, ASME SA213 T22, ASME SA213 T91 |
| ASTM A213 T22 Tube Dimension | All Tubes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
| ASTM A213 T22 Tube Type | Seamless - Hot Rolled / Cold Drawn |
| ASTM A213 T22 Tube Delivery Conditions | As Rolled, Cold Drawn, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
| ASTM A213 T22 Tube Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
| ASTM A213 T22 Tube Machinery | Draw Bench / Pilger / De-Coiler / Edge Miller / Welding Line / Heat Treatmen Furnace / Pickling Tank / Cutting Bench etc. |
| ASTM A213 T22 Tube Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| ASTM A213 T11 Tube Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM A213 T22 Tube Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A213 T22 Tube Other Testing | Tensile Test, Transverse Tension Tests, Flattening Test, Metal Structure and Etching Tests, Photomicrographs, Hardness Tests, etc. |
| ASTM A213 T22 Tube Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition & Mechanical Properties of ASTM A213 T22 Tube
| Composition, % | |||||||||||||
| Grade | UNS Designation | Carbon | Manganese | Phosporus | Sulphur | Silicon | Nickel | Chromium | Molybdenum | Vanadium | Niobium | Aluminium | Other Elements |
| T5 | K41545 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | … | 4.00-6.00 | 0.45-0.65 | … | |||
| T9 | K90941 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.03 | … | 1.00-1.50 | 0.90-1.10 | … | |||
| T11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | … | 1.00-1.50 | 0.44-0.65 | … | |||
| T22 | K21590 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | … | 1.90-2.60 | 0.87-1.13 | … | |||
| T91 | K90901 | 0.07-0.14 | 0.30-0.60 | 0.02 | 0.010 | 0.20-0.50 | 0.4 | 8.0-9.5 | 0.85-1.05 | 0.18-0.25 | 0.06-0.10 | 0.02 | Ti 0.01 ZR 0.01 |
Mechanical Properties of ASTM A213 T22 Tube
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 415 min | 205 min | 30 min | 163 max |
Other Available Products of ASTM A213 T22 Tube
| Alloy Steel Seamless Tubes | Alloy Steel Tubes |
| Alloy Steel ASTM A335 P1 Seamless Tubing | Alloy Steel ASTM A213 T1 Seamless Tube |
| ASTM A335 P9 Alloy Steel Seamless Tubes | A213 T5 Alloy Seamless Tubing |
| A335 P11 Alloy Seamless Tubing Suppliers | ASTM A213 T5b Alloy Tube |
| Chrome Moly P12 Tubes Dealer | Alloy Steel A213 T5c Tubing Exporter |
| A335 P22 Alloy Tubing Stockholder | ASTM A213 T11 Alloy Seamless Tube Distributors |
| Chrome Moly Alloy Steel Tubing | Alloy Steel P22 Tubes Manufacturer |
| ASME SA335 P23 Seamless Tubes | ASTM A213 T12 Alloy Tube |
| ASTM A335 Chrome Moly Tubes | ASME SA213 T22 Alloy Seamless Tubing |
| ASTM/ASME A691 GRADE 1CR 11/4CR 21/4CR Alloy EFW Tubes | T23 Alloy Steel Tubes Stockist |
| ASTM A691 GRADE 91 Alloy Steel Tubes | ASME SA213 T92 Alloy Steel ERW Tube |
| Chrome Moly Alloy Steel Tubing | ASME SA335 P92 Alloy Steel Welded Tubes |
ASTM A213 T22 Tube Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks, and Heat exchangers
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
Test Certificates
We ASTM A213 T22 Tube with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Quality Assurance
At Valour Alloys all types of ASTM A213 T22 Tube such as cold drawn seamless (CDS), hot finished seamless (HFS), and welded tube from raw material purchase to production and product shipping. They are visually inspected for compliance with ASTM, ASME, DIN, EN and JIS codes and standards. We can also designate certified official testing agencies upon customer request so that they can witness the product's material, size and quality compliance reports.
Marking & Packing
Our ASTM A213 T22 Tube is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All ASTM A213 T22 Tube are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
Supplying ASTM A213 T22 Tube to Countries -
We Export ASTM A213 T22 Tube to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East Etc.
Distributing ASTM A213 T22 Tube to Cities -
We Export ASTM A213 T22 Tube to Navi Mumbai, Indore, Baroda, Muscat, Secunderabad, Gimhae-si, Kanpur, Colombo, Kuala Lumpur, Bhopal, Pimpri-Chinchwad, Rajkot, Haryana, Hanoi, Ernakulam, Chandigarh, Surat, Los Angeles, Hong Kong, Ahmedabad, Perth, Petaling Jaya, Hyderabad, Mumbai, Algiers, Edmonton, Ludhiana, Ho Chi Minh City, Karachi, Bangkok, Dallas, Bengaluru, Jakarta, Granada, Seoul, Cairo, Geoje-si, Rio de Janeiro, Abu Dhabi, Port-of-Spain, Sydney, London, Courbevoie, Vung Tau, Sharjah, Jaipur, Lahore, Chennai, Istanbul, Lagos, Thane, Dubai, Coimbatore, La Victoria, Calgary, Jeddah, Busan, Mexico City, Al Khobar, Caracas, Singapore, Atyrau, Manama, Kolkata, Riyadh, Jamshedpur, Brisbane, Toronto, Noida, Ahvaz, Vadodara, Doha, Visakhapatnam, Ulsan, New Delhi, Gurgaon, Bogota, Howrah, Moscow, Nashik, Ranchi, Nagpur, Al Jubail, Houston, Milan, Chiyoda, Aberdeen, Melbourne, New York, Dammam, Montreal, Santiago, Kuwait City, Pune, Tehran, Thiruvananthapuram, Faridabad, Madrid, Ankara Etc.
