Trusted Supplier of Stainless Steel Foundations Bolts in India, Buy High Tensile Foundation Bolts at factory price in Mumbai, Check Grade B7 Foundation Bolt, Plate Foundations Bolts, J Type Foundations Bolts Dimension Standards

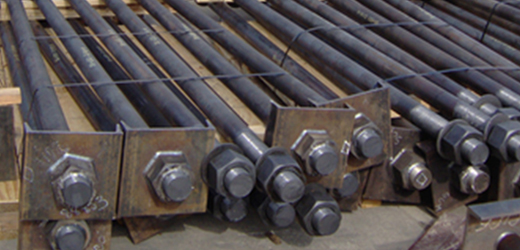

Foundation Bolts Specification
Stud Bolt size | M02 to M33, Custom Sizes |
---|---|
Stud Bolts Length | 3 mm to 200 mm |
Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
Certification | Dual Certified As per ASTM & ASME Codes |
Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
Surface Coating |
Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Stud Bolts finishing |
Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Foundation Bolts Sizes & Standards
Standards | Sizes |
---|---|
ASME B18.2.1 Foundation Bolts | 3/8 inch to 3 inch |
BS 1769 Foundation Bolts | ½ inch to 2 inch |
ASME B18.2.3.6M Foundation Bolts | M12 to M36 |
ASME B18.2.3.7M Foundation Bolts | M16 to M36 |
DIN 6914 Foundation Bolts | M12 to M36 |
ISO 7412 Foundation Bolts | M12 to M36 |
UNI 5712 Anchor Bolts | M12 to M36 |
DIN-EN 14399-4 Anchor Bolts | M12 to M36 |
Foundation Bolts Materials / Grades & Sizes
Materials | Grades |
---|---|
Stainless Steel | ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L . |
Duplex Steel | UNS NO S 31803, S 32205, S 32550, S 32750, S 32760. |
Carbon Steel | ASTM / ASME A 335 GRP 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91 |
Alloys Steel | ASTM / ASME A/SA 193 / 194 – B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
Foundation Bolt Chemical Composition
Foundation Bolt Manufacturer and Foundation Bolt Supplier both agree that the chemical composition of bolts might vary significantly depending on the application. Foundation Bolts are often produced from a mix of components, such as high-grade alloy steel, that are carefully chosen to achieve the appropriate strength, durability, and corrosion resistance.
Foundation Bolt Material | Chemical Composition |
---|---|
Carbon Steel | Iron (Fe), Carbon (C), Manganese (Mn), Phosphorus (P), Sulfur (S), Silicon (Si) |
Stainless Steel | Iron (Fe), Carbon (C), Chromium (Cr), Nickel (Ni), Molybdenum (Mo), and other alloying elements |
Foundation Bolt Mechanical Properties
Foundation Bolt Mechanical Properties are highly appreciated in a variety of sectors, including chemical, oil & gas, pulp and paper. Strength and toughness are two of the features that make Foundation Bolt highly resistant to corrosion and other sorts of harm. Foundation Bolt Manufacturers and Suppliers play an important role in ensuring that these mechanical qualities are properly engineered and maintained throughout the production process.
Foundation Bolt Material | Tensile Strength (psi) | Yield Strength (psi) | Elongation at Break |
---|---|---|---|
Carbon Steel | 60,000 - 100,000 | 36,000 - 60,000 | 18% - 30% |
Stainless Steel | 70,000 - 100,000 | 30,000 - 45,000 | 50% - 60% |
Foundation Bolt Manufacturer Supplier
We are a manufacturer provider of nuts and bolts, and our items are shipped all over the world. We make certain that our clients' needs are addressed. We manufacture high-quality foundation bolts.
- As Per ASTM F1554 Grade 36 & IS 2062
- Grade MS, EN8, Finishing Auto Black, Zinc Plated & Hot Dipped Galvanized.
- Use in PEB Buildings, Structure Foundation, Poles Erection Etc.
Foundation Bolts Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
