Stainless Steel Orifice Plate Supplier in Australia, Concentric Orifice Plates Manufacturer in India, Eccentric Orifice Plate Exporter in Singapore, Inconel Orifice Plate, High Quality Orifice Plate, Industrial Orifice Plates, Brass Orifice Plate, Alloy 20 Orifice Plate Supplier, Orifice Plate Manufactures in Mumbai India.
Hex Bolts Specification
Orifice Plate Specification | ASTM A240 / ASME SA240, ASTM A516 Grade 70 / ASME SA516 Grade 70, ASTM A36 / ASME SA36, IS: 2062 |
Orifice Plate Manufacturing Process | CNC Cutting / Machining / Forging |
Orifice Plate Outer Diameter | 1/2" NB TO 24" NB |
Orifice Plate Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
Orifice Plate Facing Bore | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Concentric, Bevel |
Orifice Plate Dimension | ASME B16.5, ASME B16.48, ISA RP 3.2 , DIN 1952 , BS 1042, ISO-5167, AGA 3, API 14.3, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631-2638, DIN 2573-2576, DIN 2527, DIN 2641-2642, DIN 2565-2566, DIN2502, AWWA, ASTM, AS2129 TABLE C, D, E, F, J etc.. |
Orifice Plate Edges Types | Square Edge and Bevel Edge |
Orifice Plate Types | Restriction Orifice Plate, Paddle Type Orifice Plate, Paddle Blank and Spacer, Ring Type Integral Orifice Plate, Concentric Bore Orifice Plate, Eccentric Bore Orifice Plate, Segmental Orifice Plate, Quadrant Orifice Plate etc. |
Orifice Plate Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, Magnetic Particle, PMI etc. |
Orifice Plate Value Added Services | As per Custom Drawing, Supplied Bolts, Studs, Gasket and Flanges. |
Orifice Plate Packaging | Carrate / Wooden Pallet / Wooden box-a |
Orifice Plate Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Orifice Plate Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Orifice Plates Materials / Grades & Sizes
Materials | Grades |
---|---|
Stainless Steel | ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L . |
Duplex Steel | UNS NO S 31803, S 32205, S 32550, S 32750, S 32760. |
Carbon Steel | ASTM / ASME A 335 GRP 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91 |
Alloys Steel | ASTM / ASME A/SA 193 / 194 – B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
Different Types of Orifice Plates

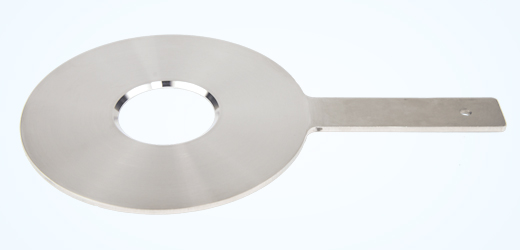

Concentric Orifice Plates
The most typical application for these is flow measuring. This offers unique qualities including straightforward constructions, excellent precision, and simplicity in installation and repair. For clean liquids, gases, and steam movement, these plates are advised when the Reynold number is between 10,000 and 107.
Quadrant Egde Orifice Plate
This orifice plate's bore's intake edge is shaped to a quarter circle. Typically, viscous fluids with Reynolds numbers between 1500 and 10,000 are employed with this orifice plate.
Conical Enterance Orifice Plate
This plate's intake edge bore has a conical form. This plate can handle fluids with Reynolds numbers ranging from 80 to 1500 that are quite viscous.
Eccentric Orifice Plate
This orifice plate is utilised with its eccentric bore bottom flush with the bottom of the piping's inner surface for liquids that include solid particles that are prone to sediment and for vapours that are likely to deposit water condensate in order to prevent the sedimentation of such inclusions. Similarly, to prevent the retention of gas or vapour in the area, it may be fitted with the eccentric bore top flush with the ID of the pipe for gases or vapours.
Segmental Orifice Plate
Segmental orifice plates work best when there is significant entrained air or water as well as when there is fluid suspension. By doing this, buildup in front of the orifice plate is prevented. For gas service, the orifice hole is located at the bottom, whereas the top is used for liquids.
Orifice with RTJ Holder
When using an orifice plate at a high pressure and high temperature, an RTJ holder with plate is employed. RTJ gaskets are used for leak protection when standard gaskets cannot be utilised because of increased pressure and temperature.
These come in either octal or oval forms. With the aid of screws, the universal type orifice plate is attached to the RTJ holder. The material for the RTJ holder is chosen such that it will be softer than the flange. The plate's composition will follow the demands of the procedure.
Orifice Plate with Carrier Ring
When drilling taps on flanges is not an option, carrier ring type architecture is employed to permit pressure taps. Under 2" line size, this structure is employed, although it is not constrained. Male-female type OR one-piece construction are both options for carrier rings. When direct installation of the DPT is necessary, one piece fabrication is employed. Single piece carriers are cheaper even for larger capacities.
Restriction Orifice Plate
Fluid pressure is reduced by using restriction orifice plates. Single stage limitation occurs when the requisite pressure is decreased using only one plate. This plate is identical to the Square edged Concentric plate, except that no restriction orifice bevel is supplied. Because the goal is to lower the pressure, not to minimise pressure loss. The needed pressure drop across the plate is used to compute the plate thickness
Orifice Plates Application
- Oil and Gas equipments
- Offshore Technology
- Seawater Desalination Plants
- Chemical Industry
- Airport, Malls, Buildings
- Storage Tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, Reactor tanks
- Rotors, impellers and shafts
- Power Plants
- Petrochemical
- Shipbuilding Industry
- Mining Industry
- Food Equipments Industry
