Inconel 600 Fittings are made up of a Nickel Alloy chromium alloy that has 72% nickel and 14% chromium minimum in the composition with carbon, manganese, silicon, sulfur, copper and iron. .
Valour Alloys Inc. is a leading manufacturer and supplier of these Inconel 600 fittings. The fittings are available in various types, sizes and thicknesses Alloy 600 Elbow or 45 Degree Elbow and ASTM B366 UNS N06600 Tee, Cap, Reducer manufacturer in India
Valour Alloys Inc., we carry a full inventory and Supply Inconel 600 Buttweld Pipe Fittings products in a variety of sizes widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability. Inconel 600 Buttweld Pipe Fittings is a high-temperature and corrosion-resistant nickel-chromium alloy that is often used in demanding industrial applications, such as those in the aerospace, chemical processing, and nuclear industries. Inconel Pipe Fittings manufacturer in India would recommend using grade 600 for the multiple set of properties it offers. The alloy has a high tensile and yield strength, making it useful in highly stressful operations. ASTM B366 UNS N06600 elbows are corrosion resistant. Using these components will extend the life of your application.

Inconel 600 Buttweld Fittings Manufacturer

Inconel 600 Buttweld Fittings Exporter
Top Benefits of Using Inconel 600 Pipe Fittings in Harsh Environments
Valour Alloys Inc. explain here the multiple benefits of Using
Inconel 600 Pipe Fittings in Harsh Environments do you know how many benefits we get using Inconel 600 Pipe Fittings? Such as High-Temperature Tolerance, Outstanding Strength and Durability, Versatility in Chemical Environments, Ease of Fabrication and Welding, Extended Service Life, Compliance with Industry Standards, Sustainability and Recyclability. These benefits make Inconel 600 pipe fittings a go-to choice for industries that demand performance and reliability in challenging conditions.
When we talk about the High-Temperature Tolerance of Inconel 600 Pipe Fitting it easily maintains structural integrity as well as mechanical properties at elevated temperatures. Outstanding Strength and Durability, it provides sufficient tensile strength and toughness with long-term uses of Inconel 600 Pipe Tube Fitting with maintenance or replacement. Inconel 600 Pipe Fitting is most popular for the Ease of Fabrication and Welding into complex shapes and designs suitable with standard welding techniques as well as Recyclable of Inconel 600 Pipe Fitting and contributing to environmentally friendly industrial practices.
When Should You Use Inconel 600 Pipe Fittings?
Why Engineering Companies use Inconel 600 Pipe Fitting for their multiple industries' applications? because Inconel 600 Pipe Fittings come with an excellent choice for applications that provide superior performance in challenging conditions. There are some essential points we explain below.
when talking about High-Temperature Applications it operates at temperatures up to
2000°F (1093°C) for heat exchangers, boilers, and gas turbines. Cryogenic Temperatures are known for extremely low temperatures, maintaining toughness and strength Cryogenic Temperatures are mostly used in cryogenic storage tanks as well as piping systems also. Inconel 600 Pipe Fitting is known for the Stress Corrosion Cracking Risk When dealing with chloride-rich environments where stress corrosion cracking is a concern and it is suitable for every marine and cooling system application.
Versatility Across Various Industries and Applications
Inconel 600 Pipe Fittings are widely used in construction and other structural applications Many Industries use Inconel materials for their production of 600 Pipe Fittings products used in Major industries such as the Chemical Processing Industry, Aerospace Industry, Power Generation, Marine Industry, Oil & Gas Industry. Designed to withstand harsh environments, these Pipe Fittings are a reliable choice for industries that demand durability and efficiency there are some essential points are explained below.
- Chemical Processing Industry
- Aerospace Industry
- Power Generation
Inconel 600 Pipe Fitting Using in the Chemical Processing Industry representing Heat exchangers, reactors, and condensers. In the Aerospace Industry, Inconel 600 Pipe Fitting play a major role in Jet engines, exhaust systems, and turbine components also we gets the benefits from withstanding extreme temperatures and stress. when we talk about the Power Generation industries Inconel 600 Pipe Fitting is used for Steam generators, boilers, and nuclear reactors. Inconel 600 Pipe Fittings are the most useable and suitable for every demanding industrial application, ensuring performance, safety, and cost-efficiency.
Cost-Effectiveness and Long-Term Durability
While the initial cost of Inconel 600 pipe Tube Fitting may be higher than that of standard materials, their long-term durability and resistance to wear and corrosion make them a cost-effective solution over time. Reduced maintenance and replacement costs contribute to overall savings Investing in Inconel 600 ultimately leads to fewer disruptions in operations, enhancing productivity and ensuring that projects remain within budget.
Inconel 600 Buttweld Fittings Range
Butt Weld Tube Fitting Specification | ASTM A403/ ASTM SA403, ASTM A815 / ASME SA815, ASTM A420 / ASME SA420, ASTM A234 / ASME SA234, ASTM A860 / ASME SA860, ASTM B366 / ASME SB366, DIN 2605 Part 1 / DIN 2605 Part 2, EN10253-2 / EN10253-4 TC1 and TC2 |
Butt Weld Tube Fitting Manufacturing Process | Hot / Cold / Fabricate / Seamless / Welded / Induction |
Butt Weld Tube Fitting Other Grades | Stainless Steel - 304, 304L, 304H, 310s, 316, 316L, 317L, 321, 347, 904L, 410, 446 etc. Carbon Steel - WPB, WPC, WPL6, WPHY42, WPHY46, WPHY52, WPHY56, WPHY60, WPHY65 etc. Alloy Steel - WP5, WP9, WP11, WP22, WP91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel Alloy - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, UNS N08020, UNS N031254 etc. EN / DIN P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44) X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10 P215NL (TTST35N/V), 12Ni14 (10Ni14) P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2, L290NB (STE 290.7), L360NB (STE 360.7) 1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878,, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910 |
Butt Weld Fittings Outer Diameter | 1/2" NB TO 48" NB |
Butt Weld Fittings Wall Thickness or Schedule | Sch 10s to Sch XXS or As Per Custom Requirement |

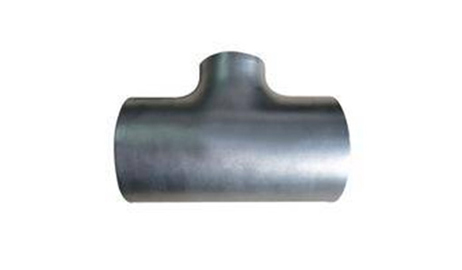

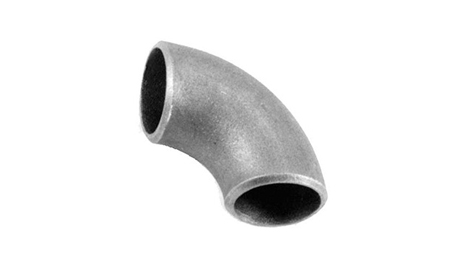

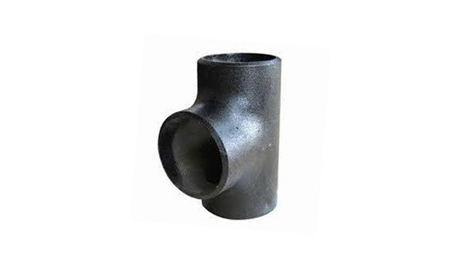

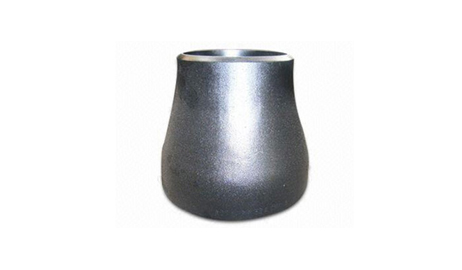

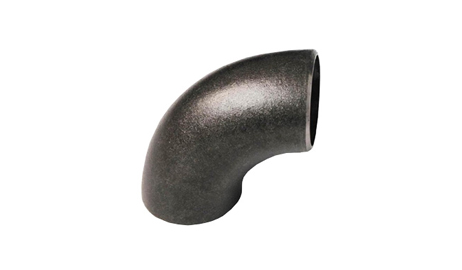

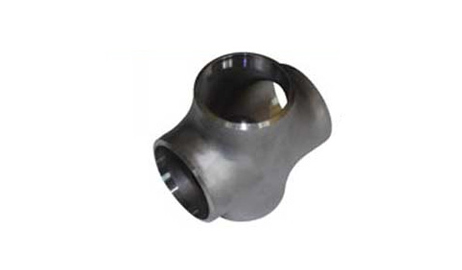

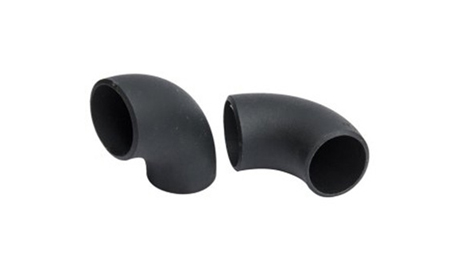

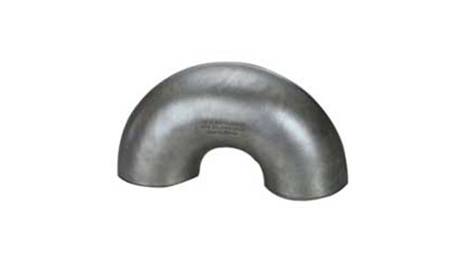

Butt Weld Fittings Types | 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow, LR Elbow (Long Radius Elbow), SR Elbow ( Short Radius Elbow), Equal Tee, Reducing / Unequal Tee, Concentric Reducer, Eccentric Reducer, End Cap, Long Stub End, Short Stub End, Lap Joint Stub End, Equal Cross, Reducing / Unequal Cross, Seamless Fittings, Welded Fittings, 1.5D, 3D, 5D etc. |
Butt Weld Fittings Dimension | ASME 16.9 - Factory-Made Wrought Buttwelding Fittings ASME B16.28 - Wrought Stainless Steel Buttwelding Short Radius Elbow and Returns MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Butt Weld Fittings Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
Butt Weld Fittings Packaging | Carrate / Wooden Pallet / Wooden Box |
Butt Weld Fittings Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Butt Weld Fittings Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Inconel 600 Buttweld Fittingsand
Tube Fitting
Seamless/ Welded 100% Radiography Tested
Products | Size | |

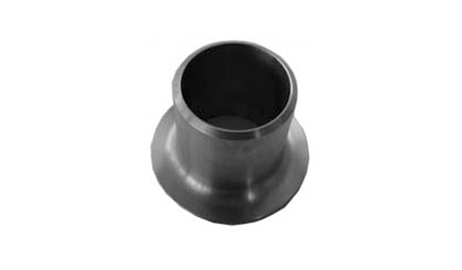

Inconel 600 Buttweld Fittings Elbow – Long Radius | Inconel 600 Buttweld Fittings Stub Ends | Sizes 1/2″ – 24″ |
Inconel 600 Buttweld Fittings Elbow – Short Radius | Inconel 600 Buttweld Fittings Cross | |
Inconel 600 Buttweld Fittings Reducing Elbow | Inconel 600 Buttweld Fittings Reducing Cross | |

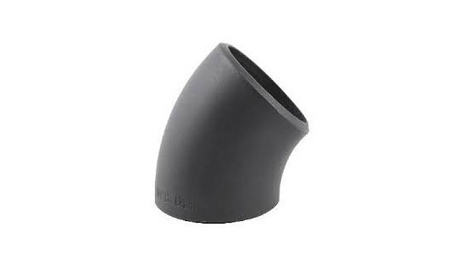

Inconel 600 Buttweld Fittings 45° Elbow | Inconel 600 Buttweld Fittings Tees | |

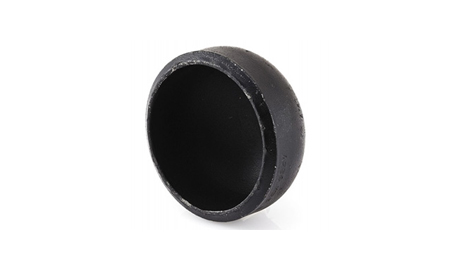

Inconel 600 Buttweld Fittings Fabricated Tee | Inconel 600 Buttweld Fittings End Cap | |
Inconel 600 Buttweld Fittings Reducer | Inconel 600 Buttweld Fittings Seamless Fittings | |
Inconel 600 Buttweld Fittings Concentric Reducer | Inconel 600 Buttweld Fittings Pipe Nipple | |

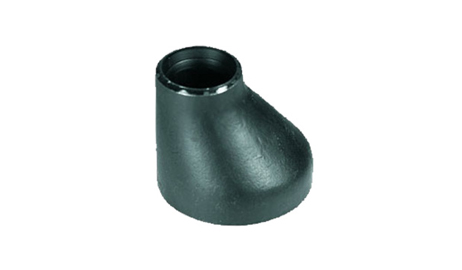

Inconel 600 Buttweld Fittings Eccentric Reducer | Inconel 600 Buttweld Fittings 5D Elbow | |
Inconel 600 Buttweld Fittings 3D Elbow | Inconel 600 Buttweld Fittings Welded Pipe Fitting |
Types Of Grade Inconel 600 Pipe Fitting
Chemical Composition of Inconel 600 Pipe Fitting
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel 600 Buttweld Fittings
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Equivalent Grade of Inconel 600 Pipe Fitting
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Other Available Products Of Inconel 600 Pipe Fitting
Inconel 600 Pipe Tube Fitting | Inconel 601 Buttweld Pipe Fittings |
Inconel 625 Seamless Pipe Fittings | Inconel 600 Welded Pipe Fittings |
Inconel B366 601 Pipe Elbow | Inconel Alloy 625 Buttweld Tee |
Inconel 718 Buttweld Reducer Suppliers | ANSI 625 Inconel Pipe Fittings |
Inconel UNS N06600 Stubends Dealer | ASTM B366 Inconel Pipe Fittings Exporter |
Inconel Alloy Butt weld Fittings Stockholder | Inconel UNS N06601 Pipe End Cap Distributors |
Inconel 718 45deg.Elbow | B366 Inconel 90deg. LR Elbow Manufacturer |
Inconel DIN 2.4816 Pipe Tee | Inconel ASTM B366 625 Cross |
Inconel DIN 2.4851 Buttweld Reducing Nipple | Inconel Alloy 601 Short Radius Elbow |
ANSI B16.9 Inconel UNS N06625 Buttweld Fitting | DIN 2.4856 Inconel End Pipe Cap Stockist |
ASTM B366 Inconel UNS N07718 Welded Pipe Fittings | Inconel DIN 2.4668 Pipe Fitting |
Test Certificates
We Inconel 600 Pipe Fittings with the following details Mill Test Certificate according to EN 10204 3.1, PMI Test, Test Report from NABL Approved Lab, 3.2 Certification by External Testing Authority third, ultrasonic test report, and X-ray report.
Marking & Packing
Our Inconel 600 Pipe Fittings is packaged to ensure no damage during transit. In the case of export, the standard export packing is in a wooden box. All Inconel 600 Pipe Fitting are marked with our grade, batch number, size and mark. We can also do custom branding on our products as per buyer's unique requirements
